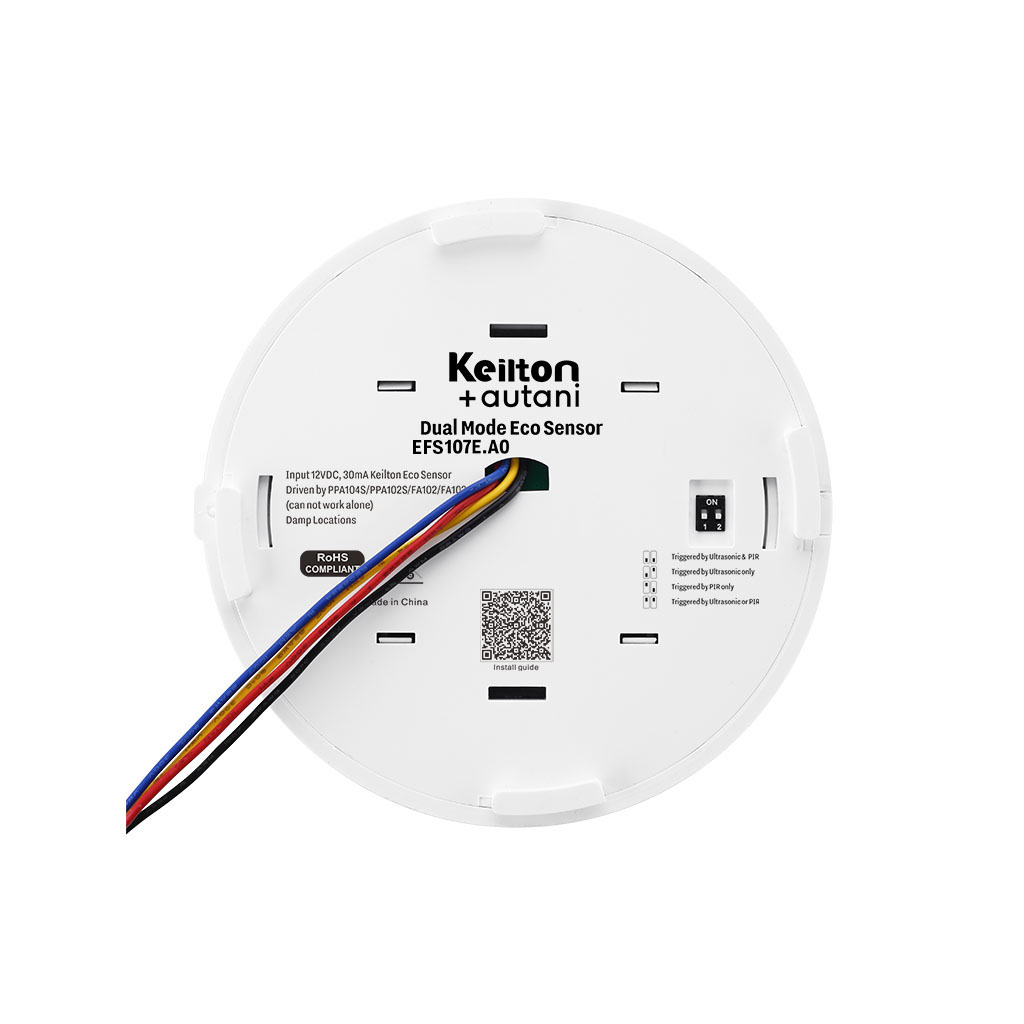

EFS107E.A0

12V Dual-Tech Ceiling Eco Sensor

Product Documents

Features & Benefits

  • 12VDC input
  • Powered by power packs (PPA102Sx/PPA104Sx) and connected with low voltage cable
  • 600 sq ft room coverage
  • Daylight Harvesting
  • Dual-tech PIR + Ultrasonic technology provides high accuracy and wide coverage

Specifications

Part Number

EFS107E

aaa

aaa

Component type

Sensor

bbb

bbb

Operating Temp

-30 to 55°C (-22°F to 131°F)

Technology

N/A

Range

N/A

Input voltage

12V

Aux voltage

N/A

Control

TTL

Dimmability

N/A

Ip rating

IP20

Color offering

White

Mounting options

Ceiling Mount

Mouting height

20ft

Sensor type

Daylight Harvesting, Dual Technology, PIR, Ultrasonic

Warranty

5 year limited warranty

Certification

TAA-Compliant, RoHs
