Estimated Total Savings: 20-40%

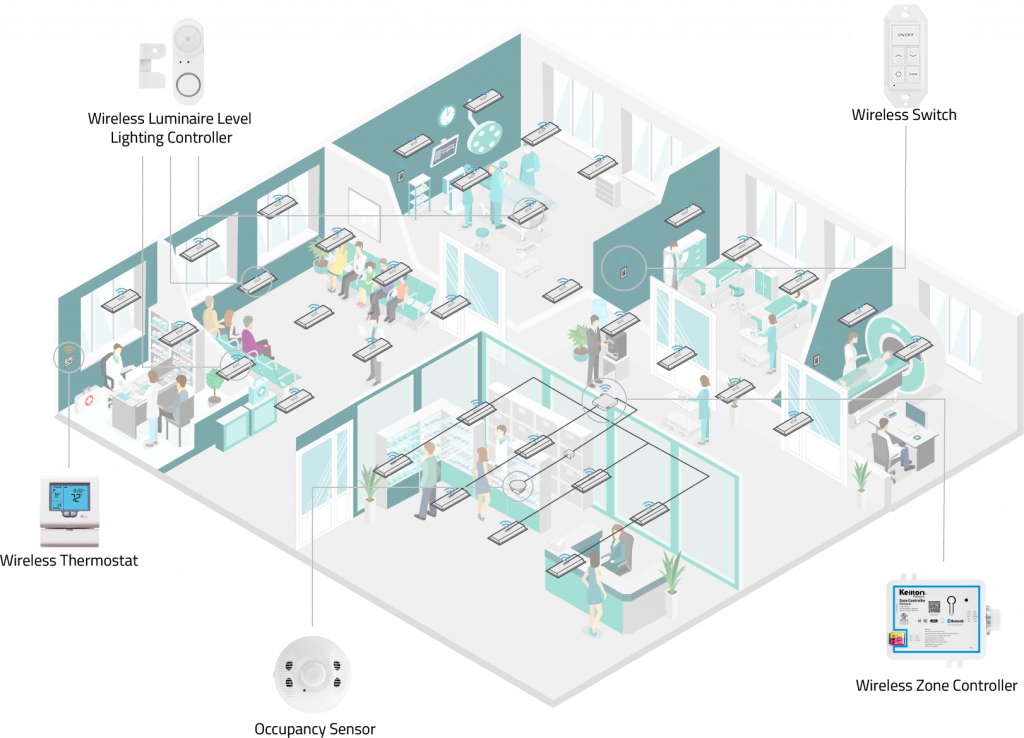

Autani’s wireless controls can be pre-installed on fixtures and will not require additional conduits to be run through spaces, which is particularly important for operating healthcare facilities. Since Autani offers a variety of zone and fixture-based controllers, the solution can be tailored to the space to minimize installation time and disruption to adjoining areas within the facility.
Product Recommendations
PPA104S.B1 Line Voltage 20A Bluetooth Zone Control
• 120-277VAC input
• Integrated 20A relay
• Output power up to 2,400W (120VAC), 5,540W (277VAC)
• UL Plenum Rated
• 1 HP motor load rated
T32P Wireless Thermostat
Centrally controlled and locally integrated with occupancy sensors. Master schedules can be pushed facility-wide or to target thermostats.
WP1025.B1 (5 Button) Battery-Powered Bluetooth Wall Switch
• Quick push-button control of Keilton+autani devices via Bluetooth
• Powered by a single CR2032 battery
• Approximately 10 years battery life
• Can be wall-mounted or used as a portable remote controller
• Can be linked to a light or light group via the Keilton+autani app
IFS108-N.A0 Clip-Mount Panel Sensor
• Clip-mount allows sensor to attach to luminaire housing
• 12V sensor with oval shape is the ideal form factor for panels
• Bluetooth PIR analog sensor with Algo2 algorithm to maximize detection without false trigger
• Allows existing panel and downlight luminaires to upgrade
to luminaire level lighting control (LLLC)
• Daylight Harvesting
EFS107E.A0 12V Dual-Tech Ceiling Eco Sensor
• 12VDC input
• Powered by power packs (PPA102Sx/PPA104Sx) and connected with low voltage cable
• 600 sq ft room coverage
• Daylight Harvesting
• Dual-tech PIR + Ultrasonic technology provides high accuracy and wide coverage
RTP – Tee Adaptor
• Connects from RJ45 to PH2.0
• Supports daisy chaining of multiple sensors
NOTE: Only 1st device in the daisy chain can be used for daylight harvesting.
Control Strategies
Occupancy / Vacancy Sensing
Turn lights on when occupants are in a space and off when they vacate it. Alternate Functionality: Partial-on and manual-on modes are supported for additional savings and more stringent local codes.
High-End Trim / Institutional Tuning
Set the maximum light level based on customer requirements in each space to prevent overlighting.
Local Dimming Control
Permit occupants to lower the light below the high-end trim for comfort and additional savings.
Daylight Harvesting
Use dim lighting when daylight is available. Multiple zones are supported where required by code.
HVAC Control
Manage smart thermostats and sensors to implement temperature setback of HVAC equipment based upon occupancy or timeclock.
Plug Load Control
Manage control of select plug loads for Energy Code Compliance and the elimination of phantom loads when the building is not occupied.
Automatic Scheduling & Timeclock*
Automatically dim or shut off lighting based on centrally managed schedules.
* Requires Autani Manager or CR02-W.A0.
Demand Response*
Manage lighting and HVAC electrical loads to limit ratchet charges and peak demand pricing periods.
* Requires Autani Manager.
