BH4W

Twist-lock Sensor Receptacle

Product Documents

Features & Benefits

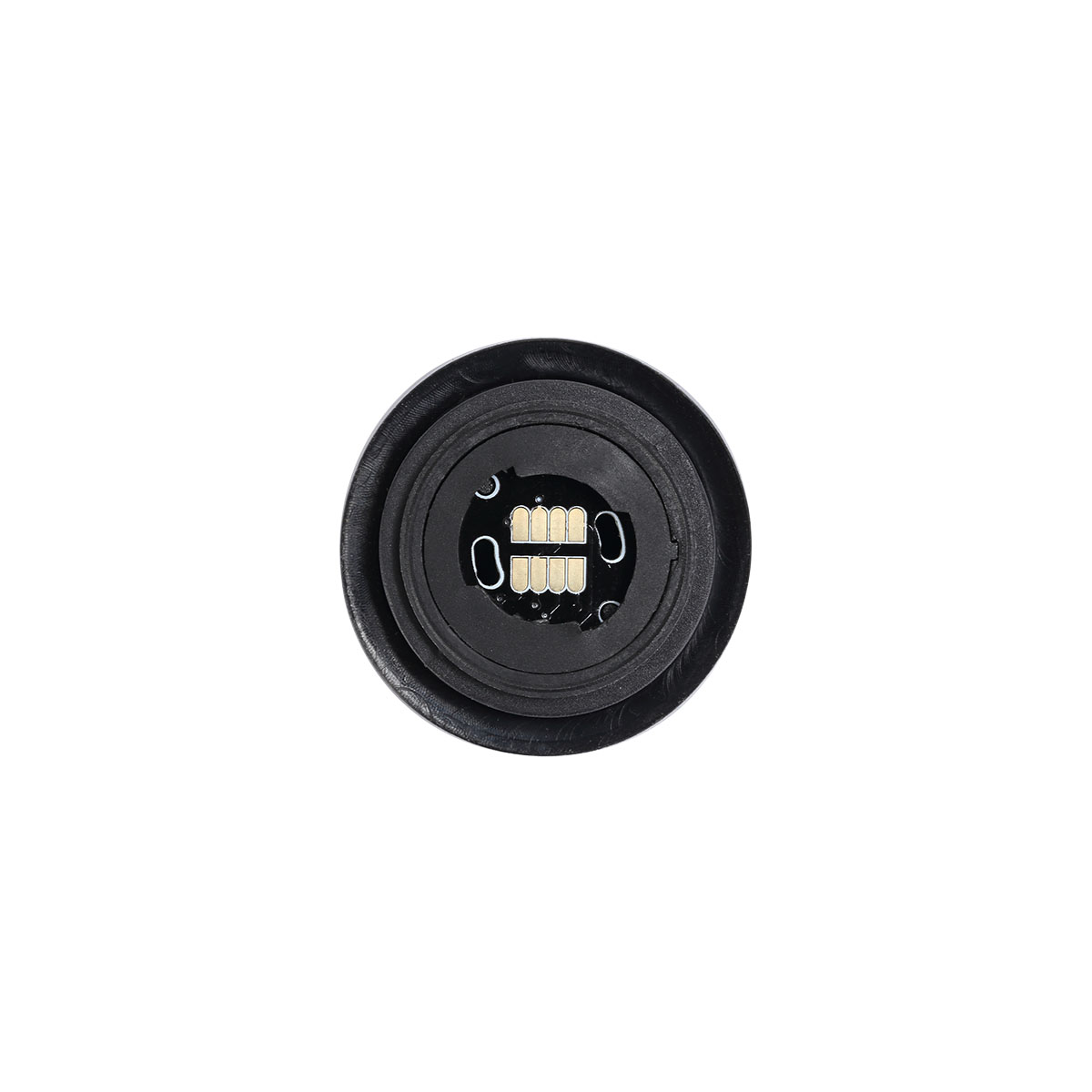

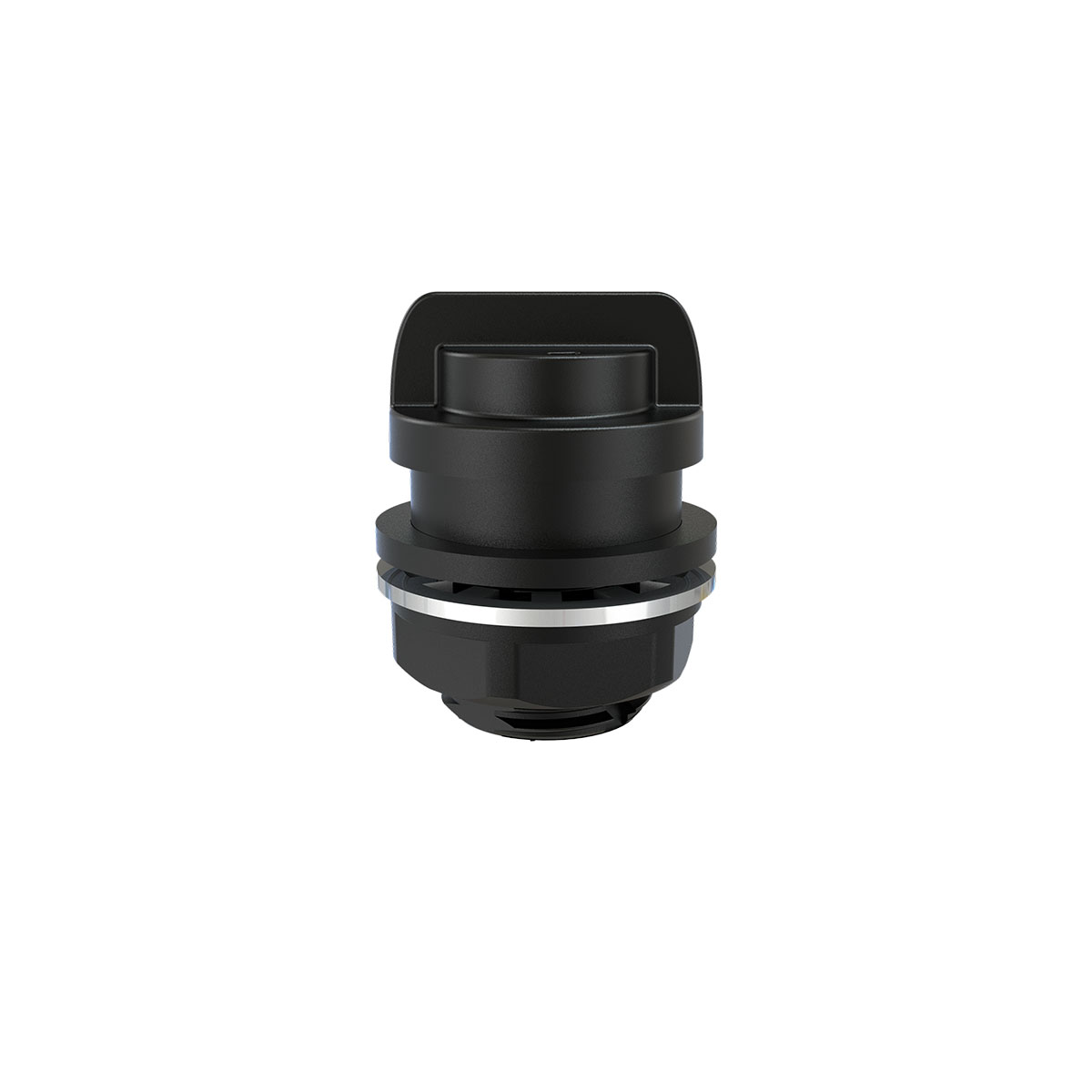

Keilton BH4 Series receptacles are 4-pin low profile components designed as connection ports for the attachment of luminaire level lighting controls (LLLC) on commercial indoor and outdoor luminaires. The receptacles provide ports on the luminaires for simple and reliable sensor and controller attachment.

  • Enables new luminaire designs for plug and play luminaire level lighting control (LLLC)
  • Low-profile design with minimal depth into housing and minimal height above luminaire
  • Waterproof version offers UV-Resistant high-impact rated covers to fully seal and protect the receptacles
  • 4-pins allow color tuning functionality

Specifications

Part Number

BH4W

aaa

aaa

Component type

Accessories

bbb

bbb

Operating Temp

-40 to 80°C (-40°F to 176°F)

Technology

N/A

Radio Frequency

N/A

Range

N/A

Input voltage

12V

Aux voltage

N/A

Dimmability

N/A

Ip rating

IP66

Color offering

Black

Mounting options

Fixture Integrated

Mouting height

N/A

Sensor type

N/A

Warranty

5 year limited warranty

Certification

RoHs
