BRLE Series

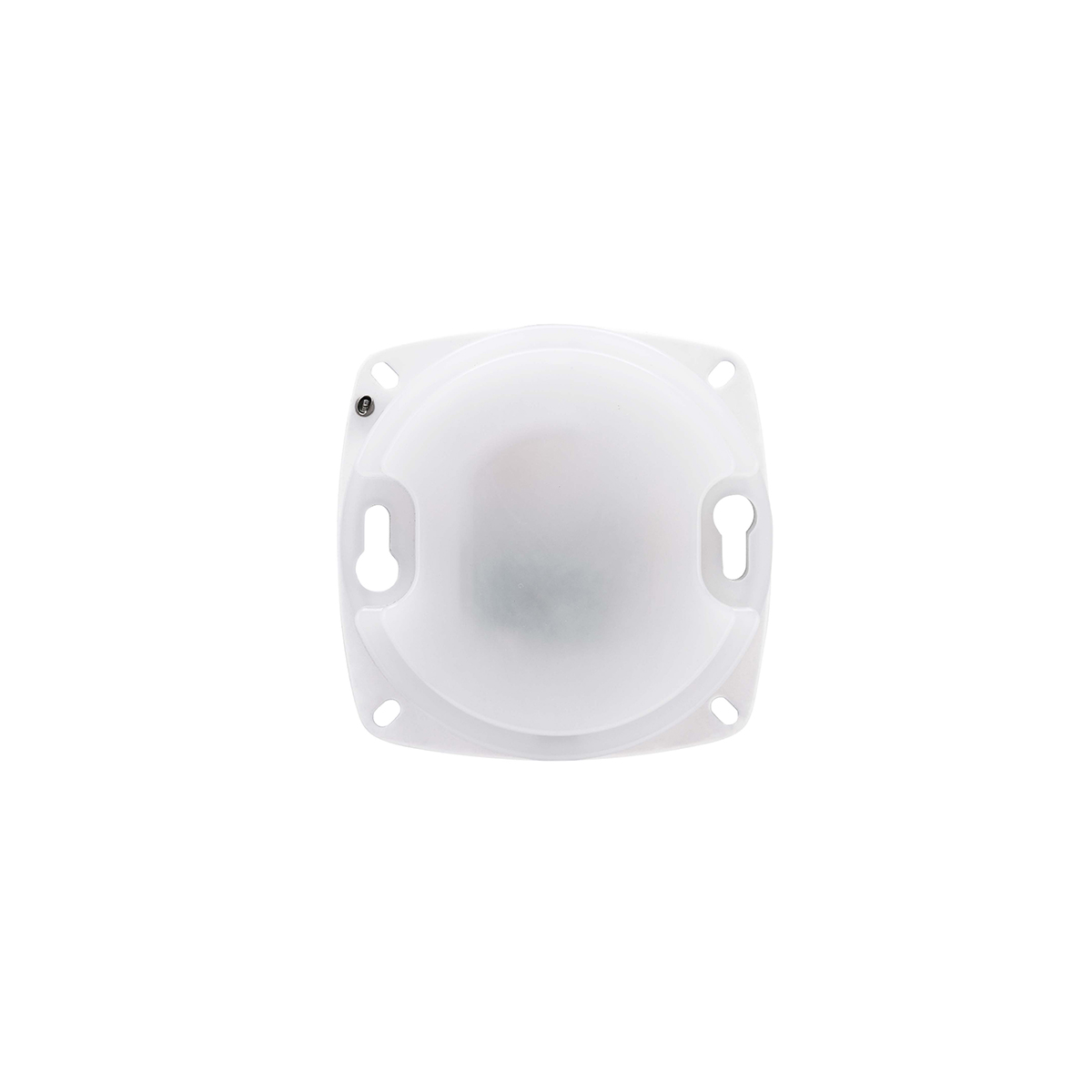

Round BT Light Engine Retrofit Kit

Product Documents

Features & Benefits

  • Wireless control via Keilton+autani app
  • Sensor-ready, available for linkage to Keilton+autani sensors
  • 120V driver-on-board design for direct line voltage connection
  • UL Classified for safe and compliant retrofit applications
  • Color-tunable white light
  • Integrated frosted glare-free UL-rated cover
  • Bluetooth mesh network 5.0
  • Innovative magnetic reset feature (magnet included)

Specifications

Input Voltage

AC120

Input Current

3inch: 0.1A, 4inch: 0.14A/0.11A, 5.5inch: 0.19A

Input Power

3inch: 10W, 4inch: 17W/13W, 5.5inch: 23W

Bluetooth Transmit

200ft Max

Radio Frequency

2.4GHz ± 75MHz

Bluetooth Version

5.0

Housing Material

UL 94-V0

Indoor/Outdoor Use

Indoor Use Only

Operating Temperature

-30°C to 45°C, -22°F to 113°F

Storage Temperature

-30°C to 85°C, -22°F to 185°F

IP Rating

IP20

Color

White

Warranty

5 year warranty

Certification

UL1598C,UL8750,UL1376,RoHS
