CS107S.A0

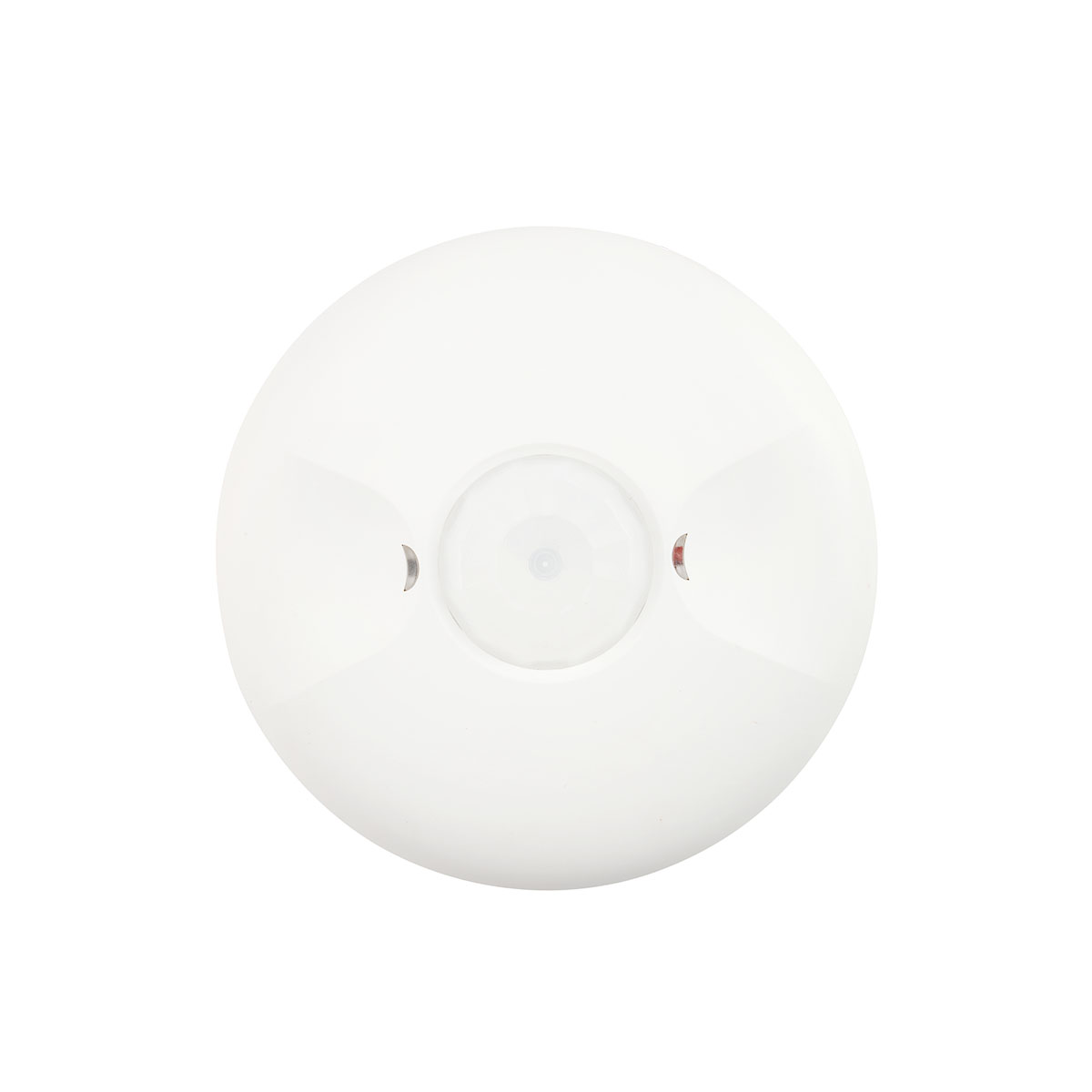

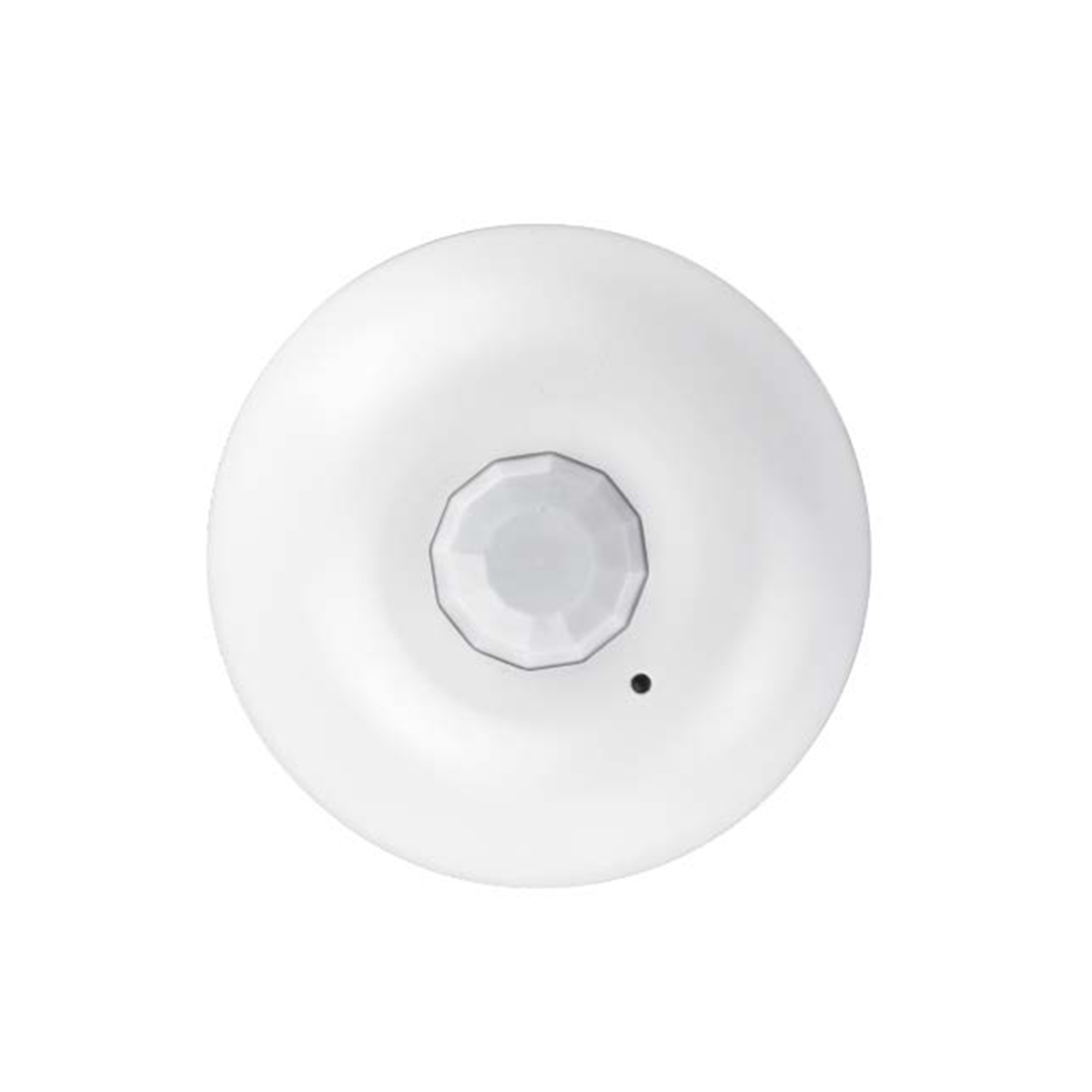

Line Voltage PIR Ceiling Sensor

Product Documents

Features & Benefits

  • 120-277VAC input
  • 600 sq ft room coverage with PIR sensing technology
  • Wireless BT connection to other Keilton+autani devices
  • Configurable for occupancy or vacancy mode

Specifications

Part Number

CS107S.A0

aaa

aaa

Component type

Sensor

bbb

bbb

Operating Temp

0 to 50°C (32°F to 131°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

100ft

Input voltage

120-277V, 120V

Aux voltage

N/A

Control

Relay

Dimmability

0-10V

Ip rating

IP20

Color offering

White

Mounting options

Ceiling Mount

Mouting height

20ft

Sensor type

PIR

Warranty

5 year limited warranty

Certification

cULus Listed, DLC listed, FCC, RoHs, UL1376 Gold
