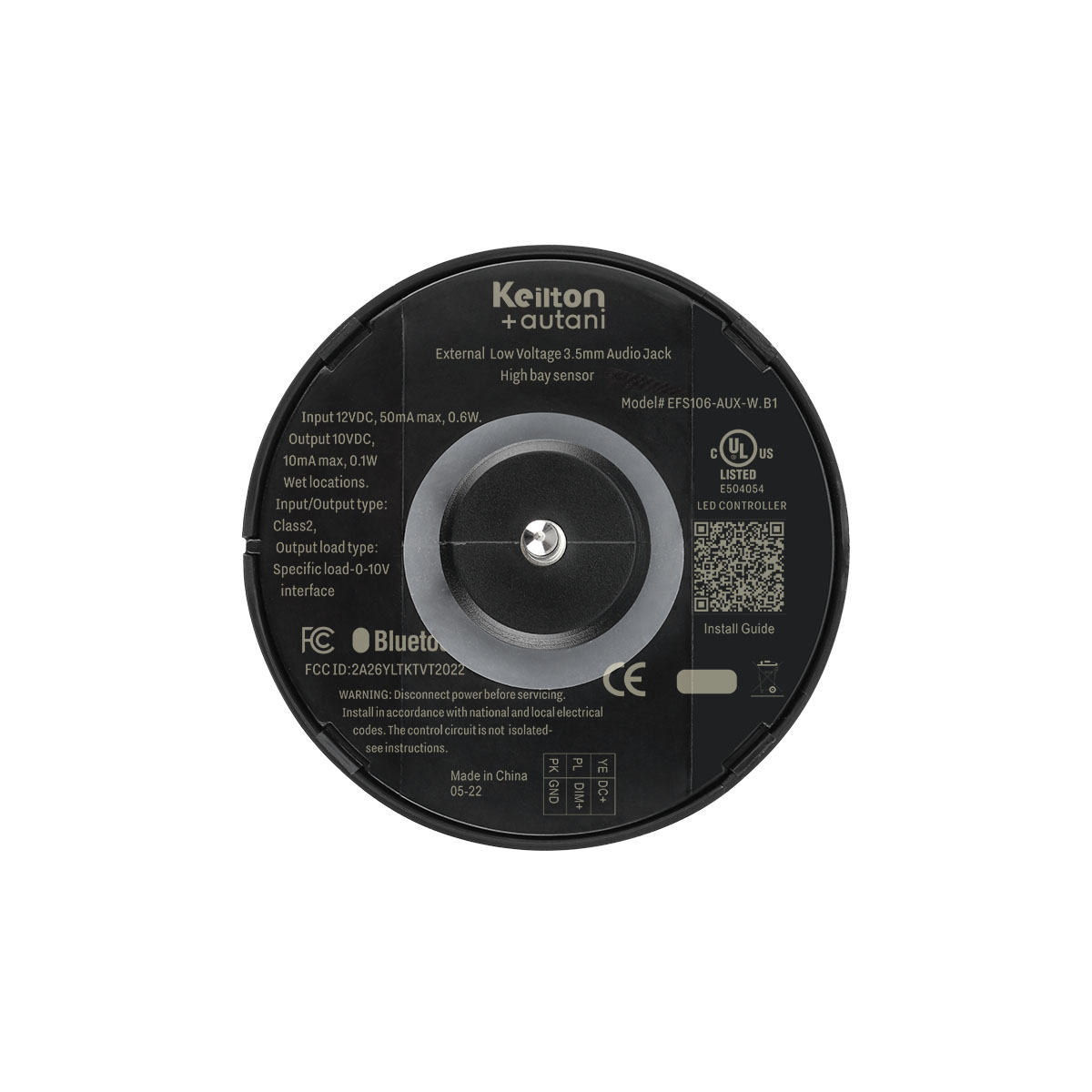

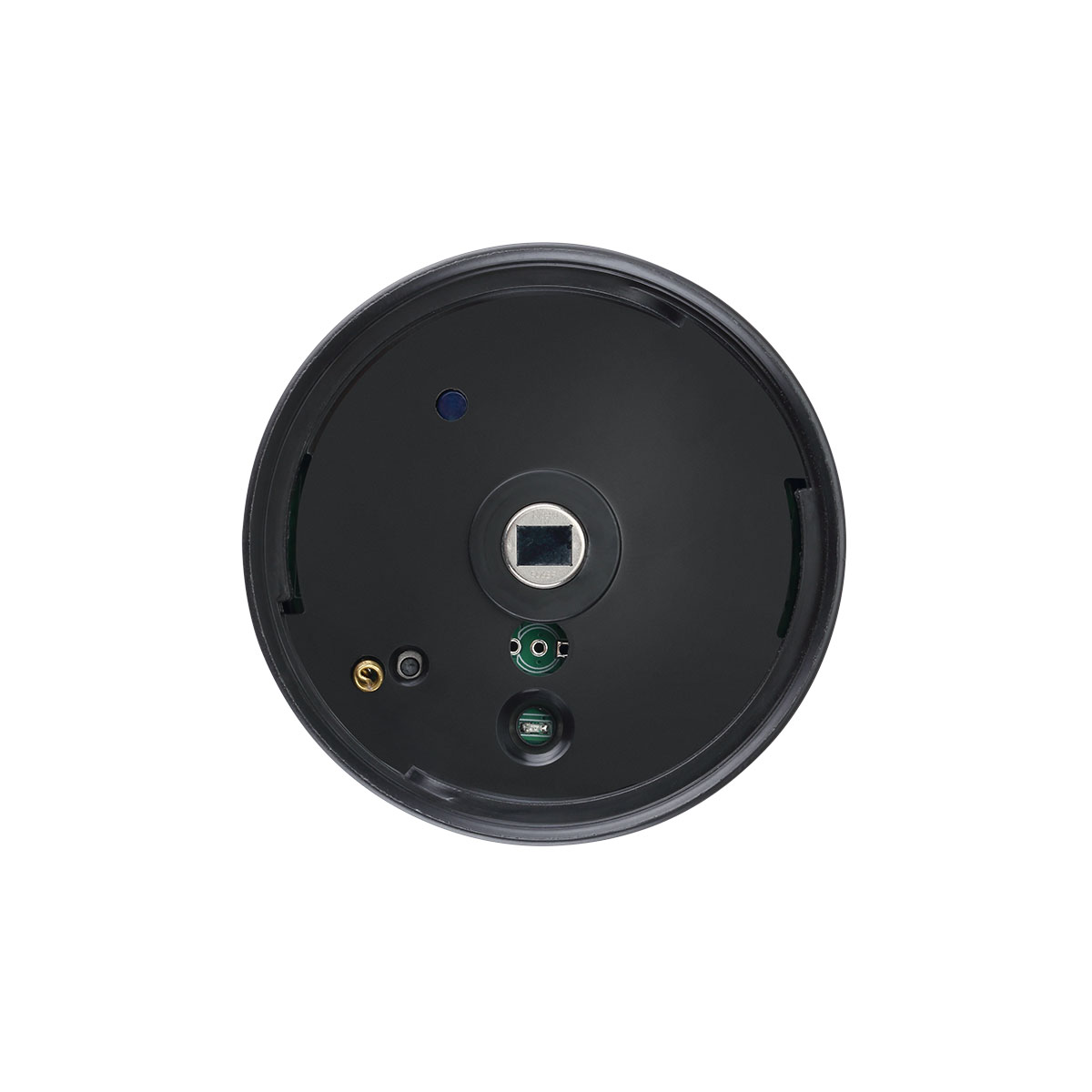

EFS106-AUX-W.B2

Plug and Play High Bay Long-Range Sensor

Product Documents

Features & Benefits

Keilton EFS106-AUX-W B2 and EFS106-Z10-W B2 sensors are designed for mating with Keilton SC01 or Zhaga receptacles to enable Bluetooth wireless luminaire level lighting control (LLLC) of commercial outdoor luminaires.

  • 3.5mm audio jack connector
  • Enhanced long-range antenna with up to 328 ft Bluetooth transmission range
  • Plug and Play 12V sensor with integrated connector
  • BT PIR analog sensor with AlgoH™ algorithm to maximize detection without false trigger
  • Replaceable lens options

Note: Lens sold separately

Specifications

Part Number

EFS106-AUX-W.B2

aaa

aaa

Component type

Sensor

bbb

bbb

Operating Temp

'-30 to 55°C (-22°F to 131°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

200ft

Input voltage

12V

Aux voltage

N/A

Control

Single 0-10V

Dimmability

0-10V

Ip rating

IP66

Color offering

Black

Mounting options

Plug and Play

Mouting height

40ft

Sensor type

Photocell Threshold on/off, PIR

Warranty

5 year limited warranty

Certification

TAA-Compliant, CE compliant, cULus Listed, DLC listed, FCC, RoHs, UL1376 Gold
