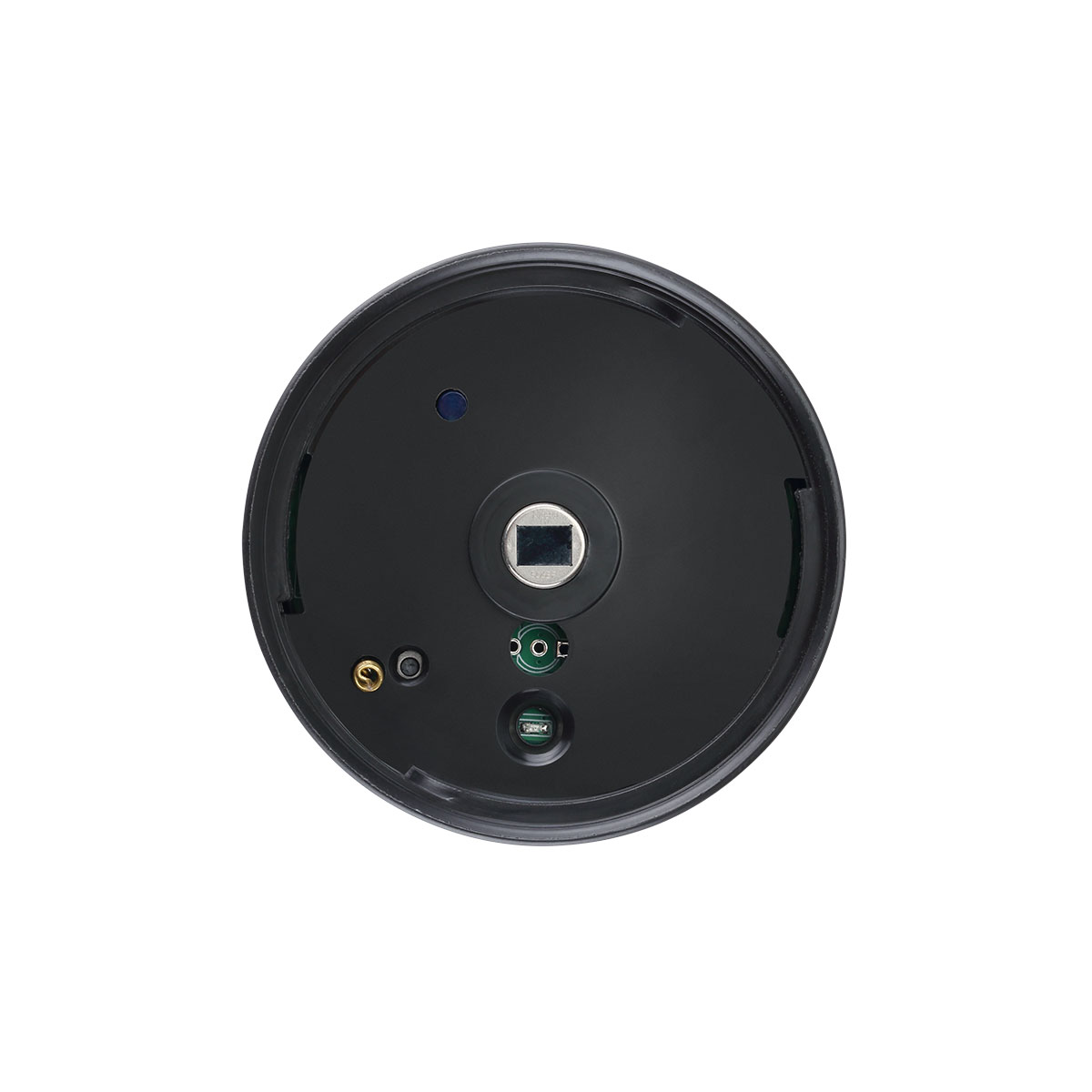

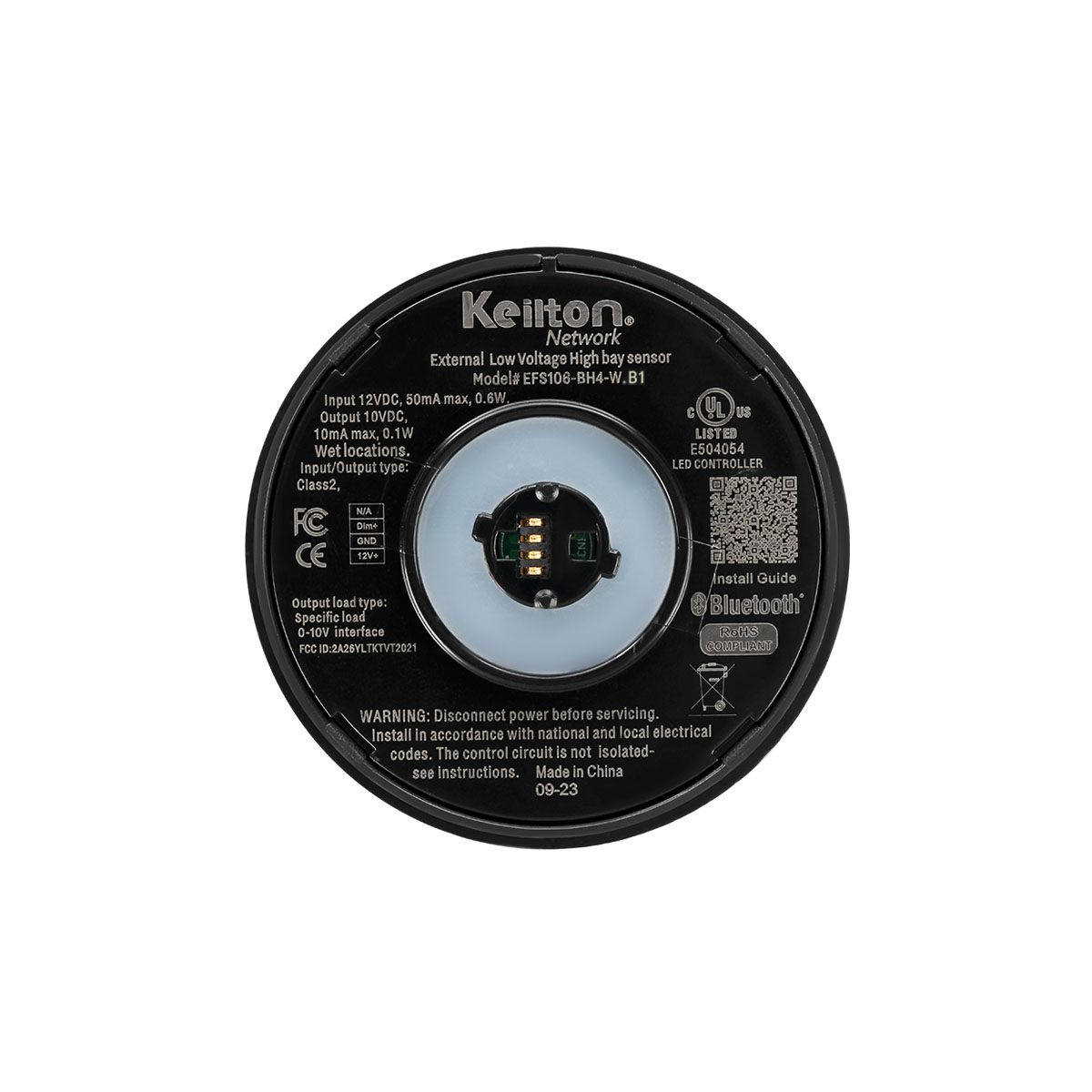

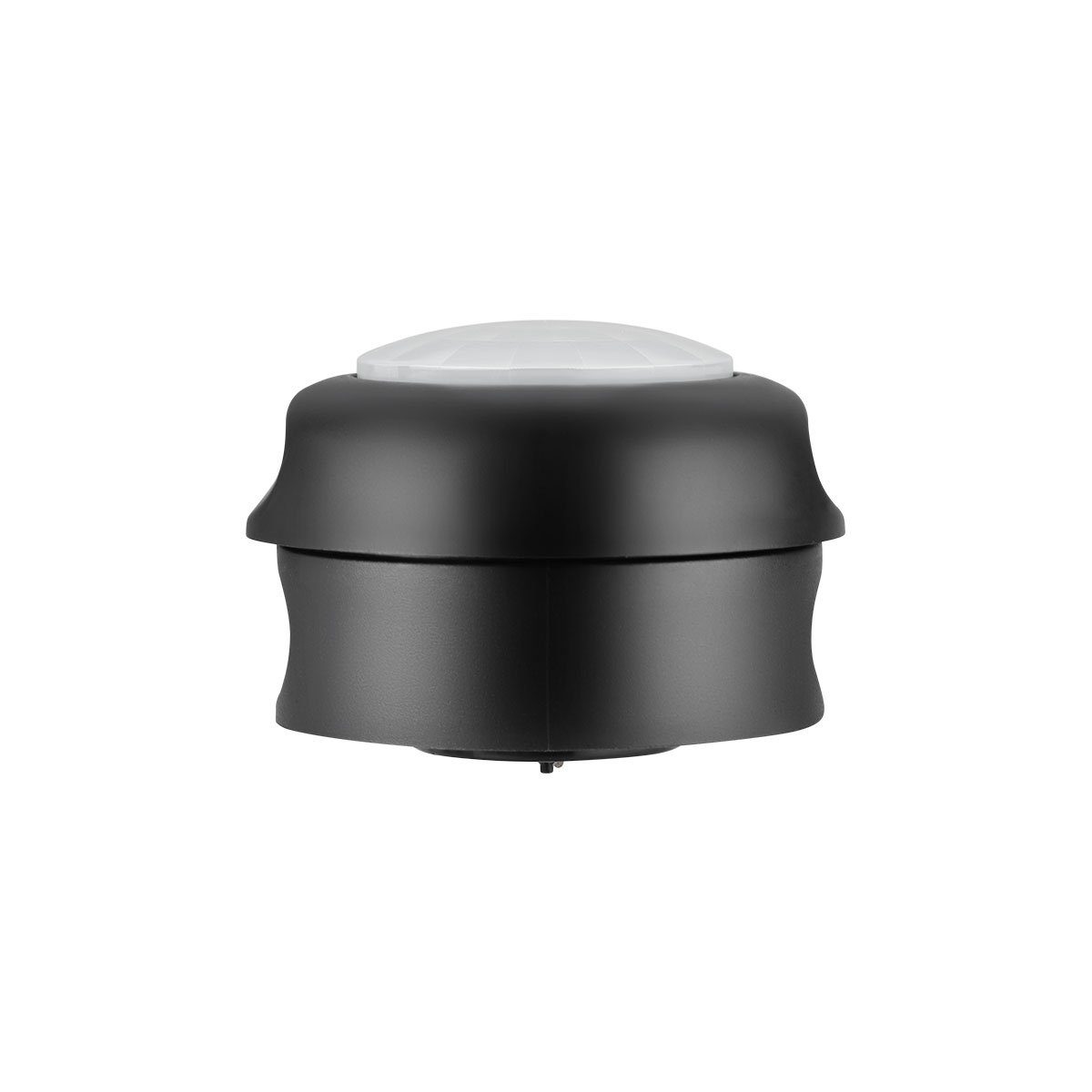

EFS106-BH4-W.B1

Plug and Play High Bay Long-Range Sensor

SKU: EFS106-BH4-W.B1 Category:

Features & Benefits

Keilton EFS106-BH4-W B1,EFS106-AUX-W B1 and EFS106-Z10-W B1 sensors are designed for mating with Keilton BH4W or SC01 or Zhaga receptacles to enable Bluetooth wireless luminaire level lighting control (LLLC) of commercial outdoor luminaires.



  • BH4 twist/lock connector
  • Enhanced long-range antenna with up to 328 ft Bluetooth transmission range
  • Plug and Play 12V sensor with integrated connector
  • BT PIR analog sensor with AlgoH™ algorithm to maximize detection without false trigger
  • Replaceable lens options



Note: Lens sold separately

Specifications

Part Number

EFS106-AUX-W.B1

aaa

aaa

Component Type

Sensor

bbb

bbb

Operating Temp

-30 to 55°C (-22°F to 131°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Transmission Range

328FT

Input Voltage

12V

Aux Voltage

n-a

Control Output

Single 0–10V

Dimmability

0–10V

IP Rating

IP66

Color Offering

Black

Mounting Options

Surface

Mounting Height

40FT

Application

Outdoor

Sensor Type

Daylighting, PIR

Warranty

5 year limited warranty

Certification

FCC Compliant, CE Compliant, cULus Listed, DLC Listed, RoHS Compliant, UL 1376 Gold
