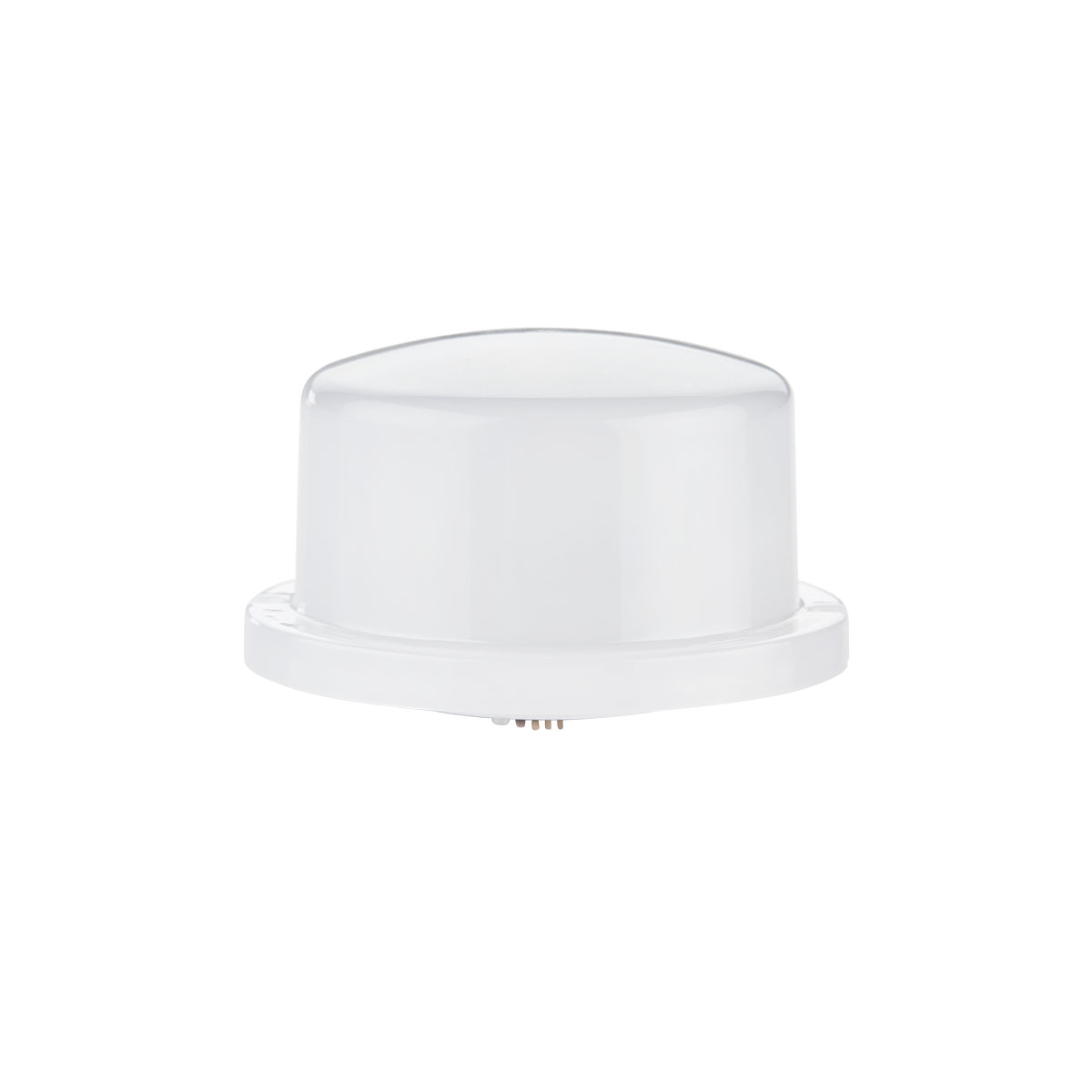

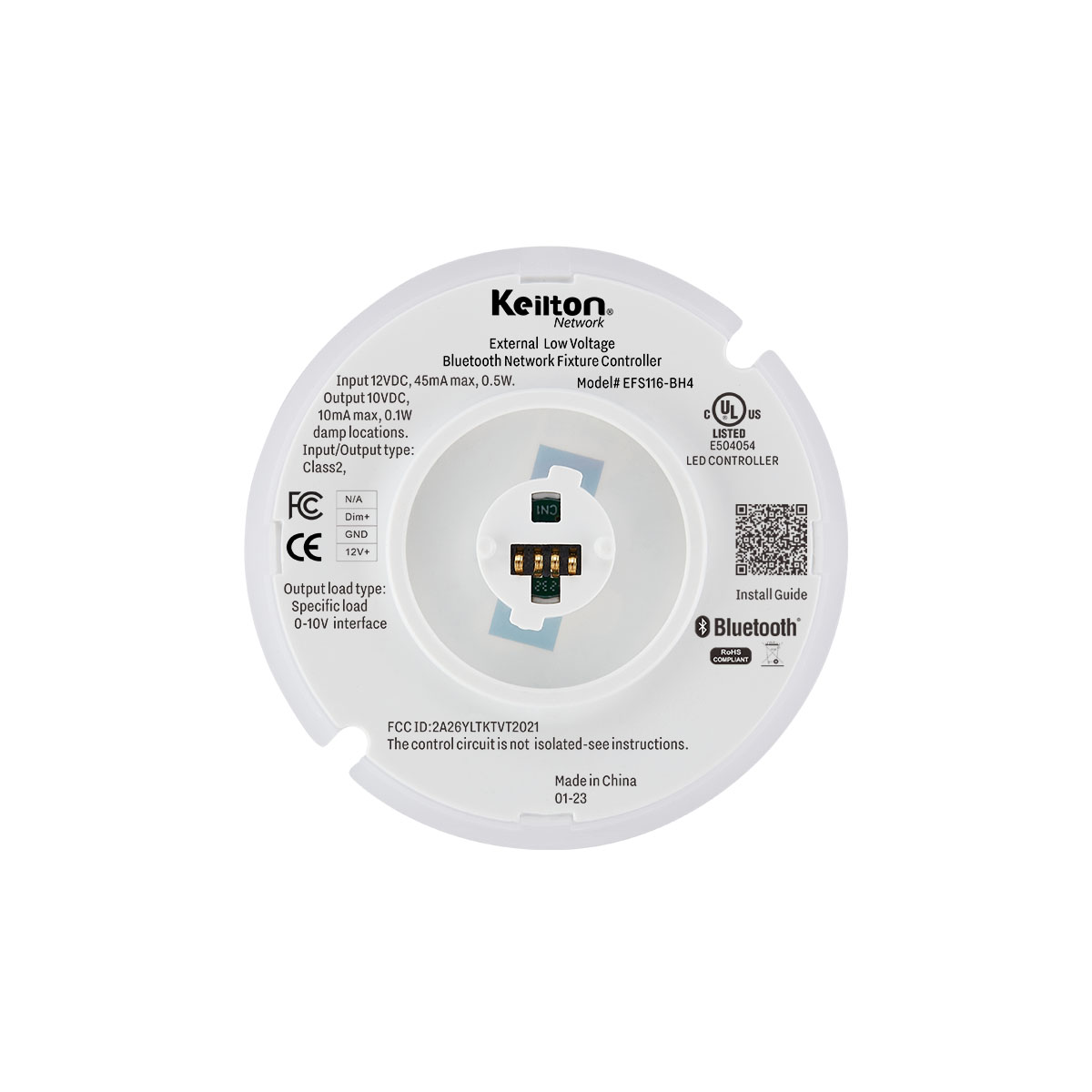

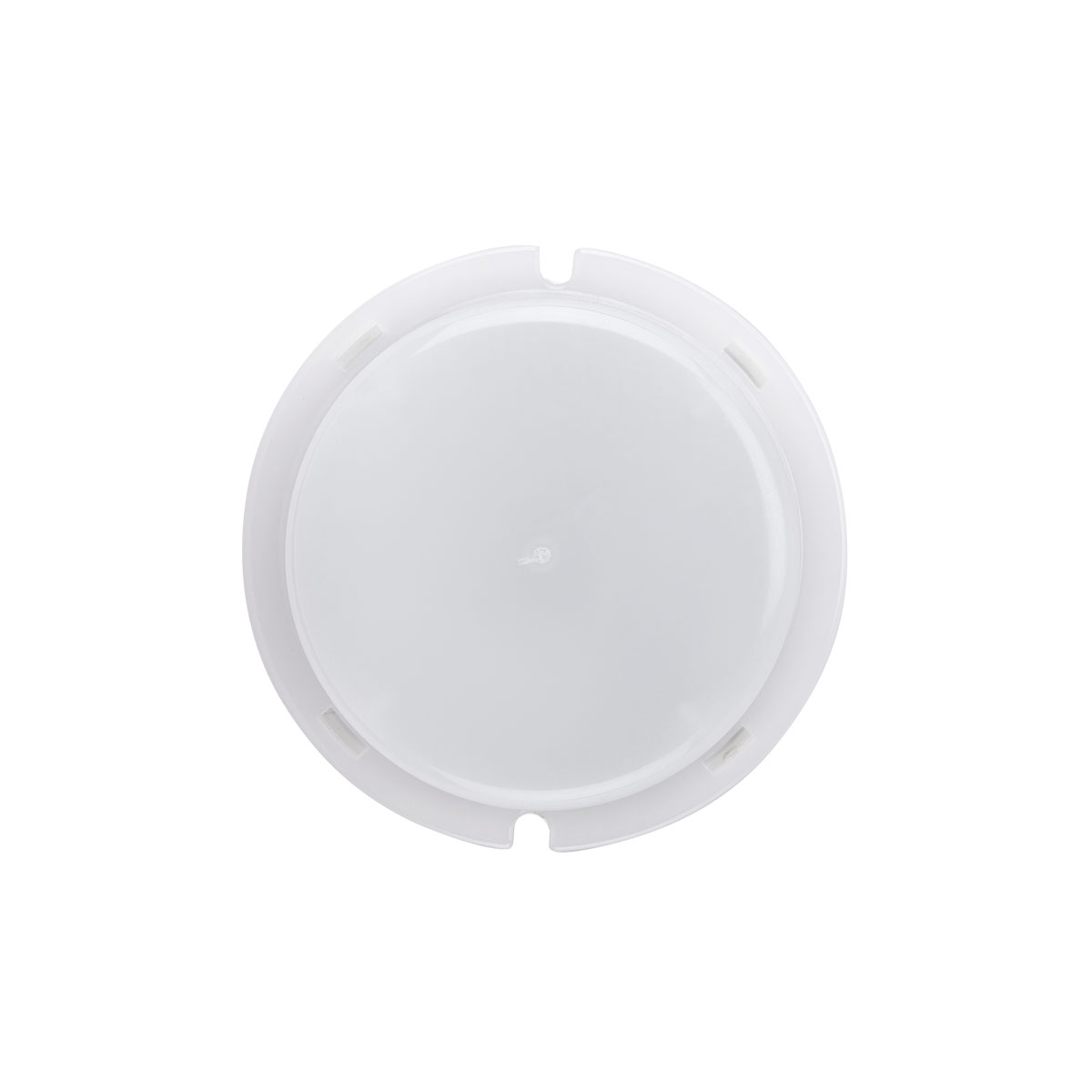

EFS116-BH4

DC Bluetooth High Bay Sensor

Product Documents

Features & Benefits

The Keilton EFS116 series designed for Luminiare Level Lighting Control (LLLC/NLC5) with integrated photocell and microwave sensors. Photocell threshold setting provides three different values fortreshold On/Off. EFS116 allows machine learning to collect the current light level as treshold value. SC01 and SC02 provide sensor port of EFS116-AUX which is designed for pre-installation of the luminaires. EFS116 has been equiped AlgoH™ algorithm to maximum the detection range without false trigger.

  • Plug and Play with Sensor Port Pre-installed
  • Bluetooth Network Technology
  • Design for High Bay application
  • AlgoHalgorithm to enhance performance in high bay application
  • High Power Microwave module built-in
  • Waterproof
  • Non-Touch magnet reset

Specifications

Part Number

EFS116-BH4

aaa

aaa

Component type

Sensor

bbb

bbb

Operating Temp

-30 to 55°C (-22°F to 131°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

80ft

Input voltage

12V

Aux voltage

N/A

Control

Single 0-10V

Dimmability

0-10V

Ip rating

IP40

Color offering

White

Mounting options

Plug and Play

Mouting height

40ft

Sensor type

Microwave

Warranty

5 year limited warranty

Certification

CE compliant, cULus Listed, DLC listed, FCC, RoHs, UL1376 Gold
