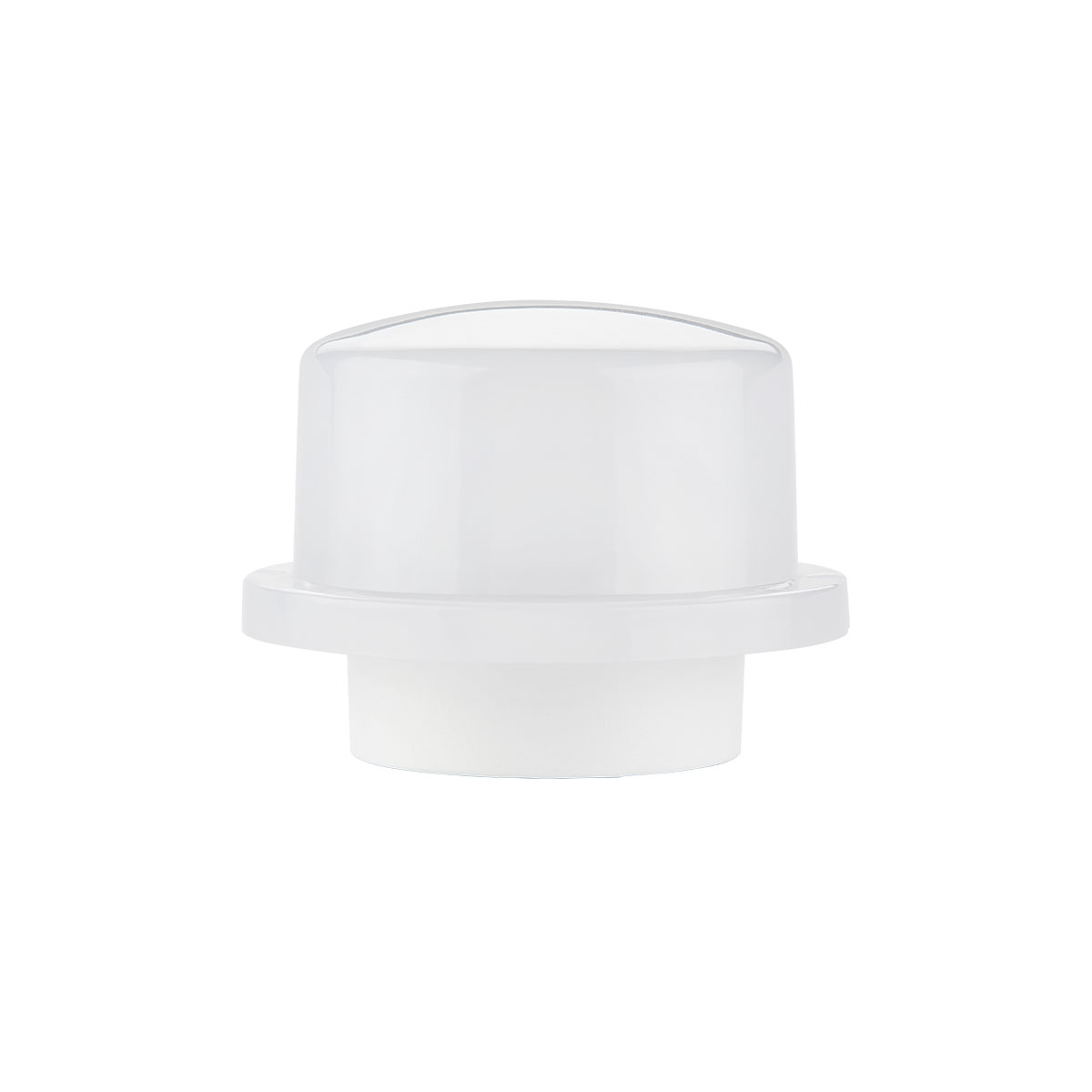

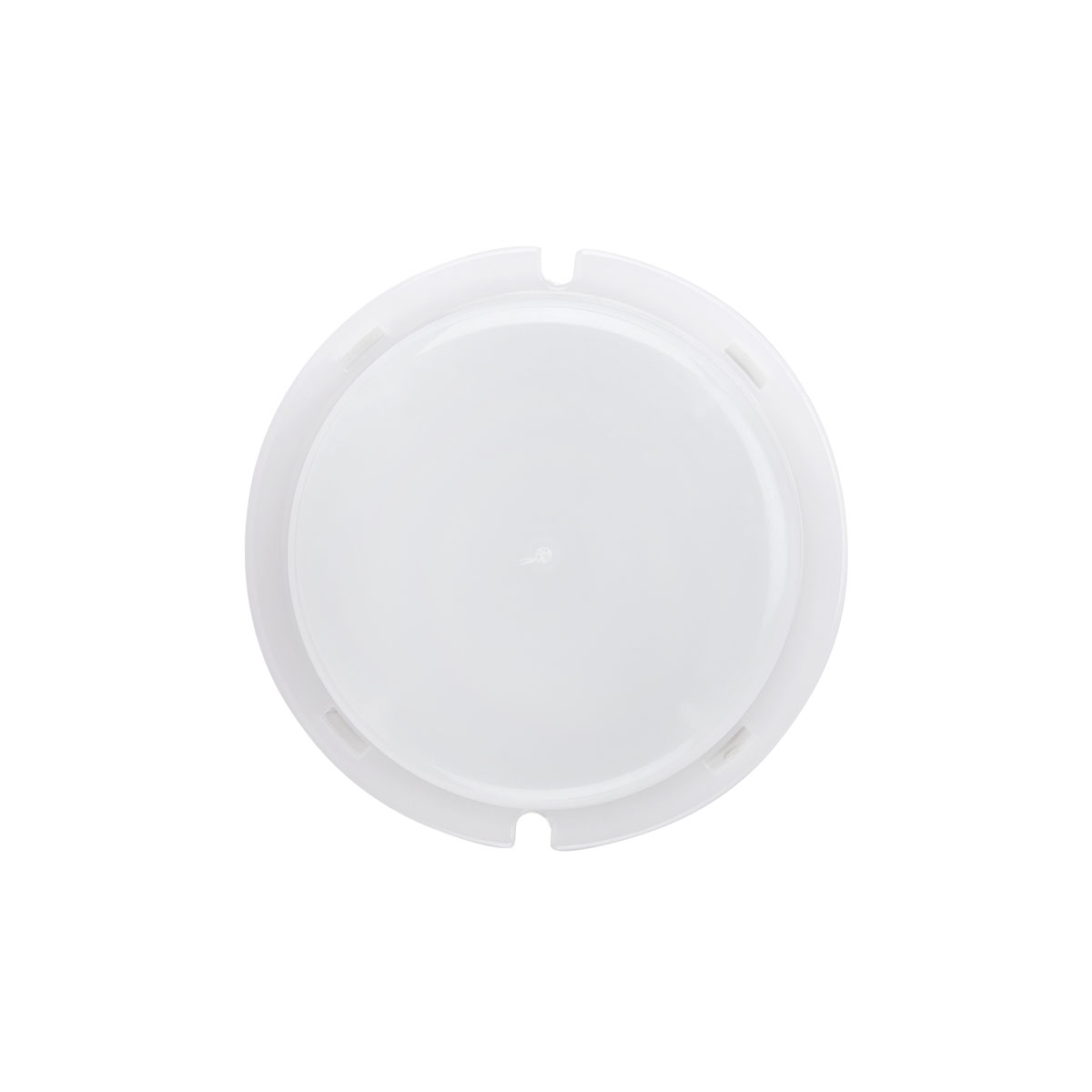

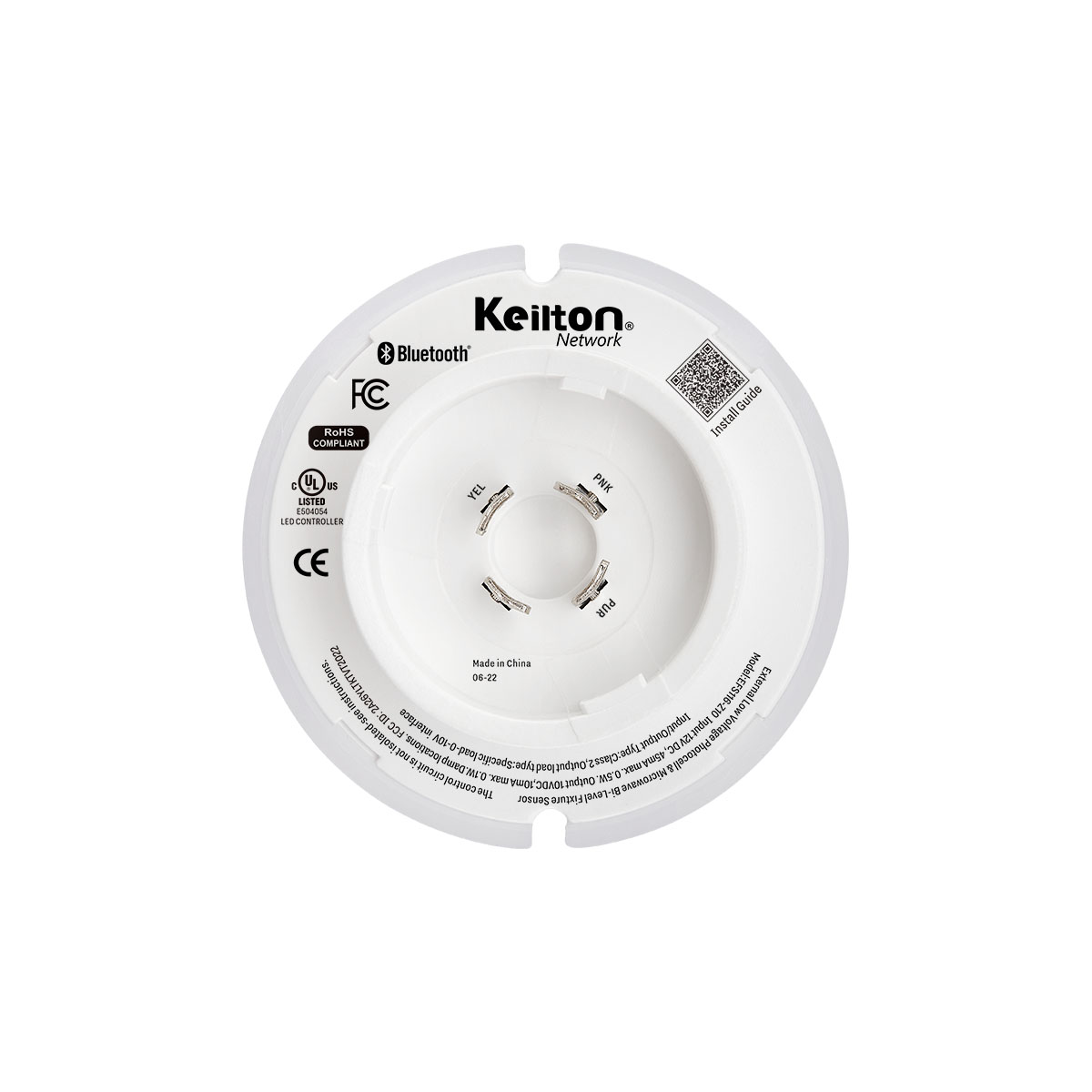

DC Bluetooth High Bay Sensor
Features & Benefits

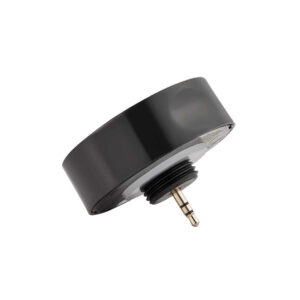

The Keilton EFS116 series designed for Luminiare Level Lighting Control (LLLC/NLC5) with integrated photocell and microwave sensors. Photocell threshold setting provides three different values fortreshold On/Off. EFS116 allows machine learning to collect the current light level as treshold value. SC01 and SC02 provide sensor port of EFS116-AUX which is designed for pre-installation of the luminaires. EFS116 has been equiped AlgoH™algorithm to maximum the detection range without false trigger.
- Plug and Play with Sensor Port Pre-installed
- Bluetooth Network Technology
- Designfor High Bay application
- AlgoH™algorithm to enhance performance in high bay application
- High Power Microwave module built-in
- Waterprof
- Non-Touch magnet reset
Specifications
Part Number
EFS116-Z10.A0
aaa
aaa
Component Type
sensor
bbb
bbb
Technology
bluetooth-v5-0
Radio Frequency
2.4G Hz
Transmission Range
80ft
Input Voltage
12v
Aux Voltage
n-a
Control Output
single-0-10v
Dimmability
0-10v
Color Offering
white
Mounting Height
40ft
Sensor Type
microwave
Warranty
5 year limited warranty
Certification
fcc, ce-compliant, culus-listed, dlc-listed, rohs, ul1376-gold
