IFS105E.A0

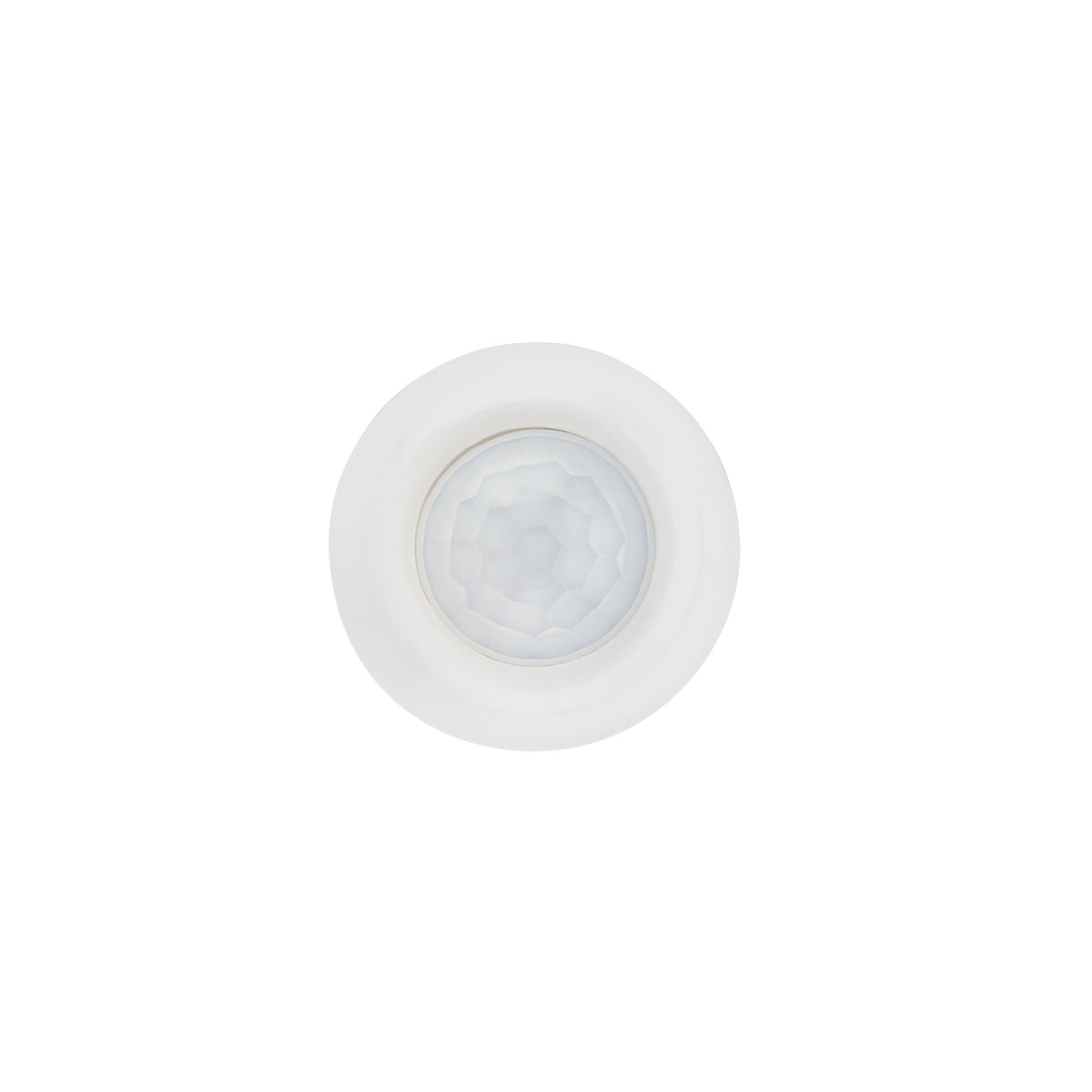

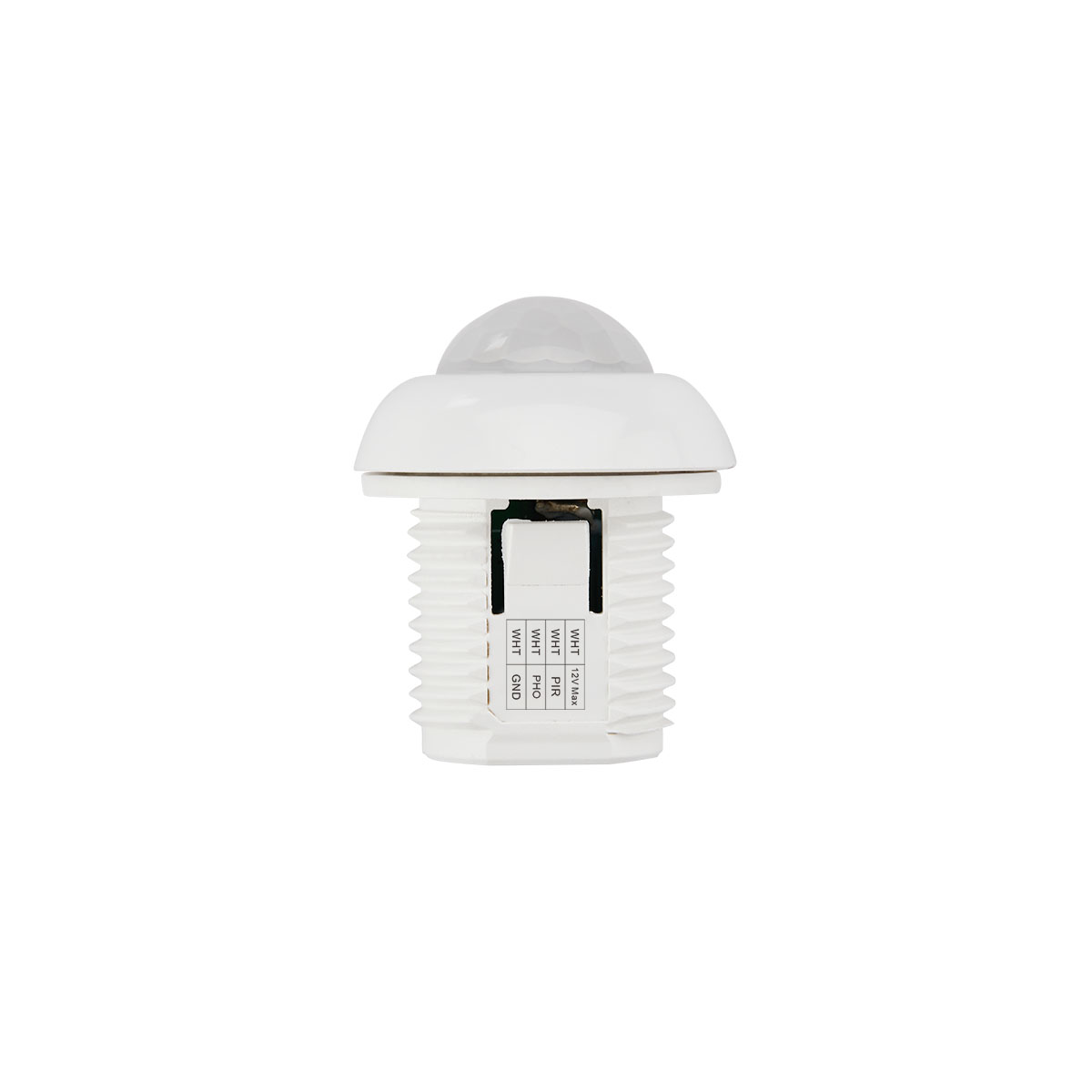

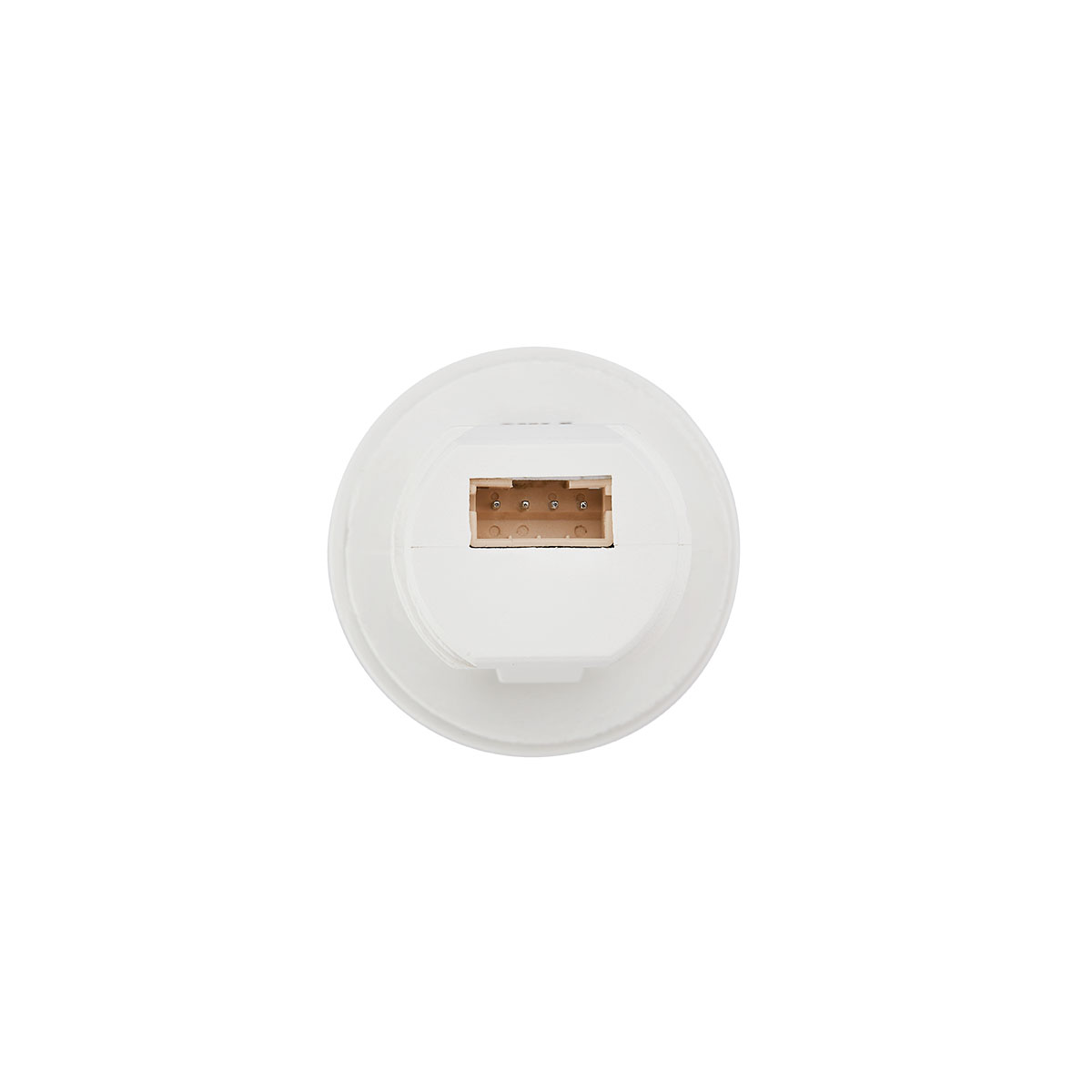

Integrated Round 12V Low Bay Eco Sensor

Product Documents

Features & Benefits

IFS105E Eco Sensor can not work alone, it has to be working with Keilton smart driver or FA102 fixture adapter. EcoSensor combines PIR and Daylight Sensor into one.

PIR Occupancy Sensor: Support setting delay time and Bi-Level dimming of the sensors through APP. Daylight Harvesting: daylight sensor allows for continuous dimming according to desired light level.

  • 12VDC input
  • PIR Sensor (no Bluetooth)
  • Daylight Harvesting
  • Requires power from PPA102S Series controller, FA102 Series adapter, or BT Driver
  • Digital sensor technology for low bay applications

Note: Lens sold separately

Specifications

Part Number

FS105E.A0

aaa

aaa

Component type

Sensor

bbb

bbb

Operating Temp

-30 to 55°C (-22°F to 131°F)

Technology

N/A

Range

N/A

Input voltage

12V

Aux voltage

N/A

Control

TTL

Dimmability

N/A

Ip rating

IP20

Color offering

White

Mounting options

Fixture Integrated

Mouting height

20ft

Sensor type

Daylight Harvesting, PIR

Warranty

5 year limited warranty

Certification

RoHs
