IFS108.C1

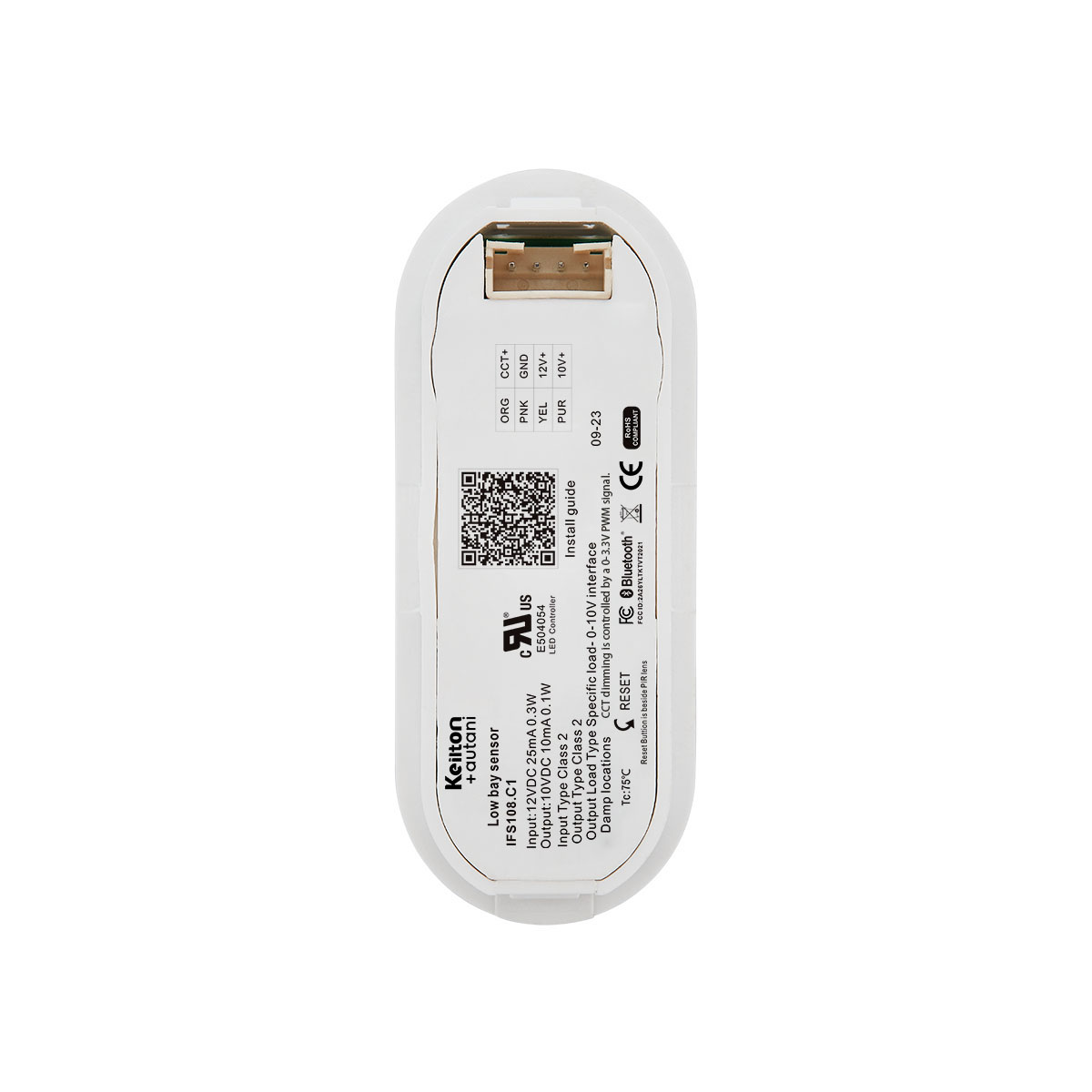

Fixture Built-in Low Bay Sensor

Product Documents

Features & Benefits

The Keilton IFS108 series are designed for Luminaire Level Lighting Control (LLLC/NLC5) with integrated daylight harvesting and PIR motion sensors which could convert general luminaire into smart lighting fixture. The compact structure is designed for panel, troffer, strip,wrap, vaportight and some architecture lighting fixtures.

  • Requires customized hole by tooling to install this sensor
  • Requires dim to off luminaire driver
  • Digital sensor equipped
  • Daylight harvesting available

Specifications

Part Number

IFS108.C1

aaa

aaa

Component type

Sensor

bbb

bbb

Operating Temp

'-30 to 55°C (-22°F to 131°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

100ft

Input voltage

12V

Aux voltage

N/A

Control

Single 0-10V

Dimmability

0-10V, PWM

Ip rating

IP20

Color offering

White

Mounting options

Fixture Integrated

Mouting height

20ft

Sensor type

Daylight Harvesting, PIR

Warranty

5 years limited warranty

Certification

CE compliant, cULus Listed, DLC listed, FCC, RoHs, UL1376 Gold
