IFS108-N.A1

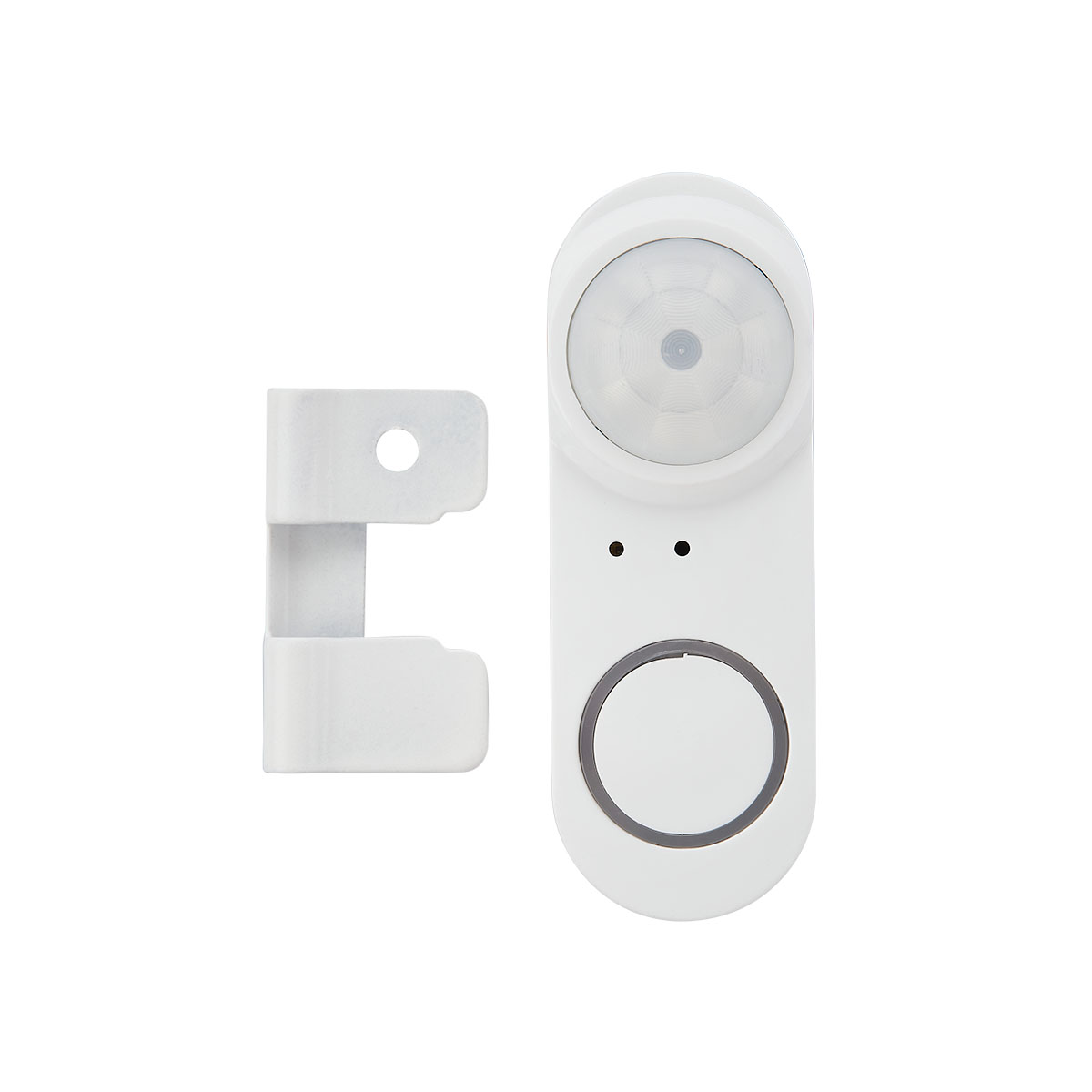

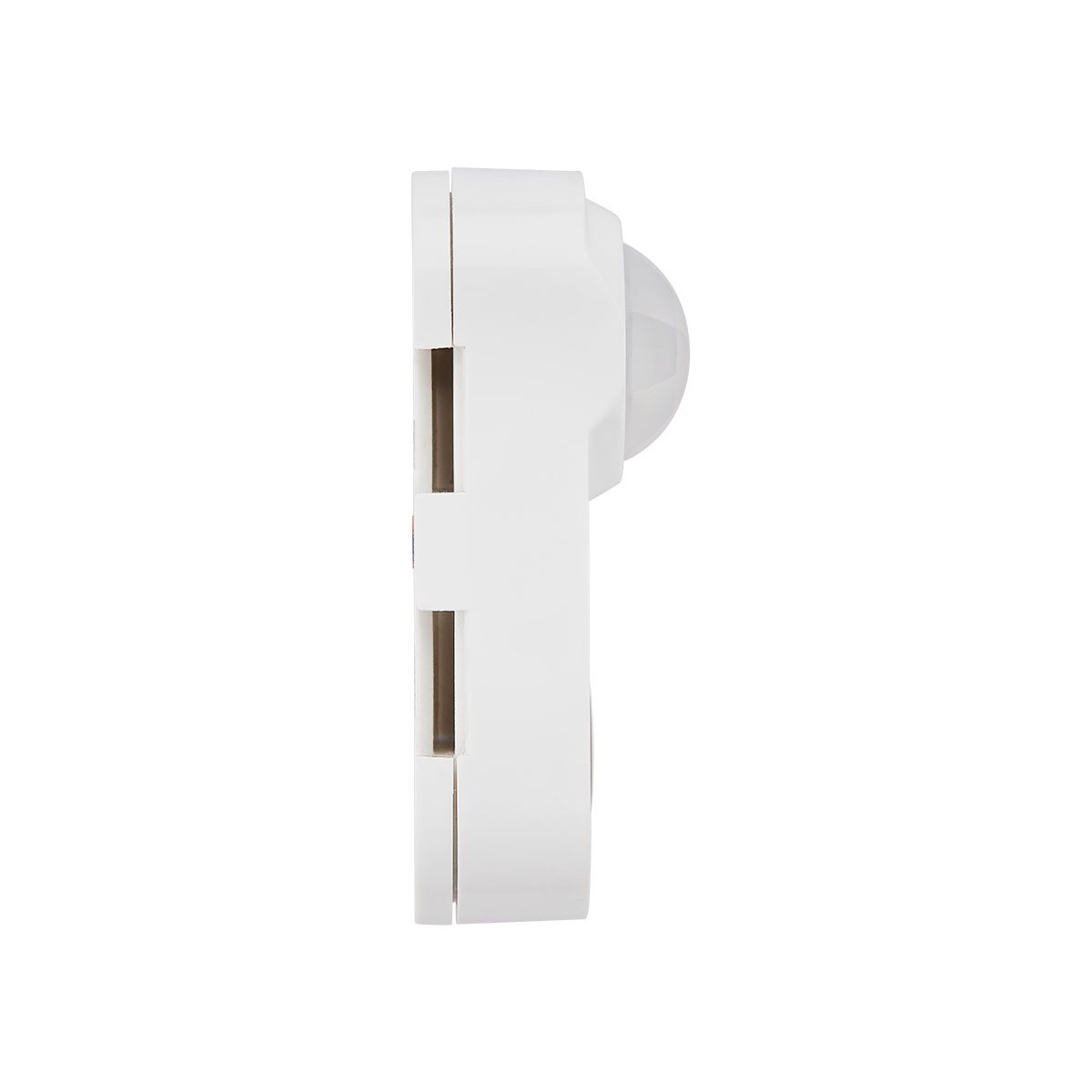

Clip-Mount Panel Sensor

Product Documents

Features & Benefits



  • Clip-mount allows sensor attachment to luminaire housing
  • 12V sensor with oval shape ideal for panels
  • PIR analog sensor with AlgoH² algorithm to maximize detection without false trigger
  • Allows modification of existing panel and downlight luminaires to luminaire level lighting control (LLLC)
  • Integrated daylight harvesting

Specifications

Part Number

IFS108-N.A1

aaa

aaa

Component type

Sensor

bbb

bbb

Operating Temp

-30 to 55°C (-22°F to 131°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

100ft

Input voltage

12V

Aux voltage

N/A

Control

Dual 0-10V

Dimmability

0-10V

Ip rating

IP20

Color offering

White

Mounting options

Fixture Integrated

Mouting height

20ft

Sensor type

Daylight Harvesting, PIR

Warranty

5 year limited warranty

Certification

CE compliant, cULus Listed, DLC listed, FCC, RoHs, UL1376 Gold
