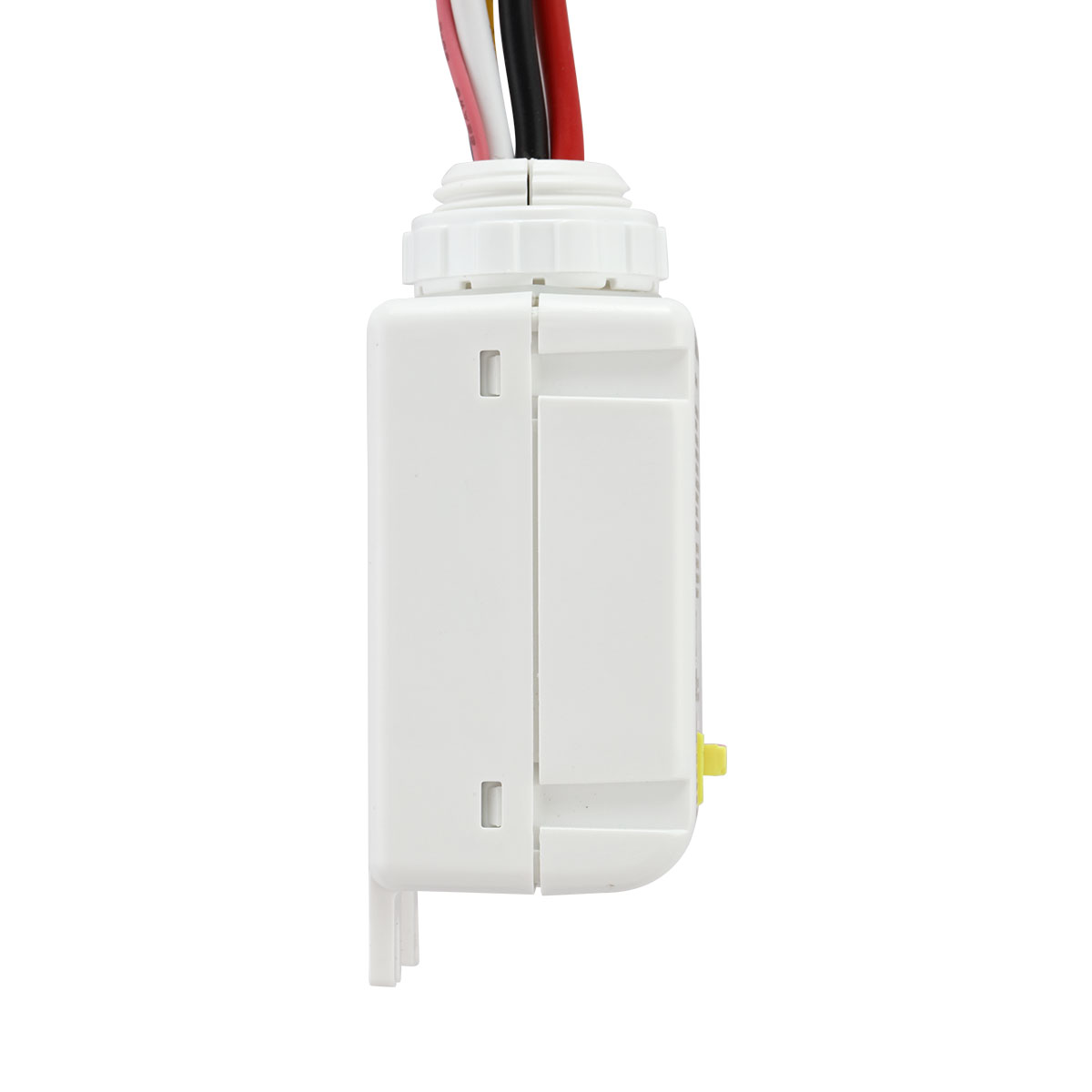

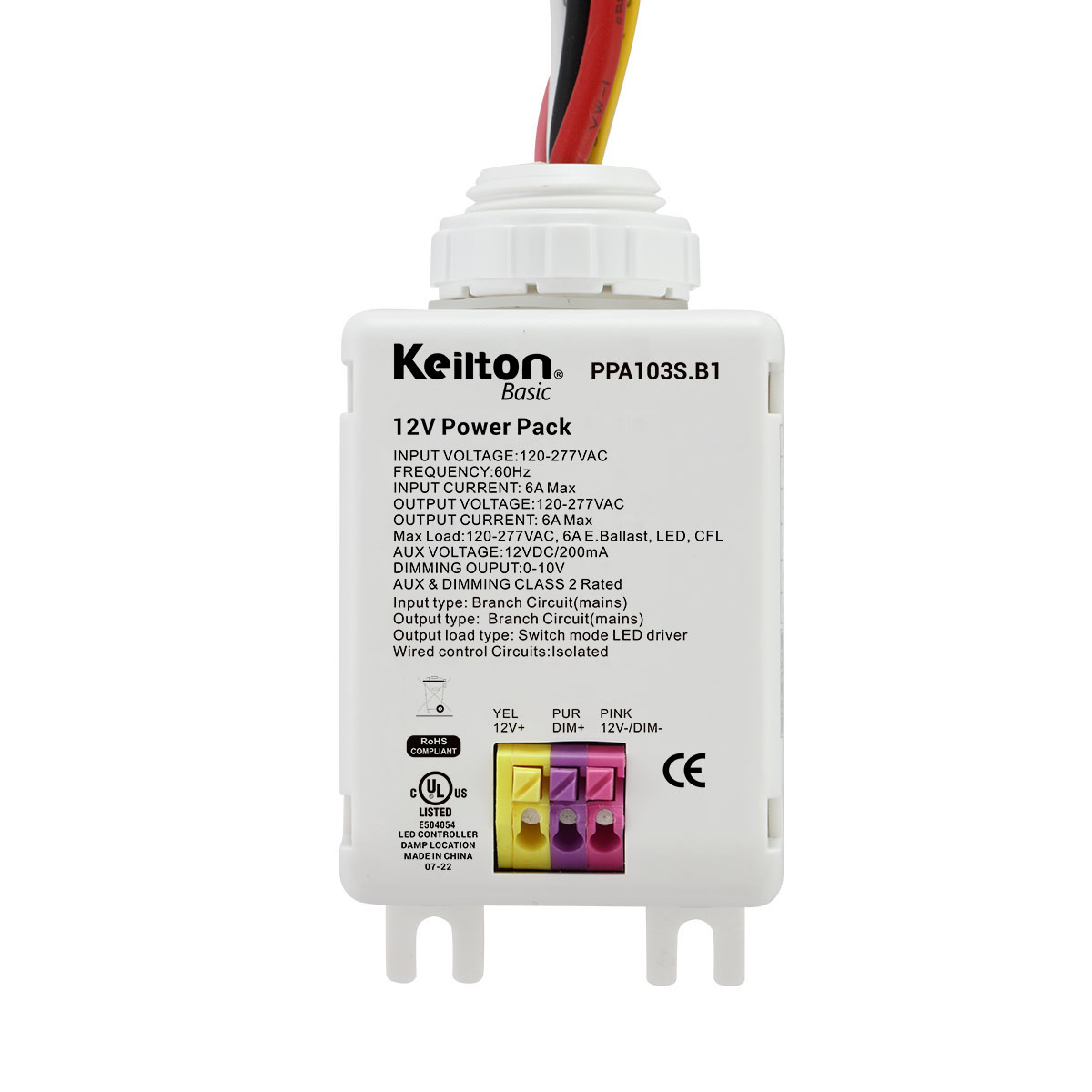

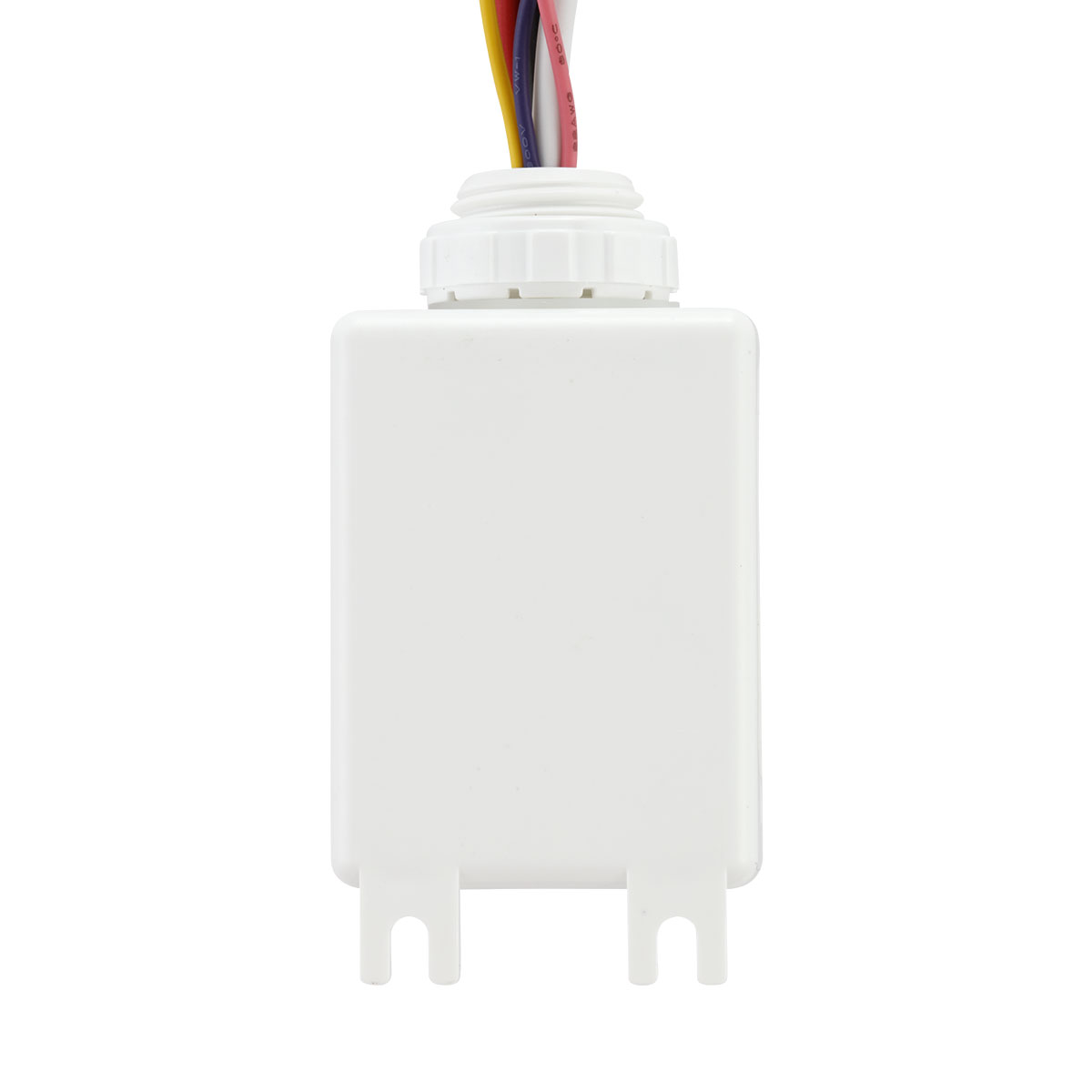

PPA103S.B1

Line Voltage 10A Relay Power Pack 12V Out

Product Documents

Features & Benefits

PPA103S is a power pack which provides 12V output to DC sensors and controller to that they can work together with the luminaires where driver doesn’t provide AUX DC supply. PPA103S also provides 0-10V dimming wire for Bi-Level motion control and relay output.

  • 120-347VAC Input
  • Integrated 10A relay
  • Offers 12V, 200mA output power to sensors
  • Attaches with standard 1/2″ knockout
  • Provides 0-10VDC dimming wire for bi-level motion control and relay output

Specifications

Part Number

PPA103S.B1

aaa

aaa

Component type

Power Pack

bbb

bbb

Operating Temp

-30 to 65°C (-22°F to 149°F)

Technology

N/A

Range

N/A

Input voltage

120-277V, 120V

Aux voltage

12V

Control

Relay, Single 0-10V

Dimmability

0-10V

Ip rating

IP20

Color offering

White

Mounting options

Fixture KO

Mouting height

N/A

Sensor type

Eco Sensor Port

Warranty

5 year limited warranty

Certification

CE compliant, cULus Listed, DLC listed, FCC, Plenum Rated, RoHs, UL1376 Gold
