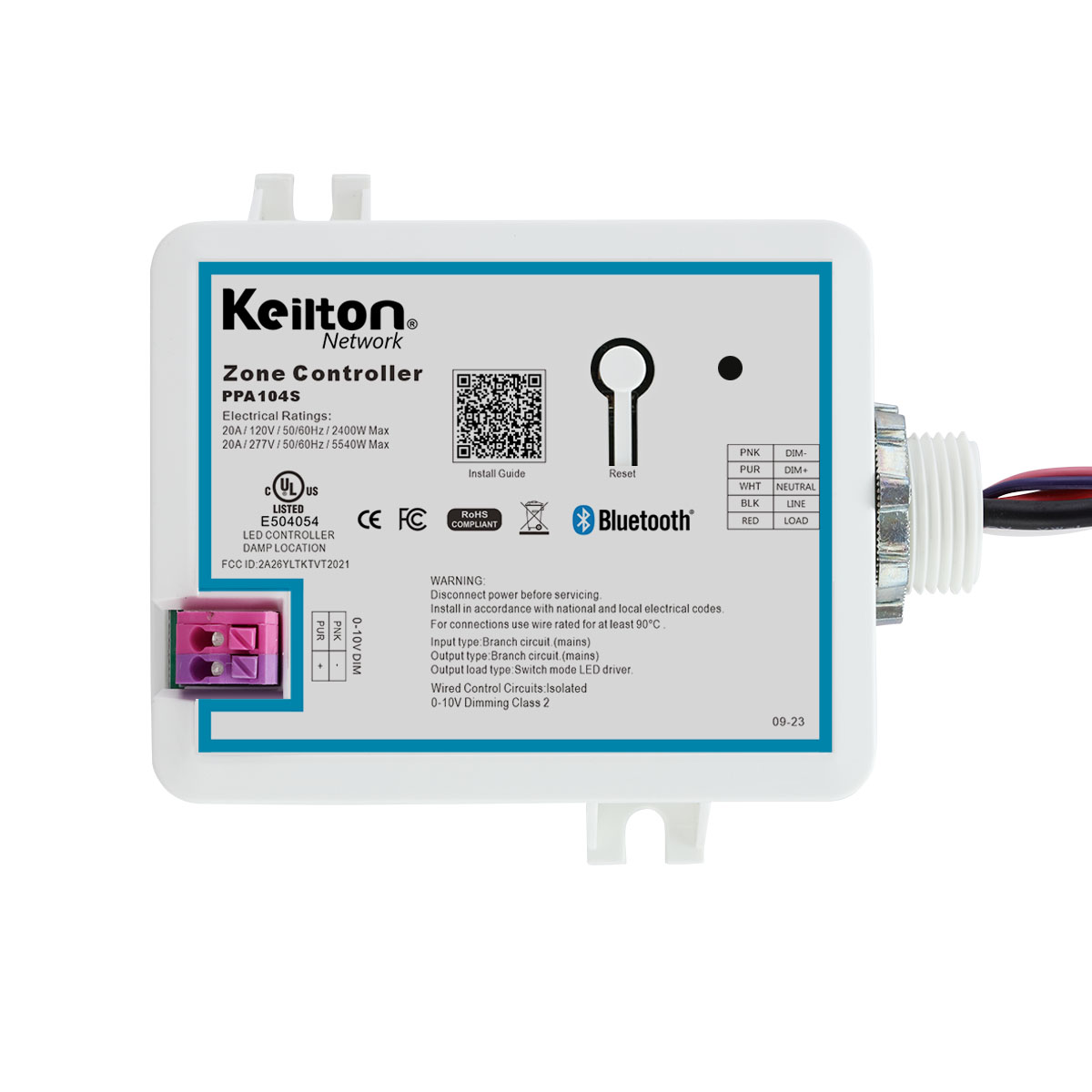

Line Voltage 20A BT Zone Controller
Features & Benefits
- 120-277VAC Input
- Integrated 20A relay
- Output power up to 2,400W(120VAC), 5,540W(277VAC)
- UL Plenum Rated
- 1 HP motor load rated
Specifications
Part Number
PPA104S.A0
Component Type
controller
Technology
bluetooth-v4-2
Radio Frequency
2.4G Hz
Transmission Range
200ft
Input Voltage
120-277v
Control Output
relay, single-0-10v
Dimmability
0-10v
Application
indoor
Color Offering
white
Warranty
5 year limited warranty
Certification
fcc, ce-compliant, culus-listed, dlc-listed, plenum-rated, rohs, ul1376-gold
