PPA104S-D.A0
Product Documents
Features & Benefits

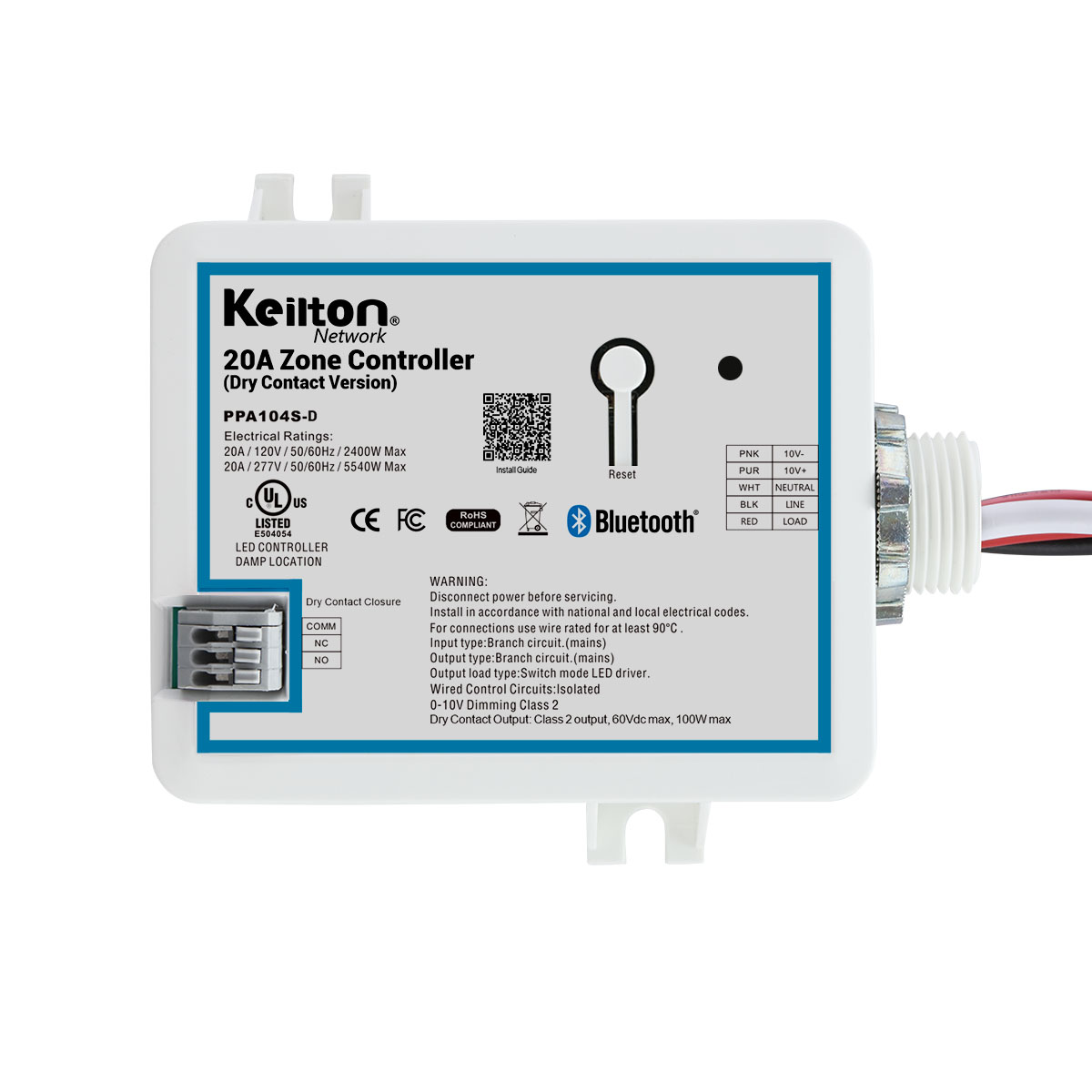

PPA104S-D provides dry contact output (normal open/normal close) which may send signals to 3rd party systems for integration, such as HVAC, surveillance.3rd party systems may utilize the wireless mesh communication technology and the ubiquitous motion sensoring capability of Keilton products to provide convenient and automated operations to users.
- Dry contact output, 3A max pass through current. COMM/NC for normal close, COMM/NO for normal open.
- Relay output, up to 20A max current.
- 0-10V dimming output, max sinking current 48.5mA.
- Plenum Rated UL2043.
- Can work with other Keilton Devices.
Specifications
Part Number
PPA104S-D.A0
aaa
aaa
Component type
Controller
bbb
bbb
Technology
Bluetooth v4.2
Radio Frequency
2.4G Hz
Range
200ft
Input voltage
120-277V, 120V
Aux voltage
N/A
Control
Dry Contact, Relay, Single 0-10V
Dimmability
0-10V
Color offering
White
Mouting height
N/A
Sensor type
N/A
Warranty
5 year limited warranty
Certification
CE compliant, cULus Listed, DLC listed, FCC, Plenum Rated, RoHs, UL1376 Gold
