Bluetooth Module
Features & Benefits

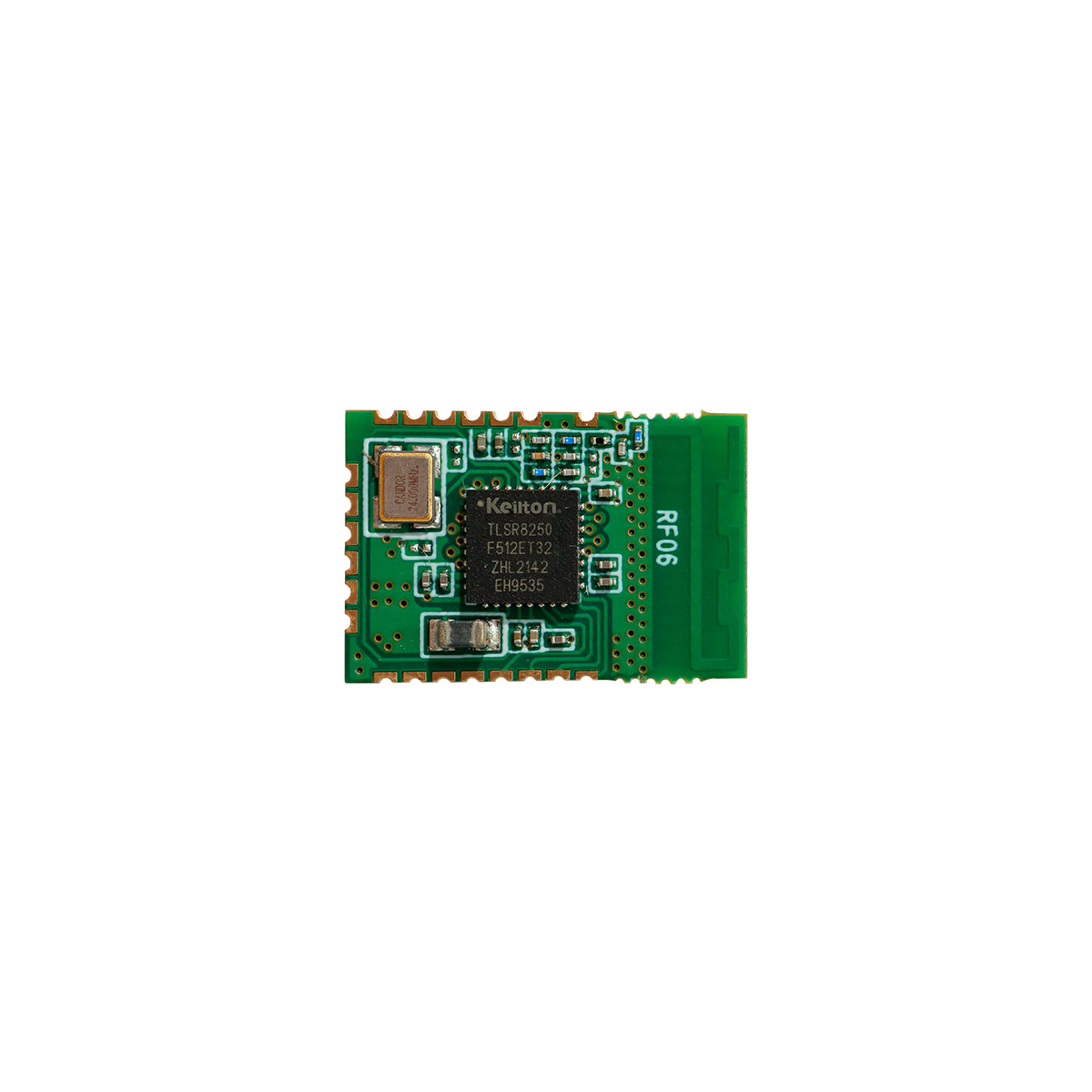

Smart RF06 is an embedded Bluetooth wireless communication module which supports Bluetooth BLE 2.4G wireless communication protocol. It has the characteristics of low power consumption, small size and strong signal with compact size. This module integrates a 32-bit low power MCU. Provides a variety of smart lighting control applications for various scenarios.
- Integrated 32-bit low power MCU, enables various smart lighting control applications
- SOC module firmware built-in, completely code free
- Low-power consumption design, suitable for battery-powered devices. (switch application)
- Compatible with BLE 5.0
- RF dataratesup to 2Mbps
- Transmit power up to +10dBm
- Receiving sensitivity up to -96dbm
- Supports on board and external antennas
- Operating temperature range -40℃ to 85℃
Specifications
Part Number
RF06
aaa
aaa
Component Type
module
bbb
bbb
Technology
bluetooth-v5-0
Radio Frequency
2.4GHz
Transmission Range
100ft
Input Voltage
Aux Voltage
n-a
Dimmability
na
Color Offering
white
Mounting Height
n-a
Sensor Type
n-a
Warranty
5 year limited warranty
Certification
rohs
