SC01

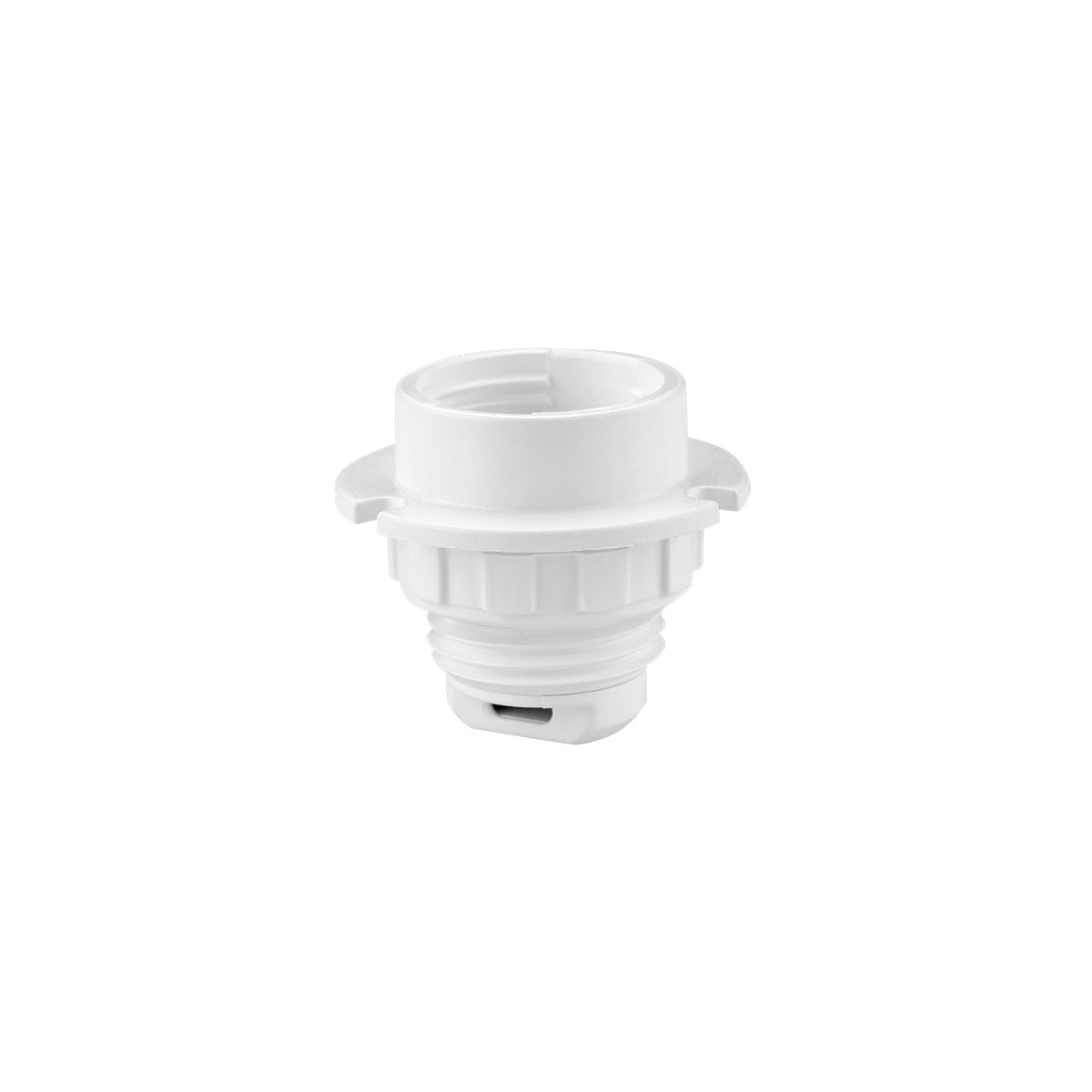

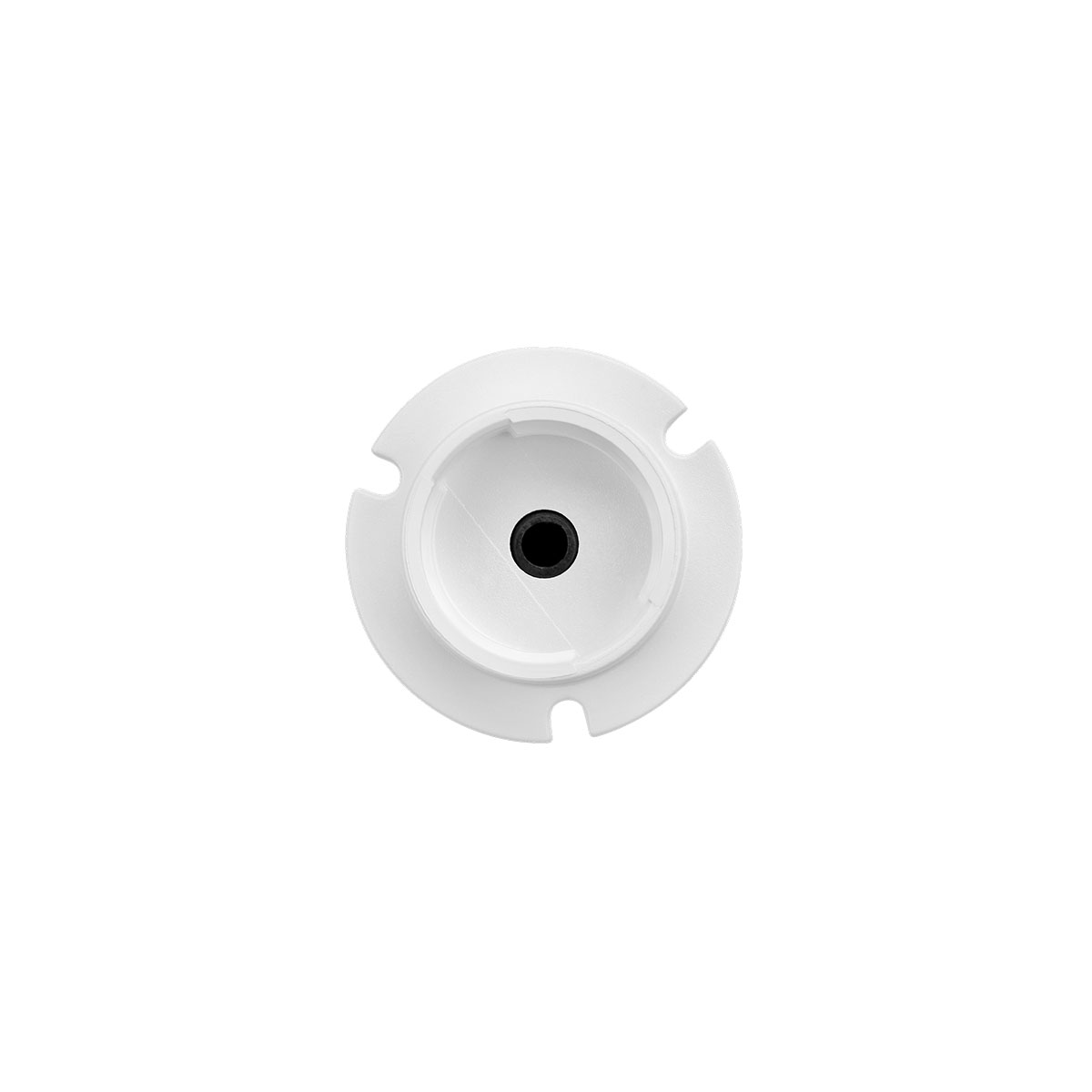

3.5mm Audio Jack Sensor Receptacle

Product Documents

Features & Benefits

SC01 provide the sensor port for EFS106-AUX, WPPA102-AUX, which is designed for pre-installation in linear high bay or UFO high bay luminaires.

  • 3.5mm audio jack receptacle
  • Enables new luminaire designs for plug and play luminaire level lighting control (LLLC)
  • Low-profile design with minimal depth into housing and minimal height above luminaire
  • Waterproof version offers UV-Resistant high-impact rated covers to fully seal and protect the receptacles
  • 4-pins allow color tuning functionality

Specifications

Part Number

SC01

aaa

aaa

Component type

Accessories

bbb

bbb

Operating Temp

'-30 to 65°C (-40°F to 185°F)

Technology

N/A

Radio Frequency

N/A

Range

N/A

Input voltage

12V

Aux voltage

N/A

Dimmability

N/A

Ip rating

IP20

Color offering

White

Mouting height

N/A

Sensor type

N/A

Warranty

5 year limited warranty

Certification

RoHs
