WP1013.A0

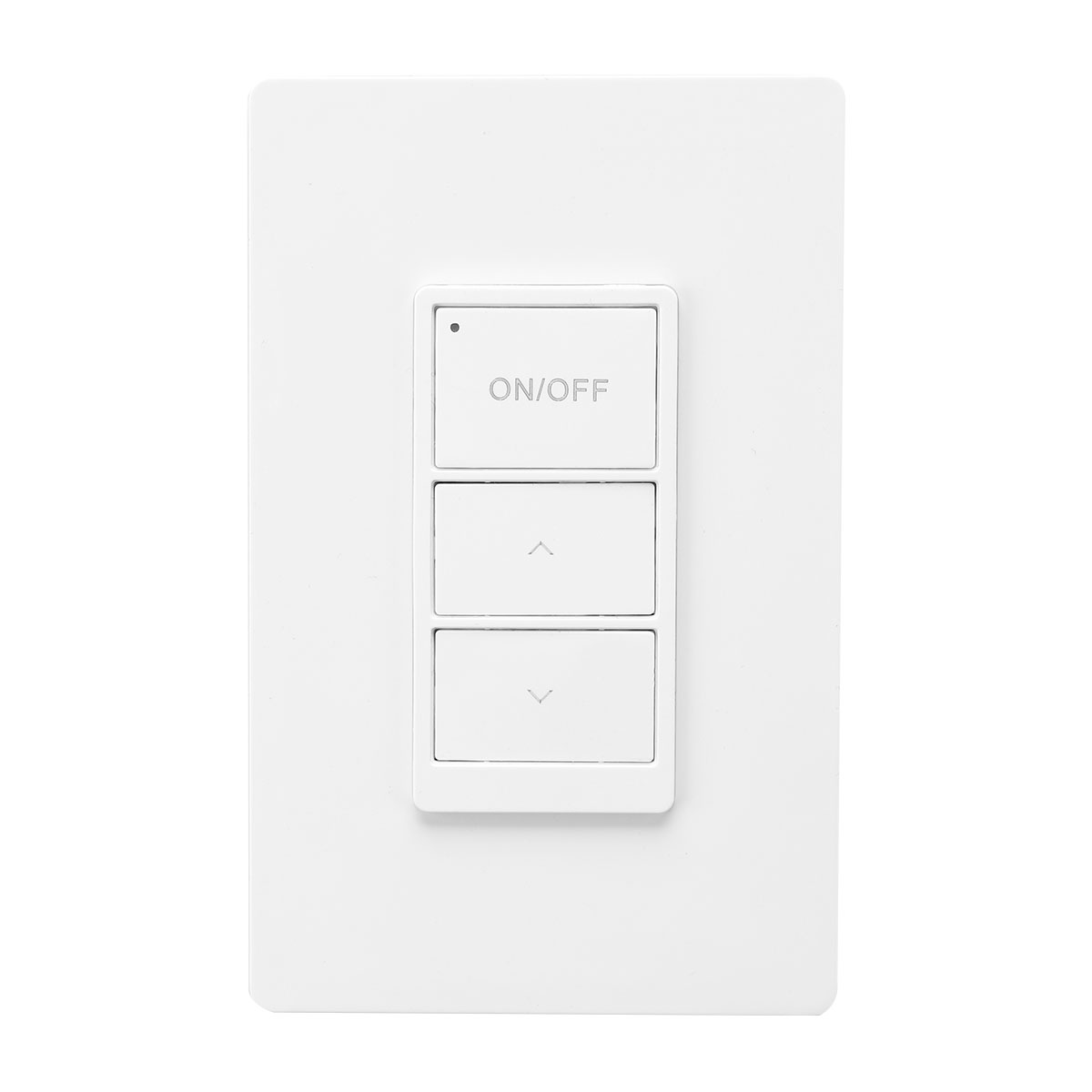

3-Key Battery Powered Wall Switch

Product Documents

Features & Benefits

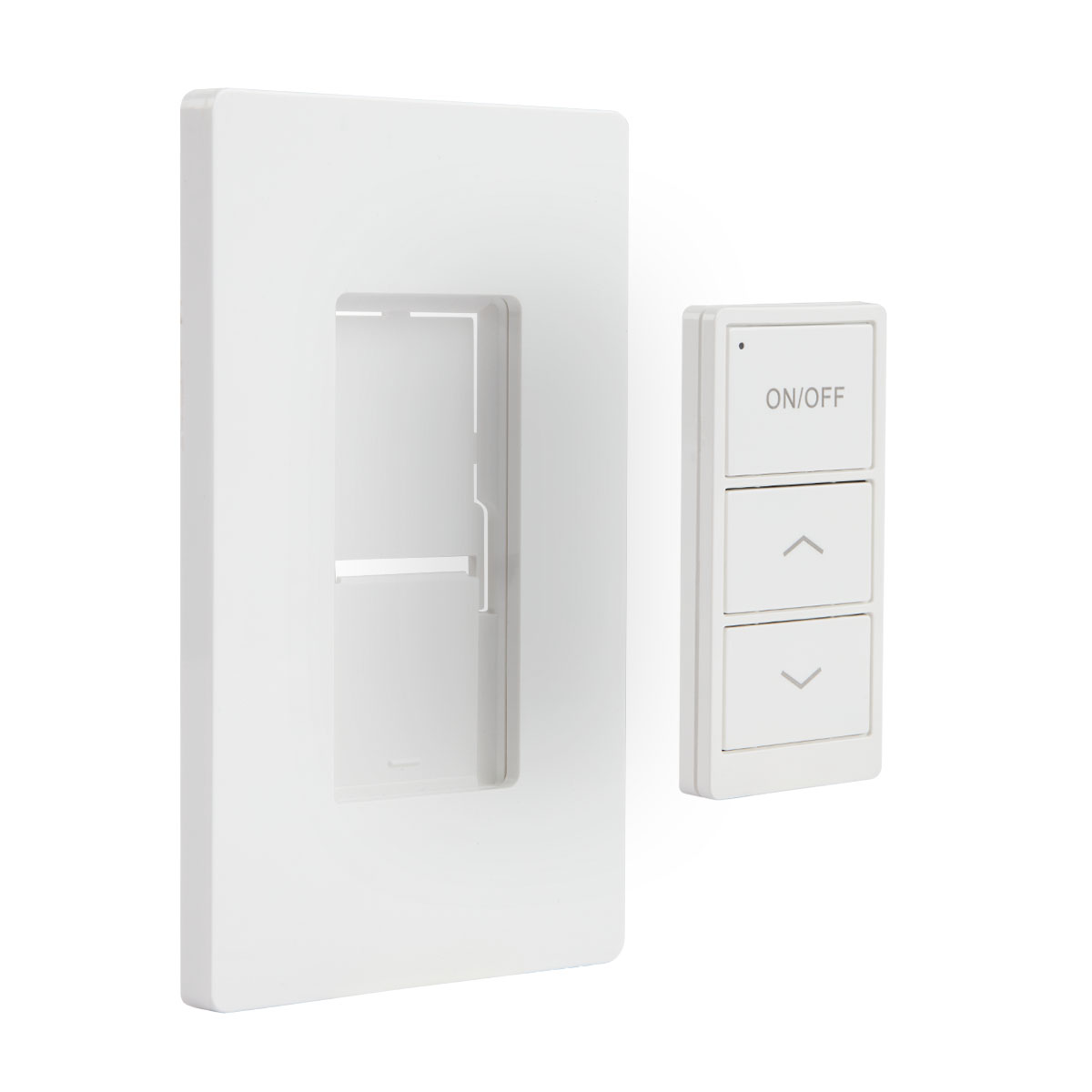

The Keilton WP1013 is a battery powered wall switch which battery can last over 3 years. Part of WP1013 can be used as remote controller on the desk.

  • Bluetooth network technology Enables the switch to be linked to a light or a group via smart phone App.
  • Powered by CR2032
  • When the power is low, press any key red LED indicator will flash

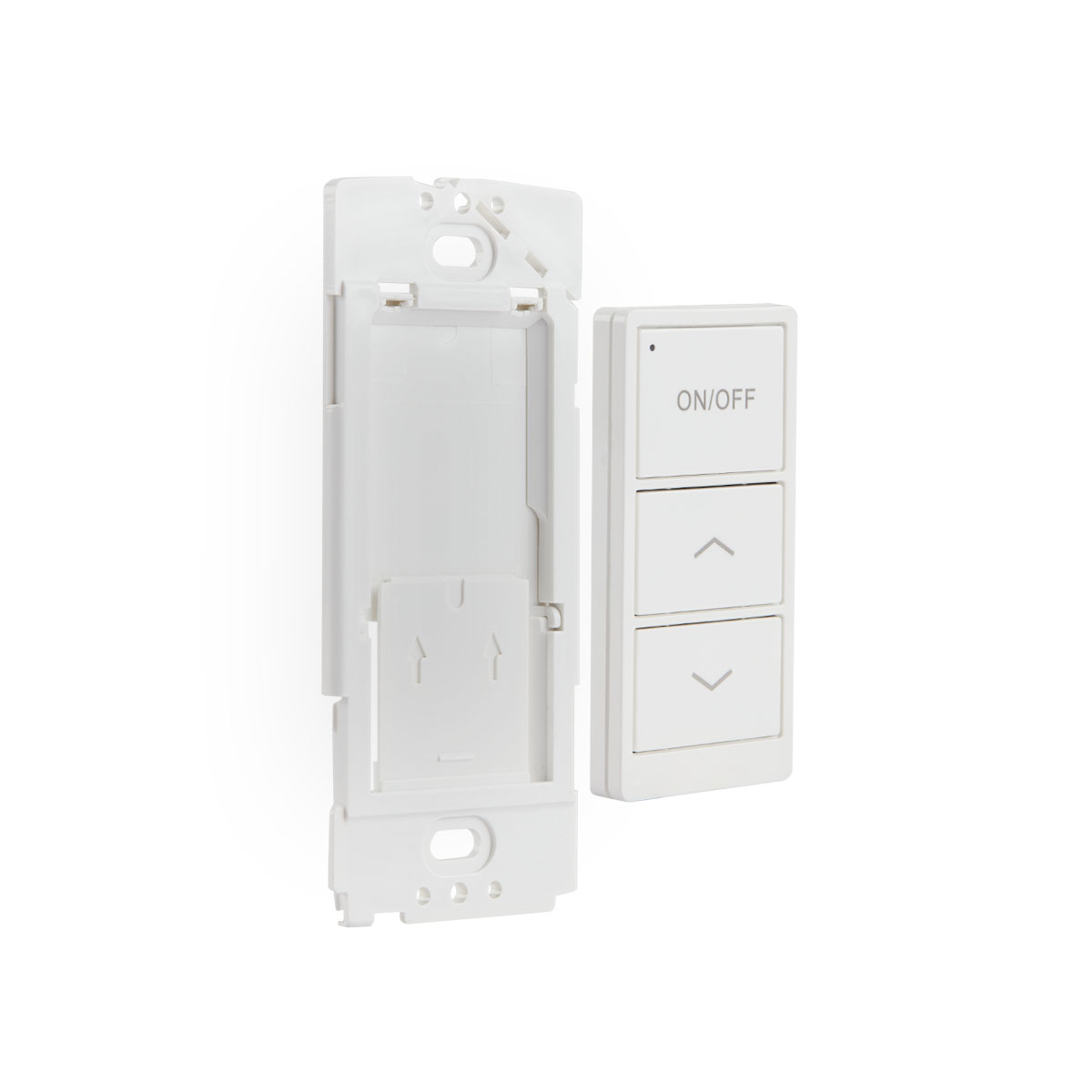

  •  Easily retrofit existing wall switches by WP kits

Specifications

Part Number

WP1013.A0

aaa

aaa

Component type

Wall Station

bbb

bbb

Operating Temp

'-18 to 50°C (-0.4°F to 122°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

100ft

Input voltage

3.3V

Aux voltage

N/A

Dimmability

0-10V

Ip rating

IP20

Color offering

White

Mounting options

Wall Mount

Mouting height

N/A

Sensor type

N/A

Warranty

5 years limited warranty

Certification

DLC listed, FCC, RoHs, UL1376 Gold
