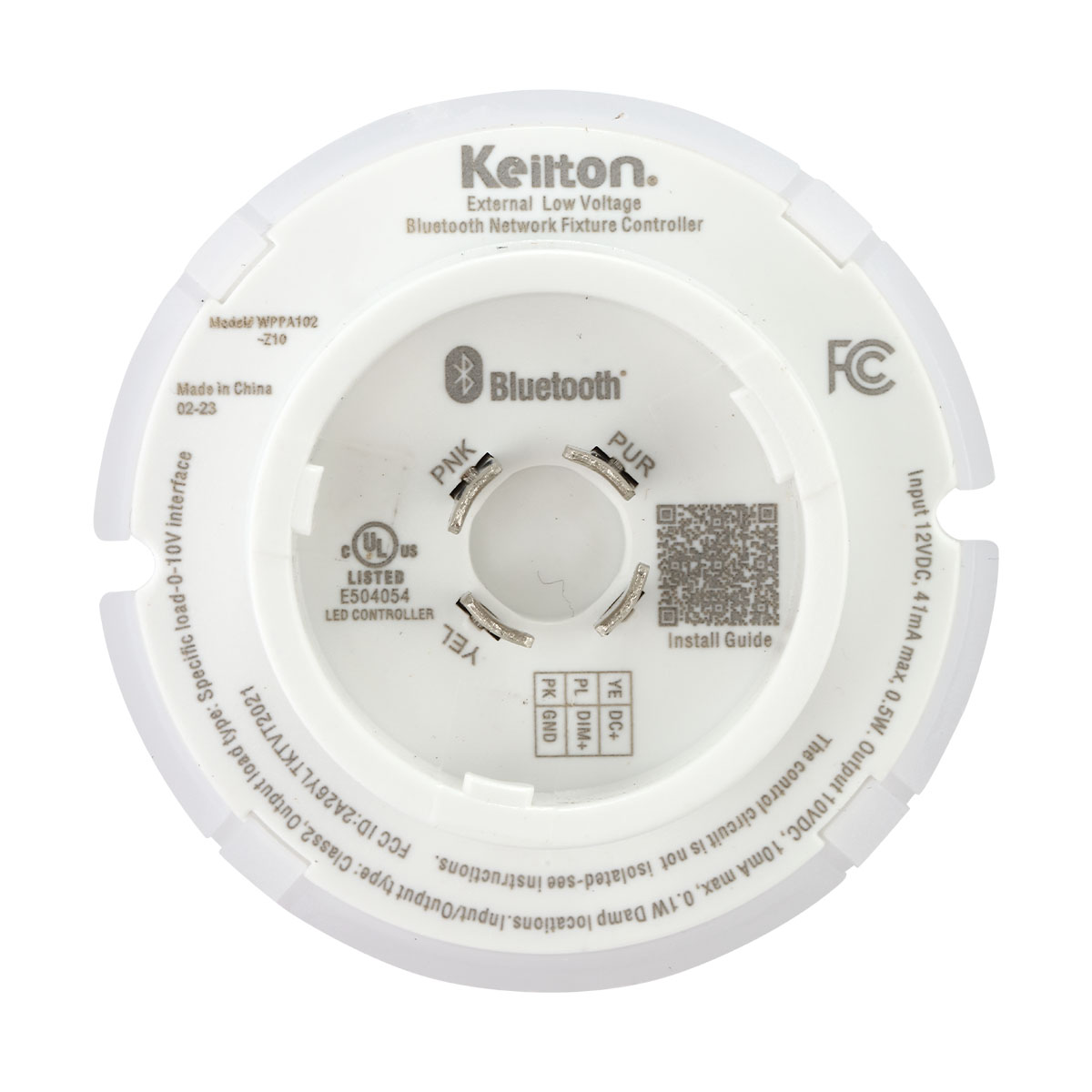

WPPA102-Z10.B1

Waterproof DC Fixture Controller

Product Documents

Features & Benefits

  • Z10 Zhaga connector
  • Plug and Play 12V sensor with integrated connector
  • BT node without sensor allows control from app or linkage to other sensors

Specifications

Part Number

WPPA102-Z10.B1

aaa

aaa

Component type

Controller

bbb

bbb

Operating Temp

'-30 to 65°C (-22°F to 149°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

100ft

Input voltage

12V

Aux voltage

N/A

Control

Single 0-10V

Dimmability

0-10V

Ip rating

IP40

Color offering

White

Mounting options

Plug and Play

Mouting height

N/A

Sensor type

N/A

Warranty

5 years limited warranty

Certification

CE compliant, cULus Listed, DLC listed, FCC, RoHs, UL1376 Gold
