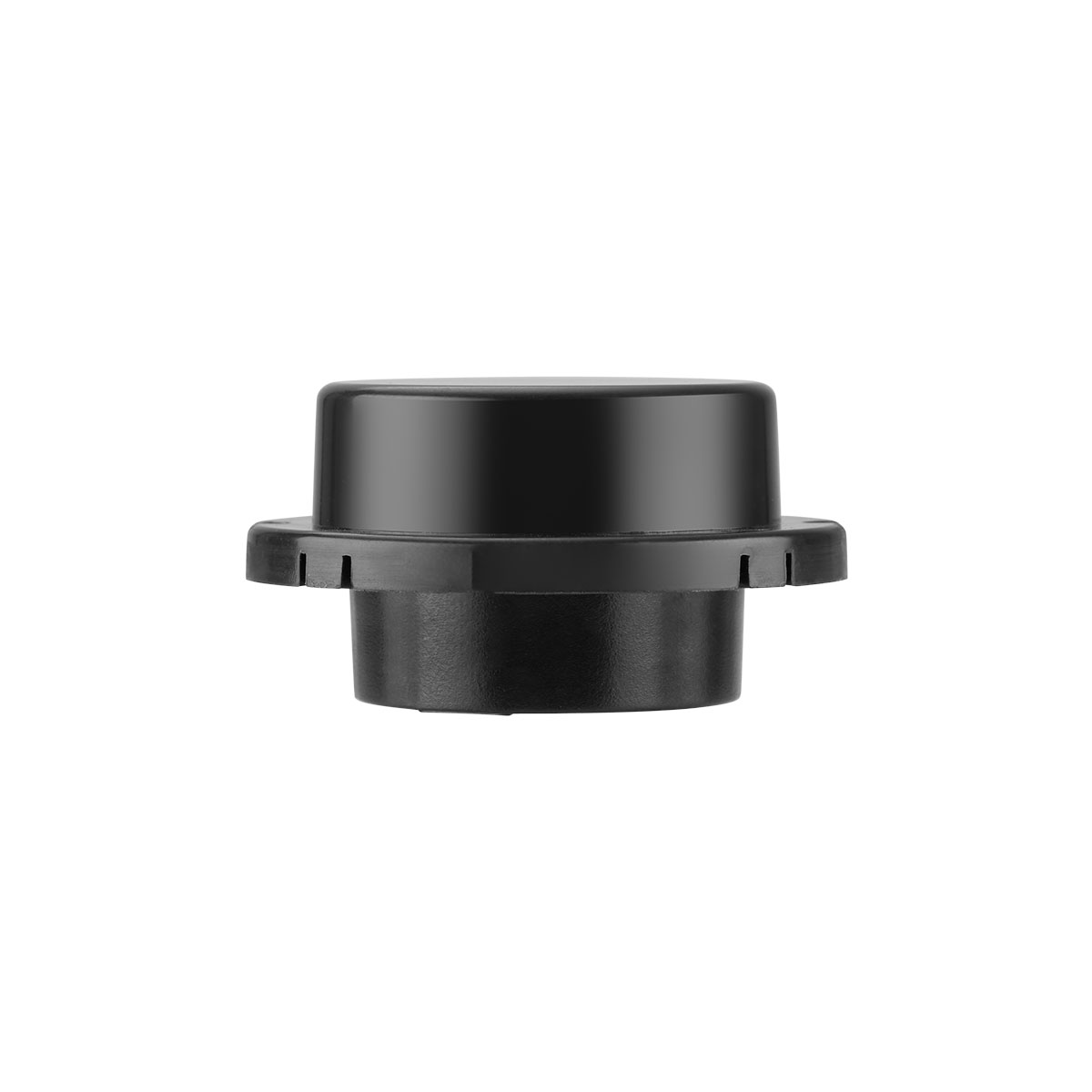

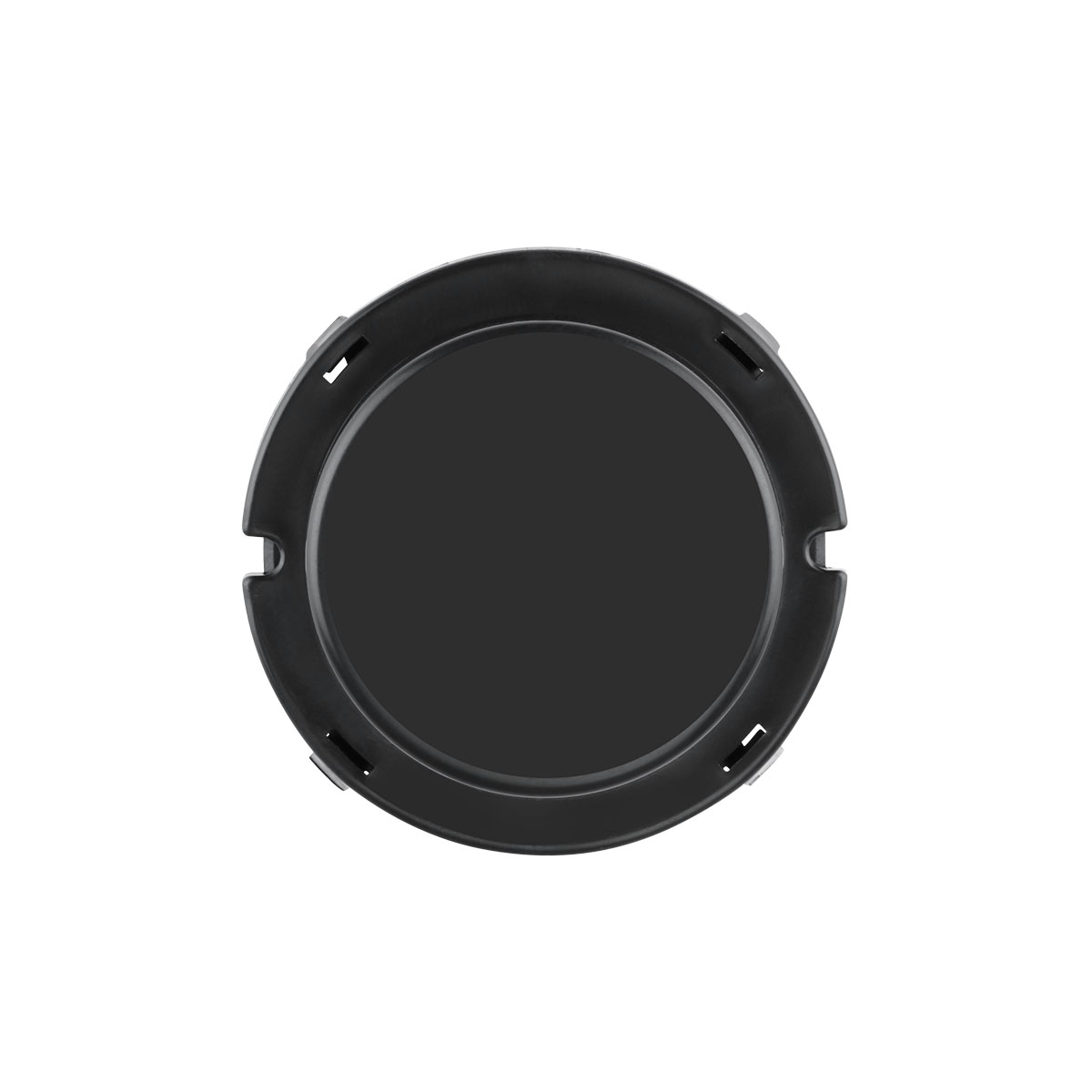

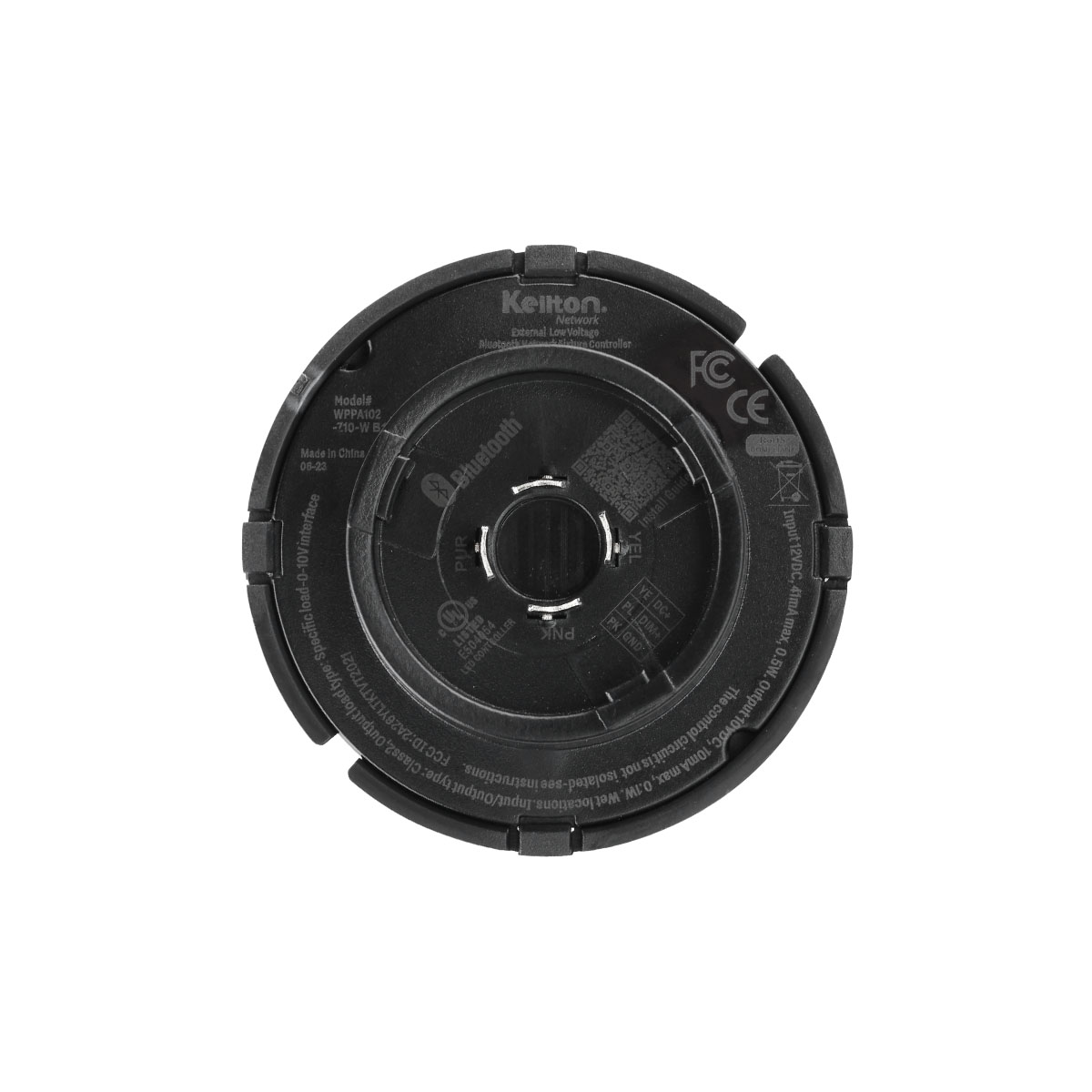

WPPA102-Z10-W.B1

Plug and Play Long-Range Controller Node

Product Documents

Features & Benefits

WPPA102-W has enhanced antenna with 328ft transmit distance, is ideal for outdoor applications, with longer distances between system nodes. Outdoor IP66-rated controller housing features a black finish designed to complement commercial outdoor luminaires, with nylon UV-rated material.

  • Z10 Zhaga connector
  • Plug and Play 12V sensor with integrated connector
  • Enhanced long-range antenna with up to 328 ft Bluetooth transmission range
  • BT node without sensor allows control from app or linkage to other sensors

Note:

  • Requires Dim-to-Off LED drivers
  • Requires Keilton BH4W receptacle

Specifications

Part Number

WPPA102-Z10-W.B1

aaa

aaa

Component type

Controller

bbb

bbb

Operating Temp

-30 to 65°C (-22°F to 149°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

200ft

Input voltage

12V

Aux voltage

N/A

Control

Single 0-10V

Dimmability

0-10V

Ip rating

IP66

Color offering

Black

Mounting options

Plug and Play

Mouting height

N/A

Sensor type

N/A

Warranty

5 year limited warranty

Certification

CE compliant, cULus Listed, DLC listed, FCC, RoHs, UL1376 Gold
