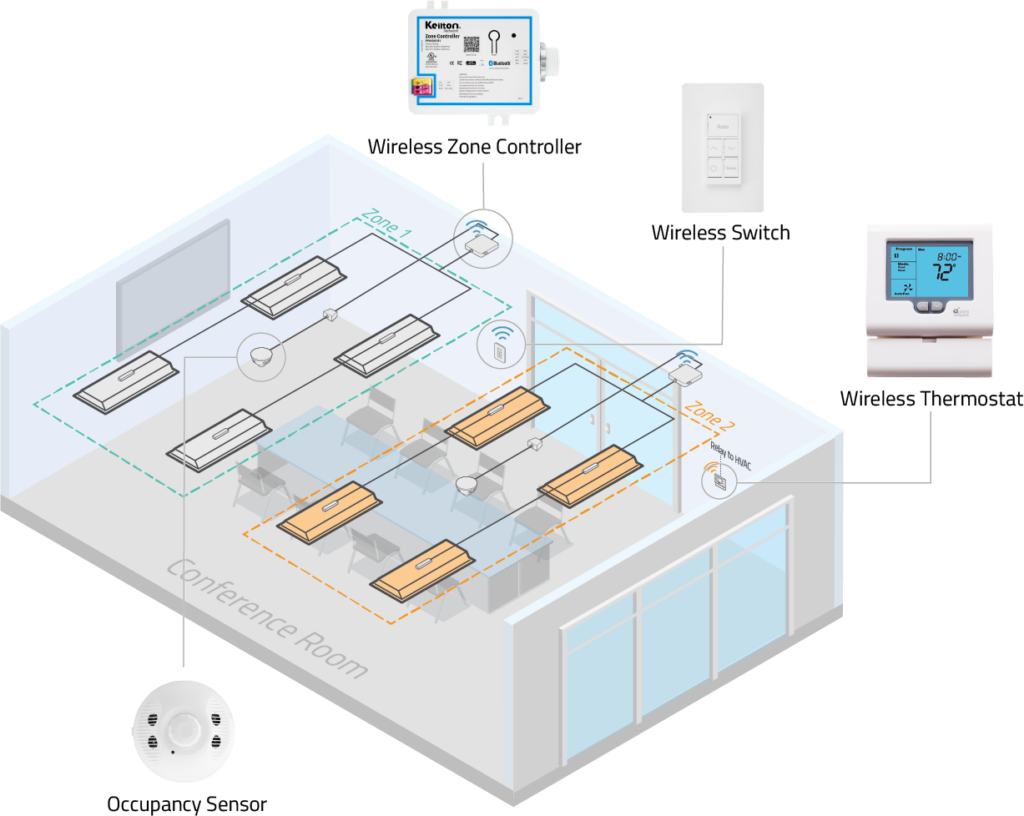

How to set up building automation control systems in a Conference Room

Estimated Total Savings 20-50%

Product Recommendations

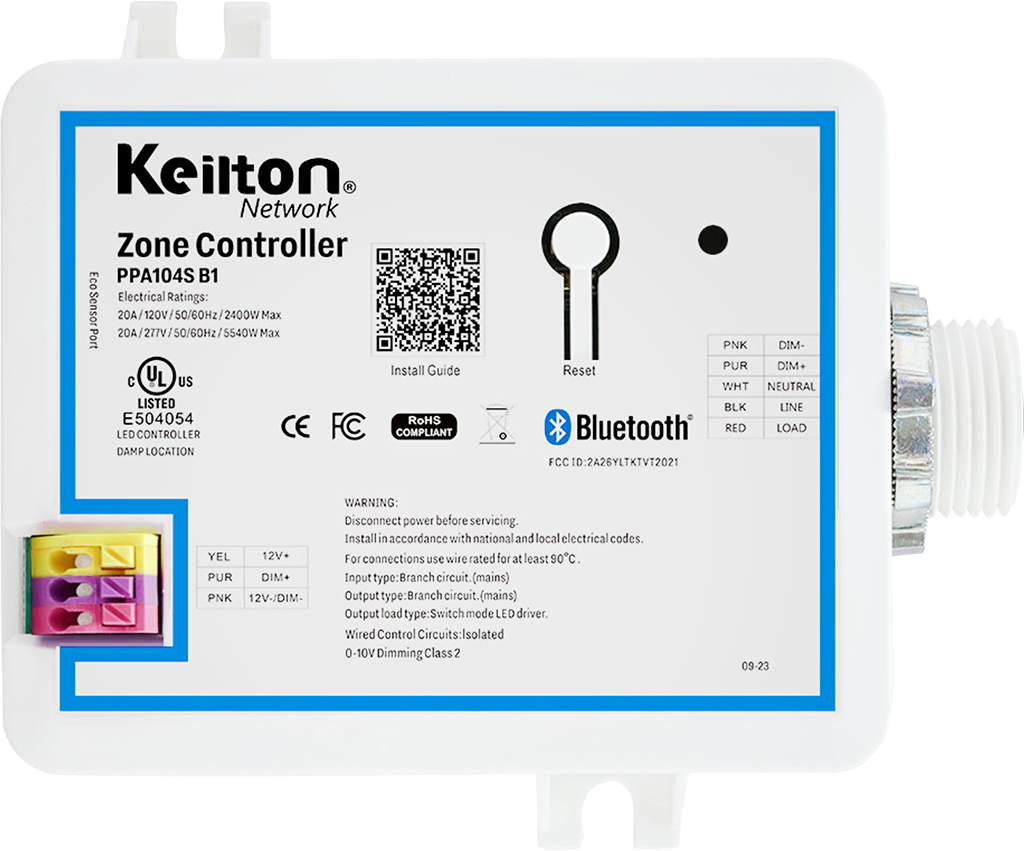

PPA104S.B1 Line Voltage 20A Bluetooth Zone Control
• 120-277VAC input
• Integrated 20A relay
• Output power up to 2,400W (120VAC), 5,540W (277VAC)
• UL Plenum Rated
• 1 HP motor load rated

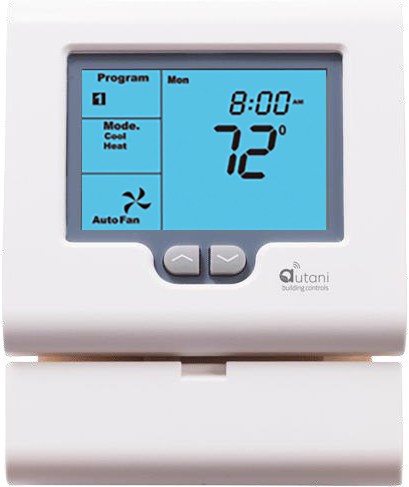

T32P Wireless Thermostat
Centrally controlled and locally integrated with occupancy sensors. Master schedules can be pushed facility-wide or to target thermostats.

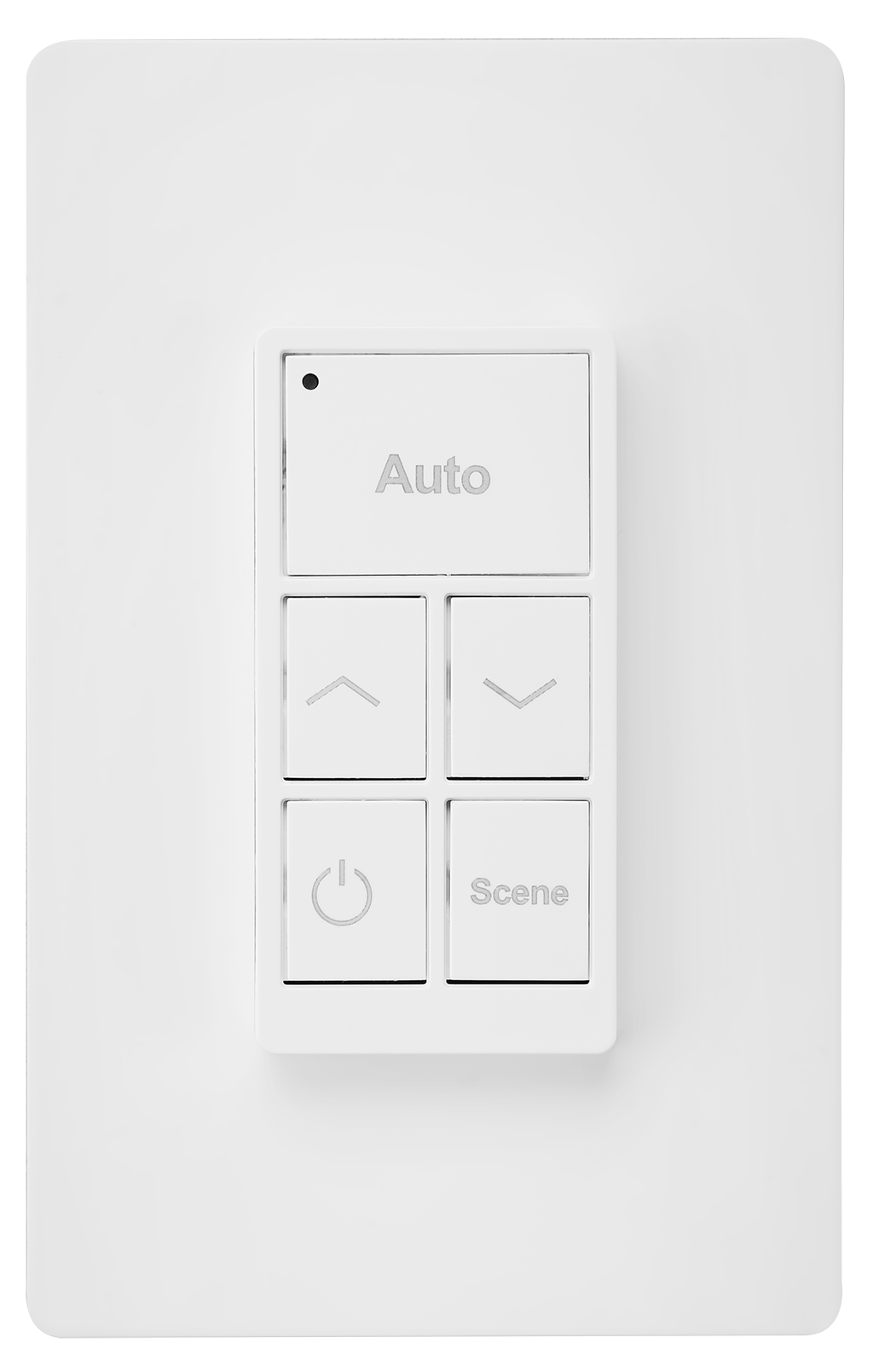

WP1025.B1 (5 Button) Battery-Powered Bluetooth Wall Switch
• Quick push-button control of Keilton+autani devices via Bluetooth
• Powered by a single CR2032 battery
• Approximately 10 years battery life
• Can be wall-mounted or used as portable remote controller
• Can be linked to a light or light group via the Keilton+autani app

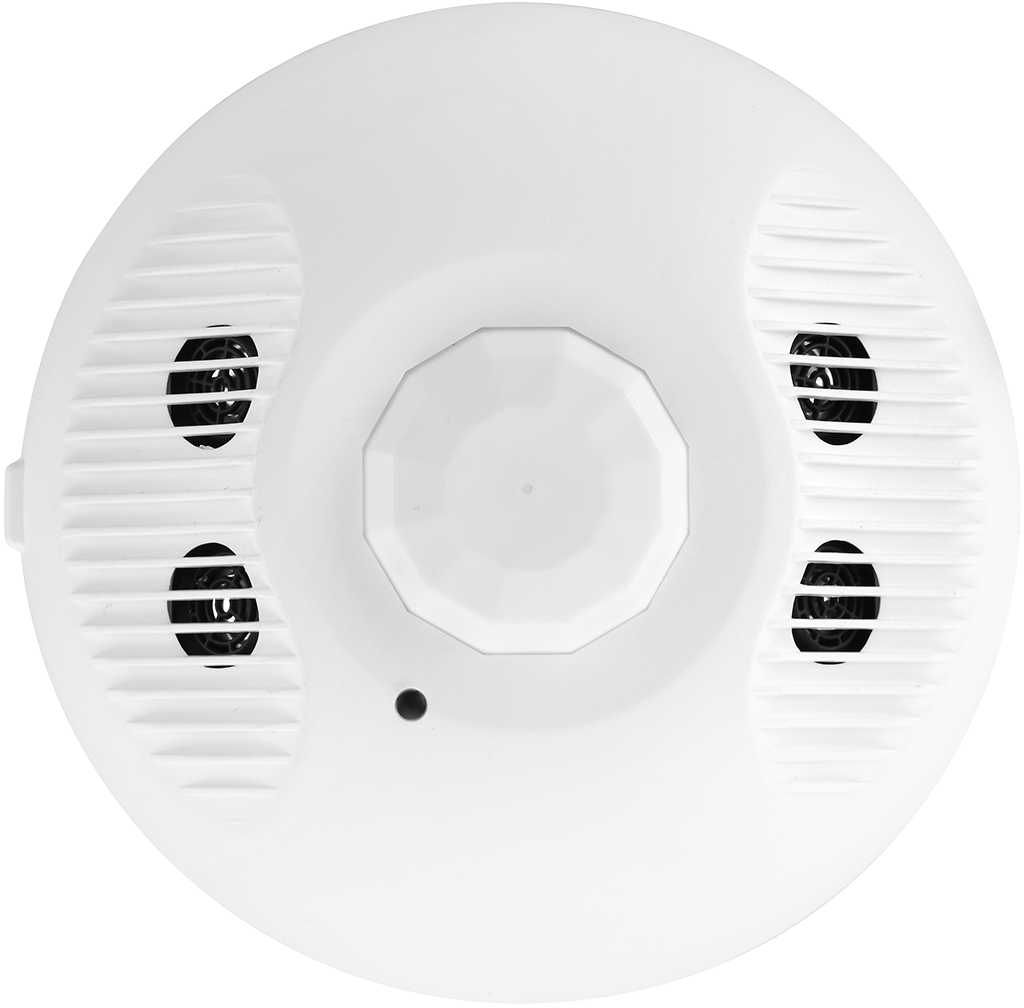

EFS107E.A0 12V Dual-Tech Ceiling Eco Sensor
• 12VDC input
• Powered by power packs (PPA102Sx/PPA104Sx) and connected with low voltage cable
• 600 sq ft room coverage
• Daylight Harvesting
• Dual-tech PIR + Ultrasonic technology provides high accuracy and wide coverage

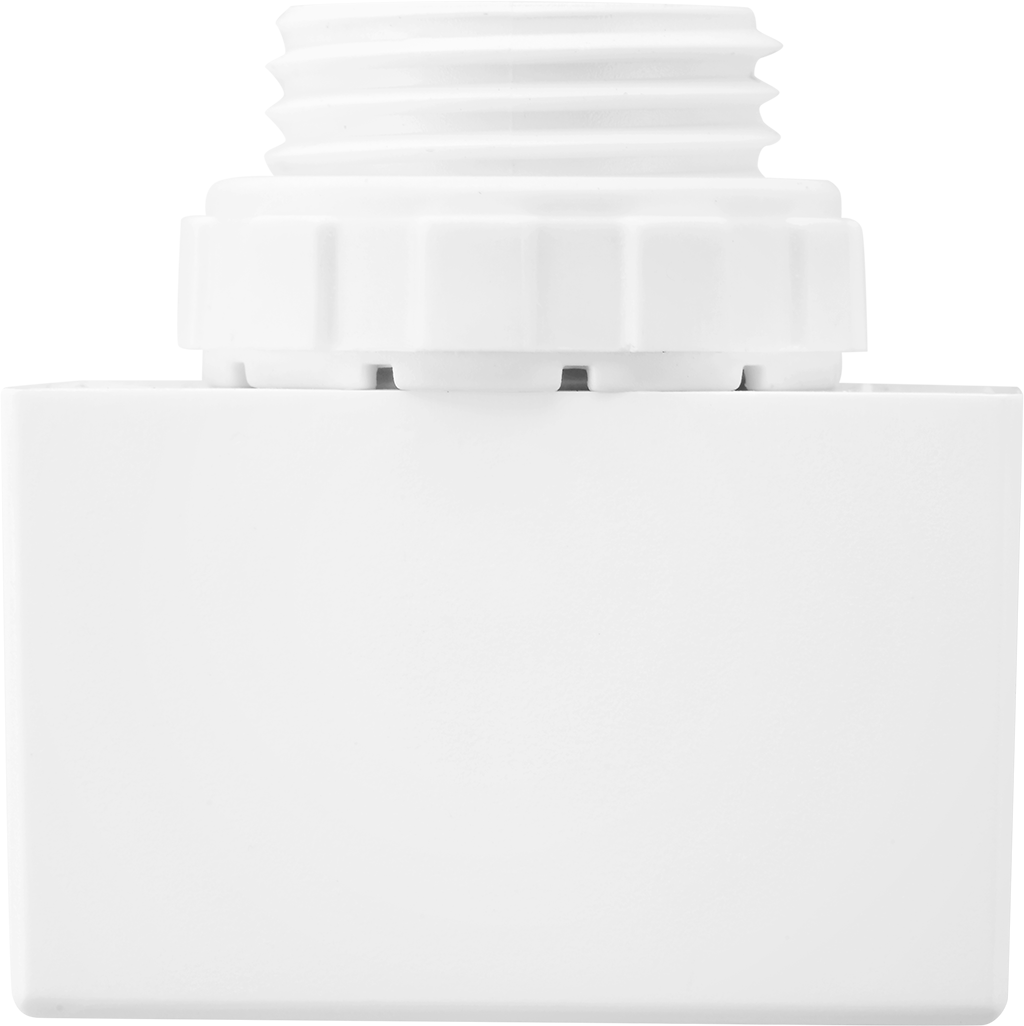

RTP - Tee Adaptor
• Connects from RJ45 to PH2.0
• Supports daisy chaining of multiple sensors
NOTE: Only 1st device in daisy chain can be used for daylight harvesting.

Control Strategies

Occupancy / Vacancy Sensing
Turn lights on when occupants are in a space and off when they vacate the space. Alternate Functionality: Partial-on and manual-on modes are supported for additional savings and for more stringent local codes.
High-End Trim / Institutional Tuning
Set the maximum light level based on customer requirements in each space to prevent overlighting.
Daylight Harvesting
Dim lighting when daylight is available. Multiple zones are supported where required by code.
HVAC Control
Manage smart thermostats and sensors to implement temperature setback of HVAC equipment based upon occupancy or timeclock.
Automatic Scheduling & Timeclock*
Automatically dim or shut off lighting based on centrally managed schedules.
* Requires Autani Manager or CR02-W.A0.
Demand Response*
Manage lighting and HVAC electrical loads to limit ratchet charges and peak demand pricing periods.
* Requires Autani Manager.

Business Outcomes

Improve alertness and bring the environment to life.
Wireless, self-powered sensors and switches provide ultimate flexibility – with freedom to locate as desired.
Log space utilization for insights on operational costs.
Align energy costs with comfort and occupancy requirements.
