BCS107.B1

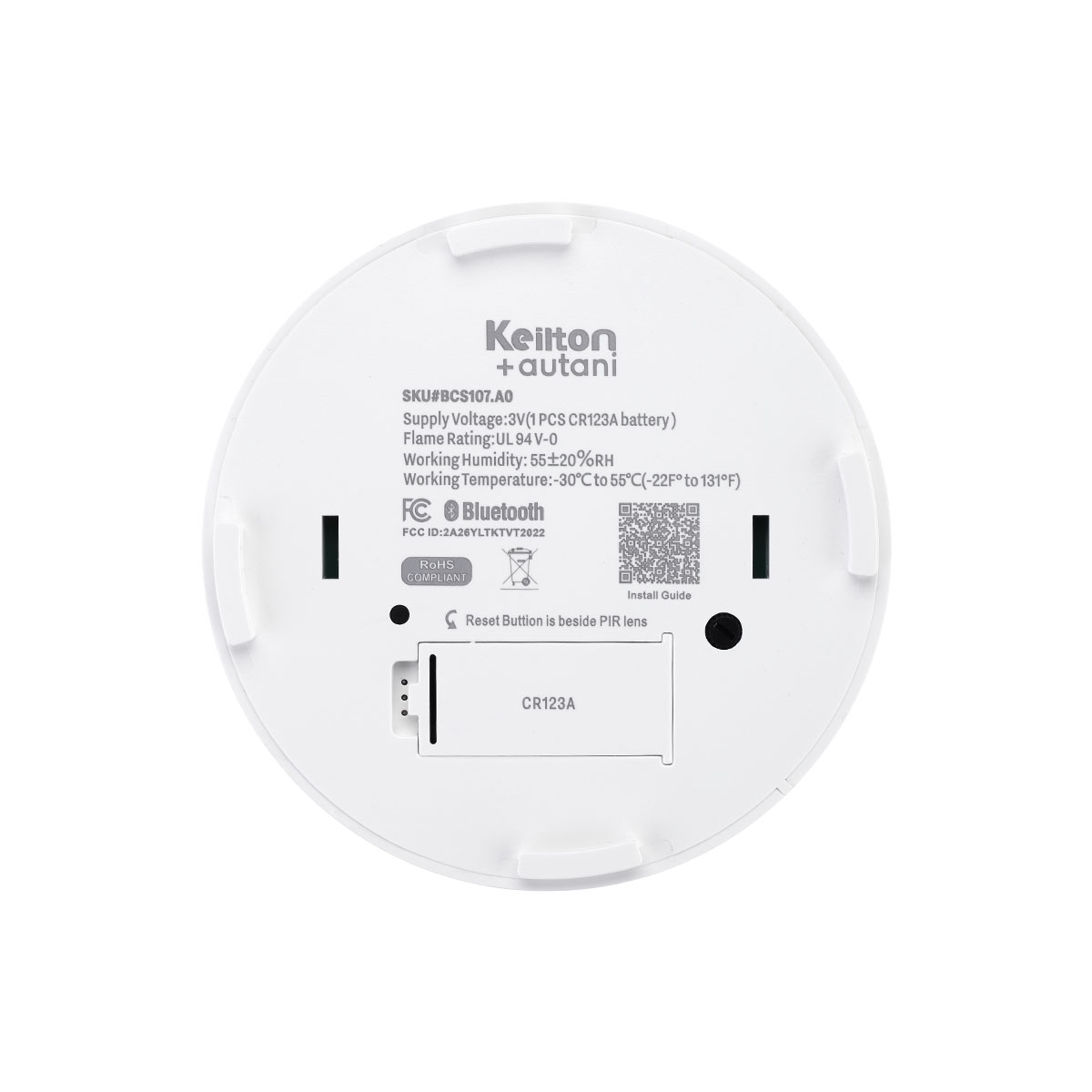

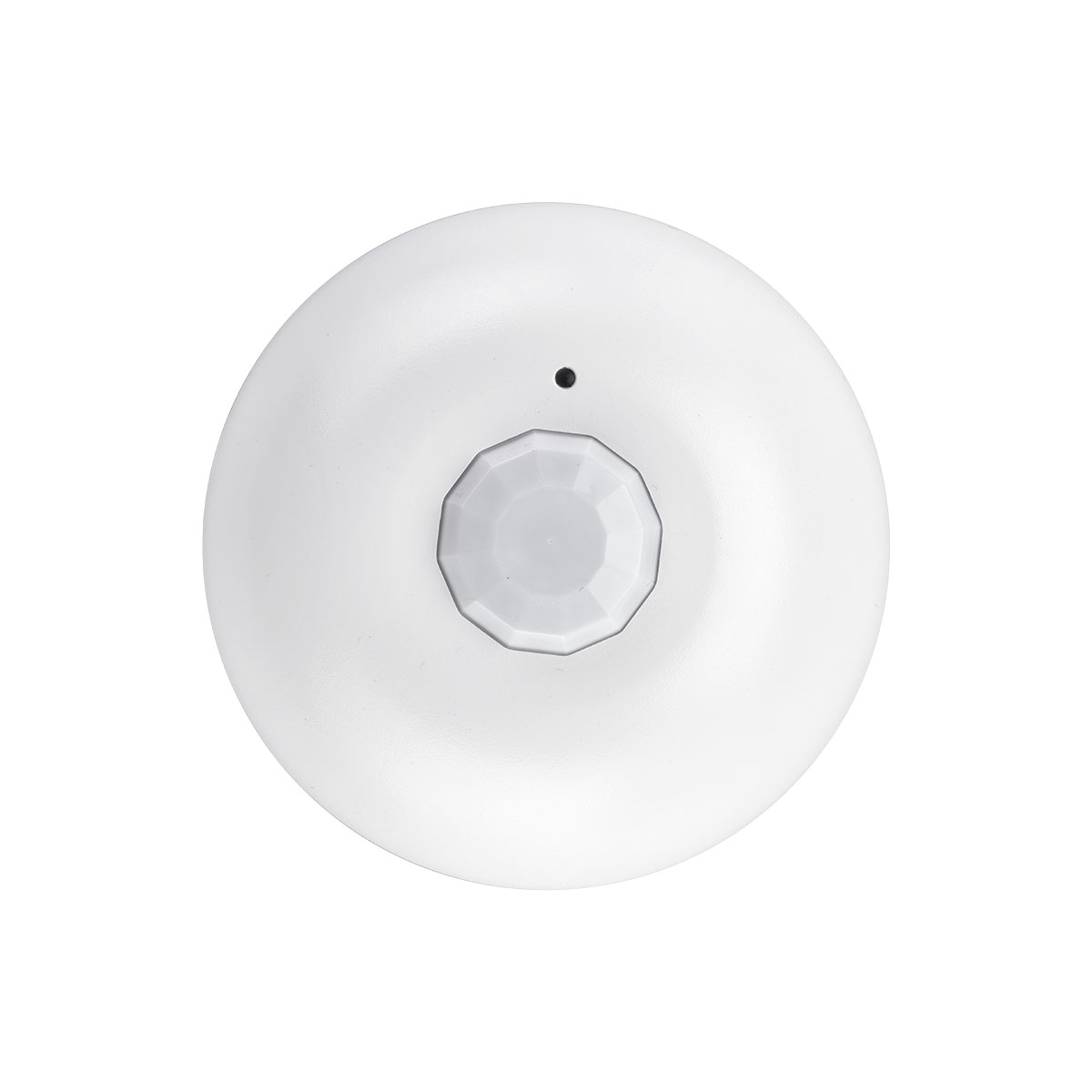

Battery Powered Ceiling Sensor

Product Documents

Features & Benefits

  • PIR + Daylight Harvesting
  • 600 sq ft room coverage
  • Occupancy / vacancy enabled
  • Single CR123A 3V battery power

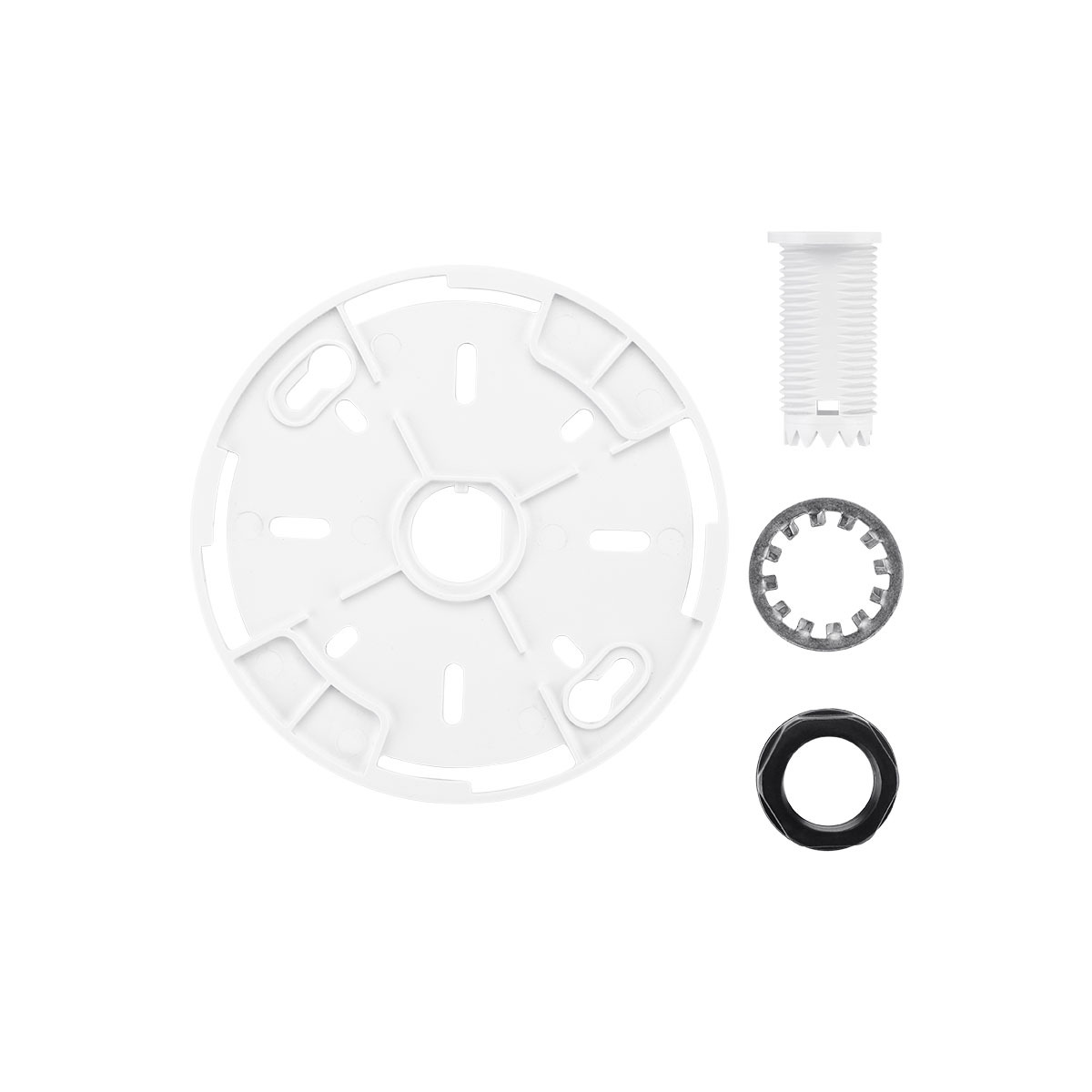

  • Easy installation with multiple mounting options

Specifications

Part Number

BCS107.A0

aaa

aaa

Component type

Sensor

bbb

bbb

Operating Temp

-30 to 55°C (-22°F to 131°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

200ft

Input voltage

3.3V

Aux voltage

N/A

Dimmability

N/A

Ip rating

IP40

Color offering

White

Mounting options

Ceiling Mount

Mouting height

20ft

Sensor type

PIR

Warranty

5 year limited warranty

Certification

DLC listed, FCC, RoHs, UL1376 Gold
