CR02-W-ENCL

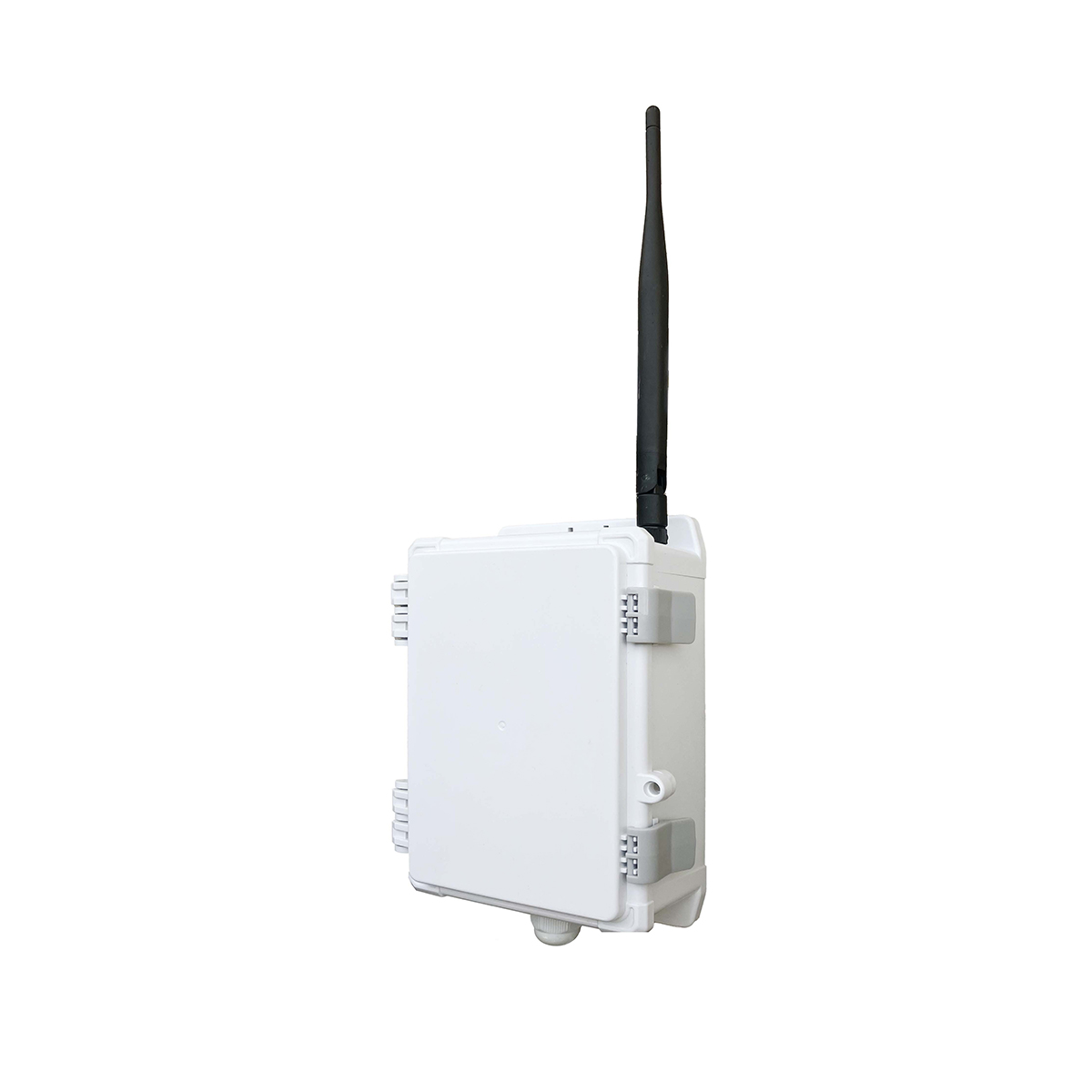

Protected Long-Range RTC USB Dongle Enclosure

Product Documents

Features & Benefits



  • Meets IP65 waterproof standards
  • ABS plastic housing with UL94 V-0 fire rating
  • Integrated surge protection up to 20KA
  • Low power consumption of less than 5W

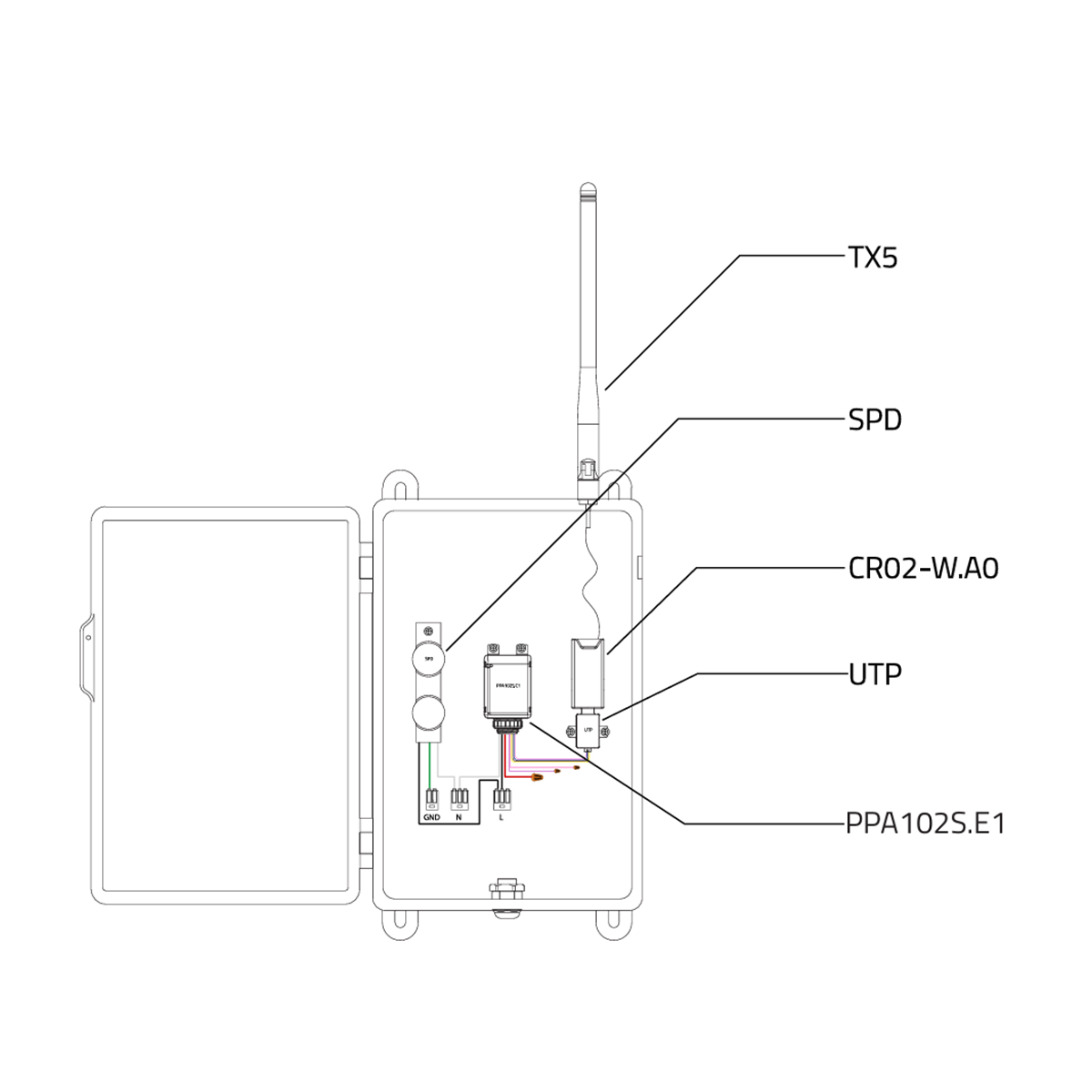

  • Enhanced antenna (TX5 Included) design with Bluetooth transmission up to 1,640ft
  • Includes power supply for CR02-W signal booster operation
  • CR02-W signal booster included
  • Equipped with combination lock

Specifications

Part Number

CR02-W-ENCL

aaa

aaa

Frequency

50/60Hz

Input Voltage

AC120-277V

Input Current

0.04A Max

Input Power

5W Max

Bluetooth Transmit

1640ft Max

Radio Frequency

2.4GHz ± 75MHz

Housing Material

UL 94 V-0

Bluetooth Version

5.0

Indoor/Outdoor Use

Outdoor Use

Operating Temperature

-30°C to 55°C, -22°F to 131°F

Storage Temperature

-30°C to 85°C, -22°F to 185°F

Color

Gray

Warranty

5 year limited warranty
