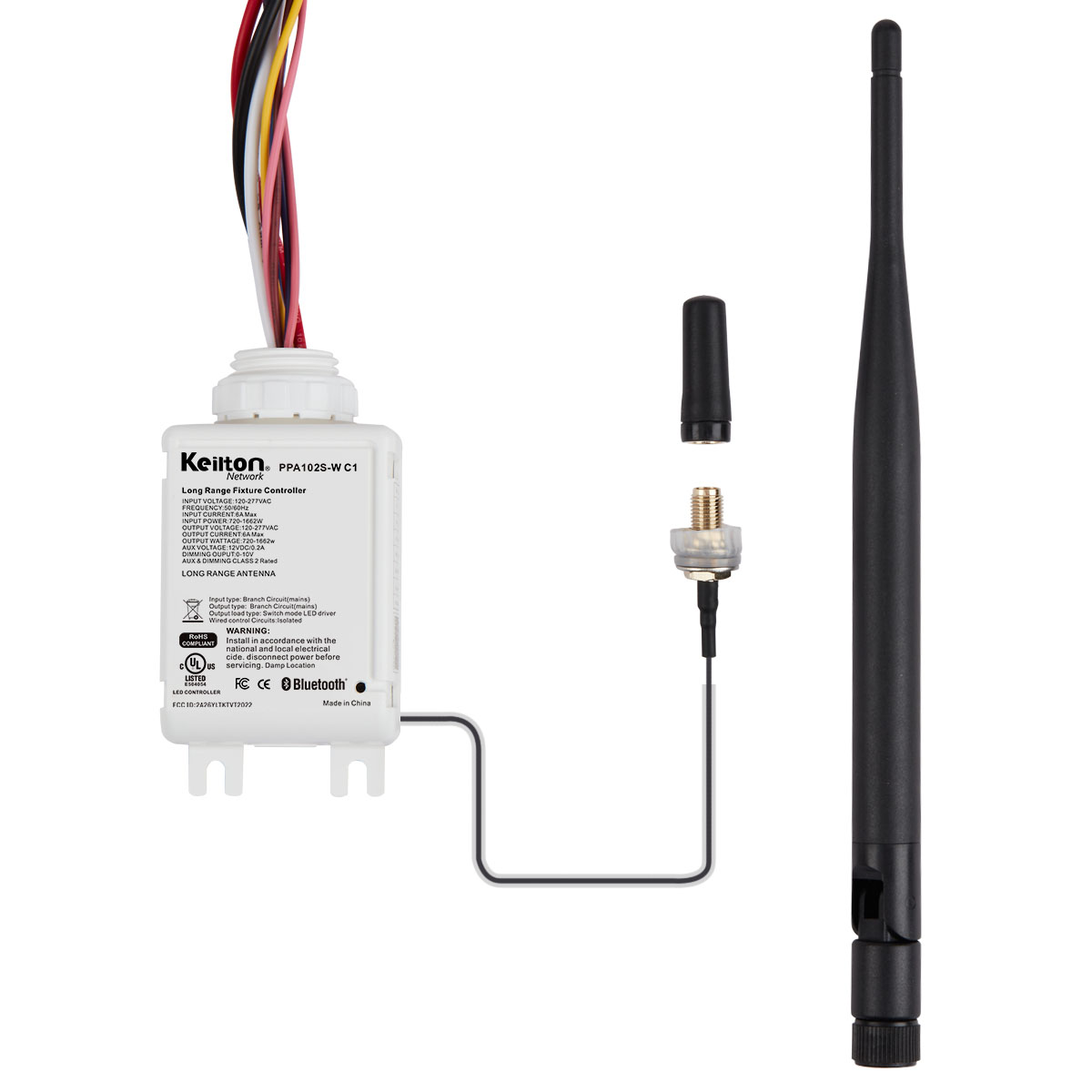

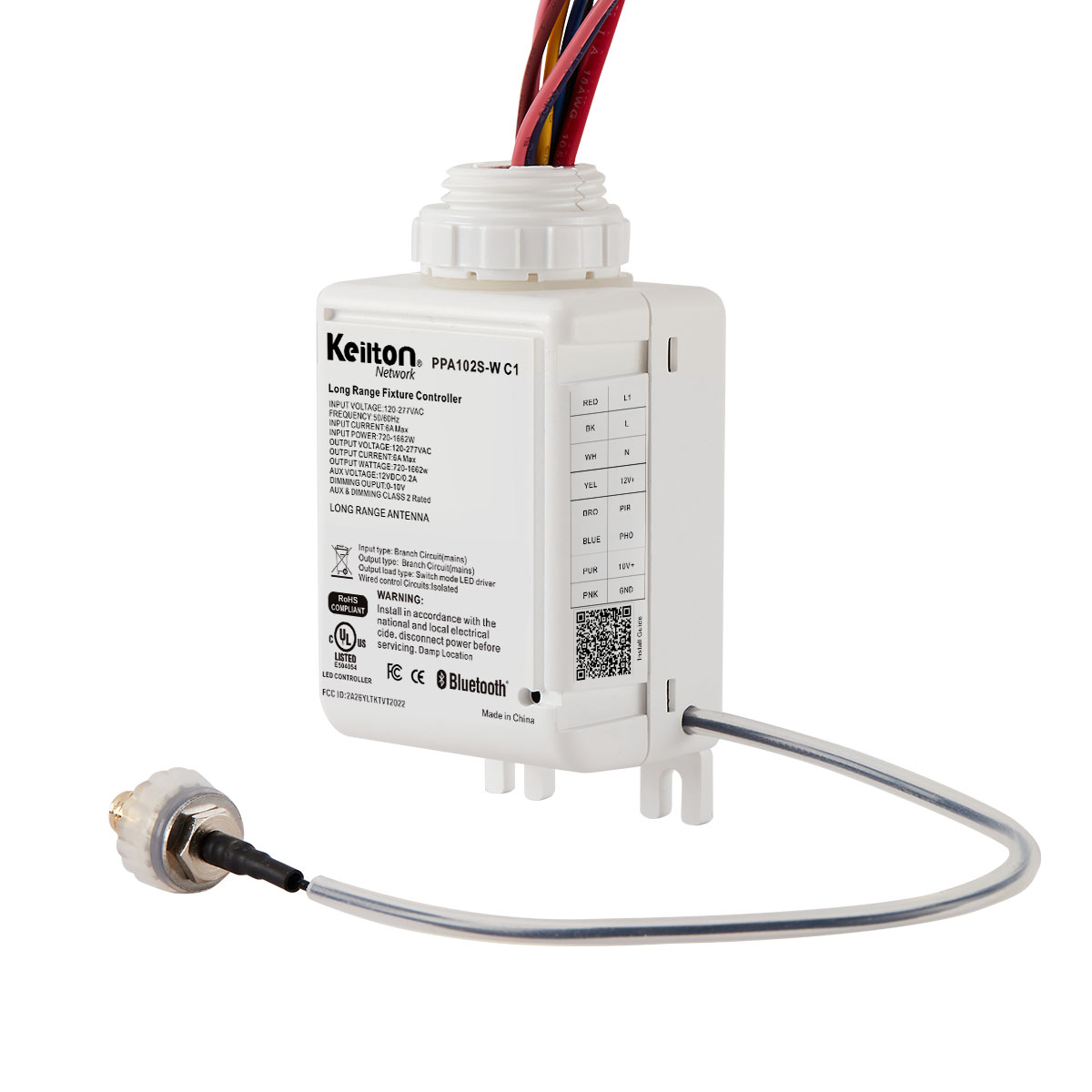

PPA102S-W.C1

Line Voltage 6A BT Fixture Long-Range Controller

Product Documents

Features & Benefits

The PPA102S-W series of long-range antennas helps build a robust lighting control network for outdoor applications by extending the wireless coverage, improving the outdoor motion detection linkage, and facilitating the integration of network sensors. It is also equipped with a relay control and single channel 0-10V dimming control function. The PPA102S-W works seamlessly with devices in the Eco Sensor series and can be easily commissioned via the Keilton+autani app.

  • 120-277VAC Input
  • Includes connection port for long-range antenna with up to 1968 ft Bluetooth transmission range (antenna NOT included)
  • Attaches with standard 1/2″ knockout
  • Provides 0-10VDC dimmable single channel output
  • Supports Keilton+autani Eco Sensors
  • Can be used as a signal booster for entire Bluetooth zone

Specifications

Input Voltage

AC120-277V

Frequency

50/60Hz

Input Current

6A Max

Output Voltage

AC120-277V, 120-347V

Output Current

6A Max

Output Power

720W Max @ 120V, 1662W Max @ 277V, 2082W Max @ 347V

Dimming

Class 2, 0-10V DC 10mA Max

Sinking Current

10mA Max

Bluetooth Transmit

TX1: 984ft Max, TX5: 1968ft Max

Radio Frequency

2.4GHz ± 75MHz

Bluetooth Version

5.0

Housing Material

UL 94-5VA

Indoor/Outdoor Use

Indoor/Outdoor Use

Operating Temperature

-30°C to 65°C (-22°F to 149°F)

Storage Temperature

-30°C to 85°C (-22°F to 185°F)

IP Rating

IP20

Antenna

IP65

Color

White

Warranty

5 year warranty

Compliance

UL8750, UL2043, UL1376, RoHS
