CS107D.B1

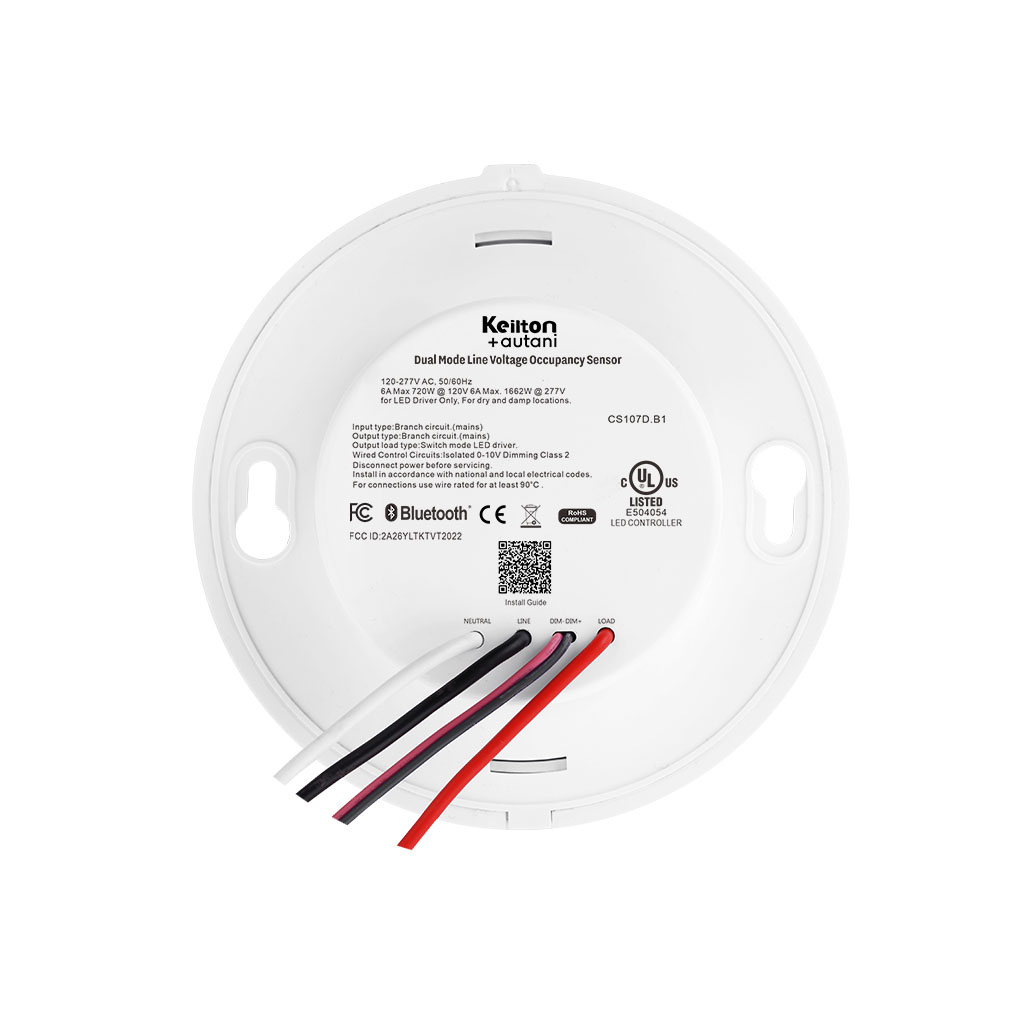

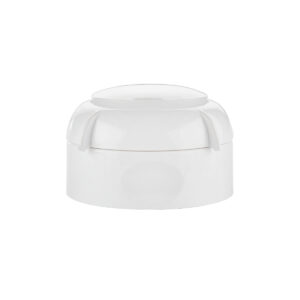

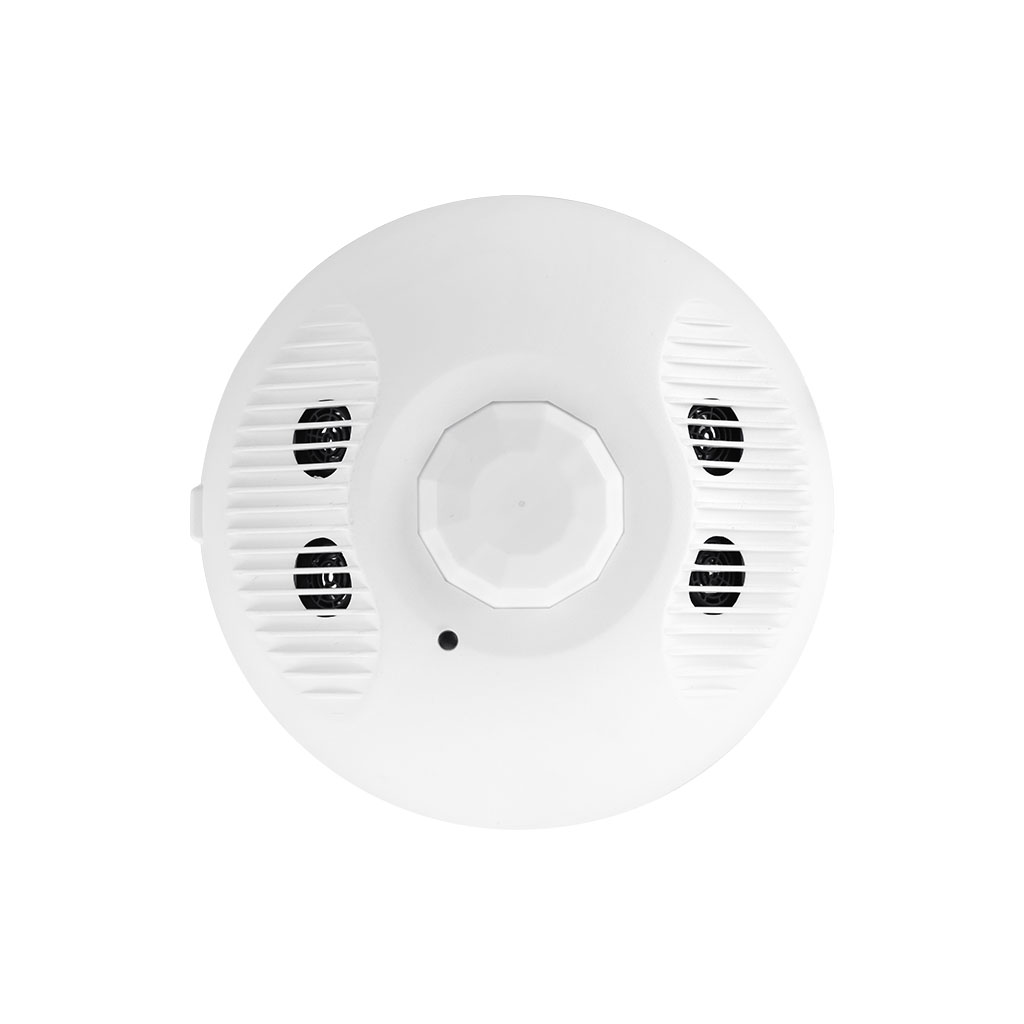

Line Voltage Occupancy Sensor

Product Documents

Features & Benefits

  • 120-277VAC input
  • 600 sq ft room coverage
  • Daylight Harvesting
  • Dual-tech PIR + Ultrasonic technology provides high accuracy and wide coverage
  • Wireless BT connection to other Keilton+autani devices

Specifications

Part Number

CS107D.B1

aaa

aaa

Component type

Sensor

bbb

bbb

Operating Temp

'-30 to 55°C (-22°F to 131°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

100ft

Input voltage

120-277V, 120V

Aux voltage

N/A

Control

Relay, Single 0-10V

Dimmability

0-10V

Ip rating

IP20

Color offering

White

Mounting options

Ceiling Mount

Mouting height

20ft

Sensor type

Dual Technology, PIR, Ultrasonic

Warranty

5 year limited warranty

Certification

CE compliant, cULus Listed, DLC listed, FCC, RoHs, UL1376 Gold
