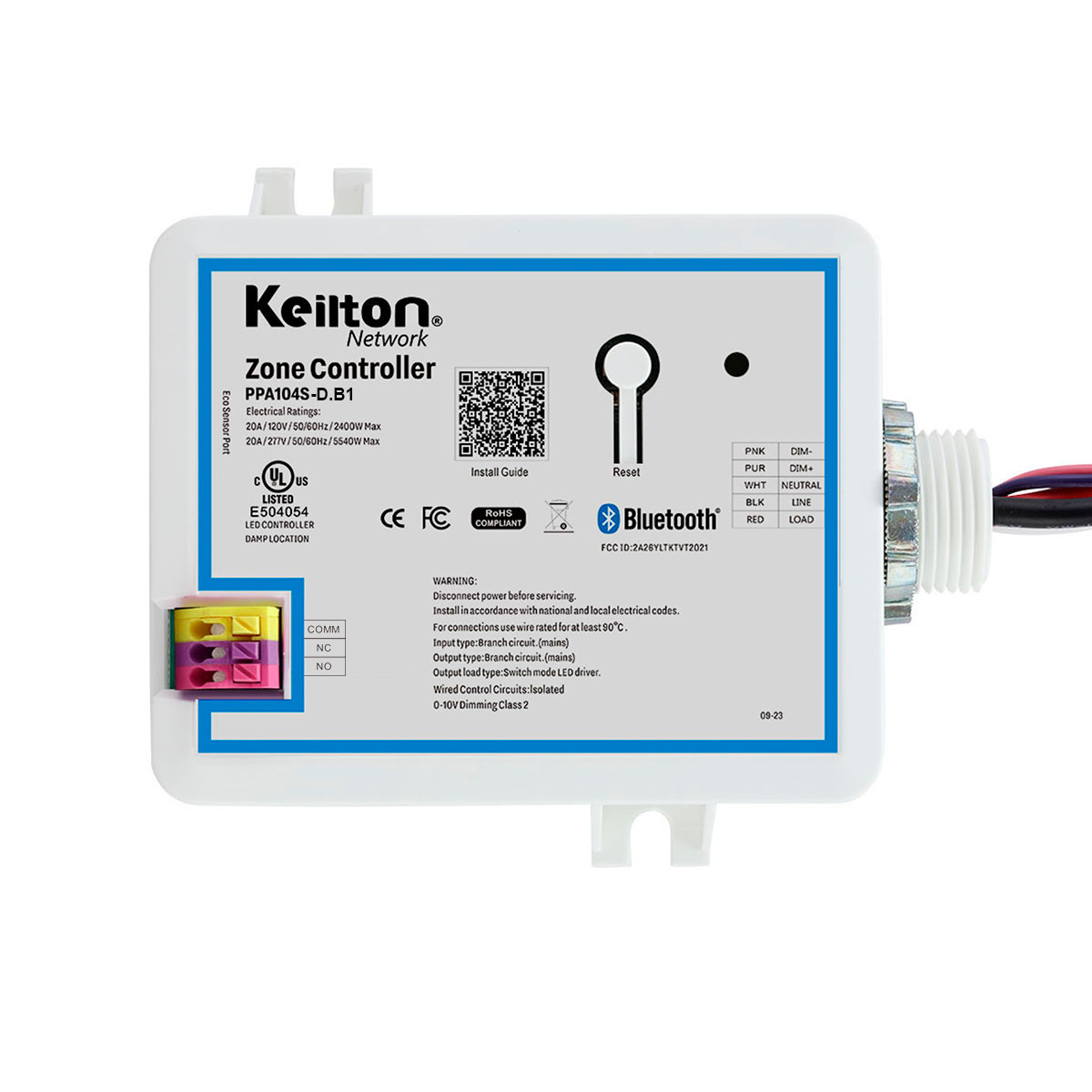

PPA104S-D.B1

Line Voltage 20A BT Zone Controller with Dry Contact Port

Product Documents

Features & Benefits

PPA104S-D provides dry contact output (normal open/normal close) which may send signals to 3rd party systems for integration, such as HVAC, surveillance.3rd party systems may utilize the wireless mesh communication technology and the ubiquitous motion sensoring capability of Keilton products to provide convenient and automated operations to users.

  • Dry contact output, 3A max pass through current. COMM/NC for normal close, COMM/NO for normal open.
  • Relay output, up to 20A max current.
  • 0-10V dimming output, max sinking current 48.5mA.
  • Plenum Rated UL2043.
  • Can work with other Keilton Devices.

Specifications

Part Number

PPA104S-D.B1

aaa

aaa

Component type

Controller

bbb

bbb

Operating Temp

'-30 to 55°C (-22°F to 131°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

200ft

Input voltage

120-277V, 120V

Aux voltage

N/A

Control

Dry Contact, Relay, Single 0-10V

Dimmability

0-10V

Ip rating

IP20

Color offering

White

Mounting options

Fixture KO, Junction Box

Mouting height

N/A

Sensor type

Eco Sensor Port

Warranty

5 year limited warranty

Certification

CE compliant, cULus Listed, DLC listed, FCC, Plenum Rated, RoHs, UL1376 Gold
