EFS104.A0

External Line Voltage High Bay Sensor

Product Documents

Features & Benefits

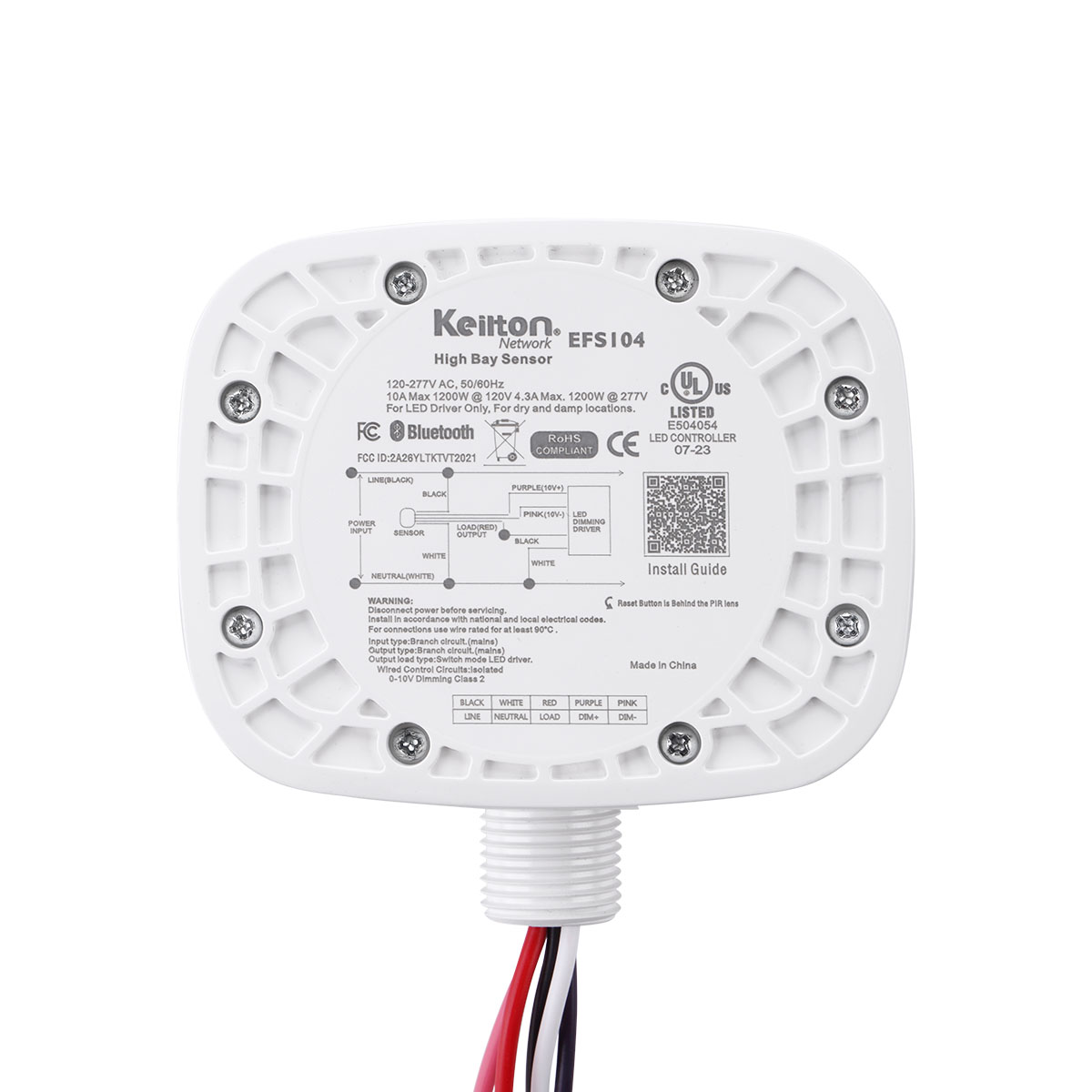

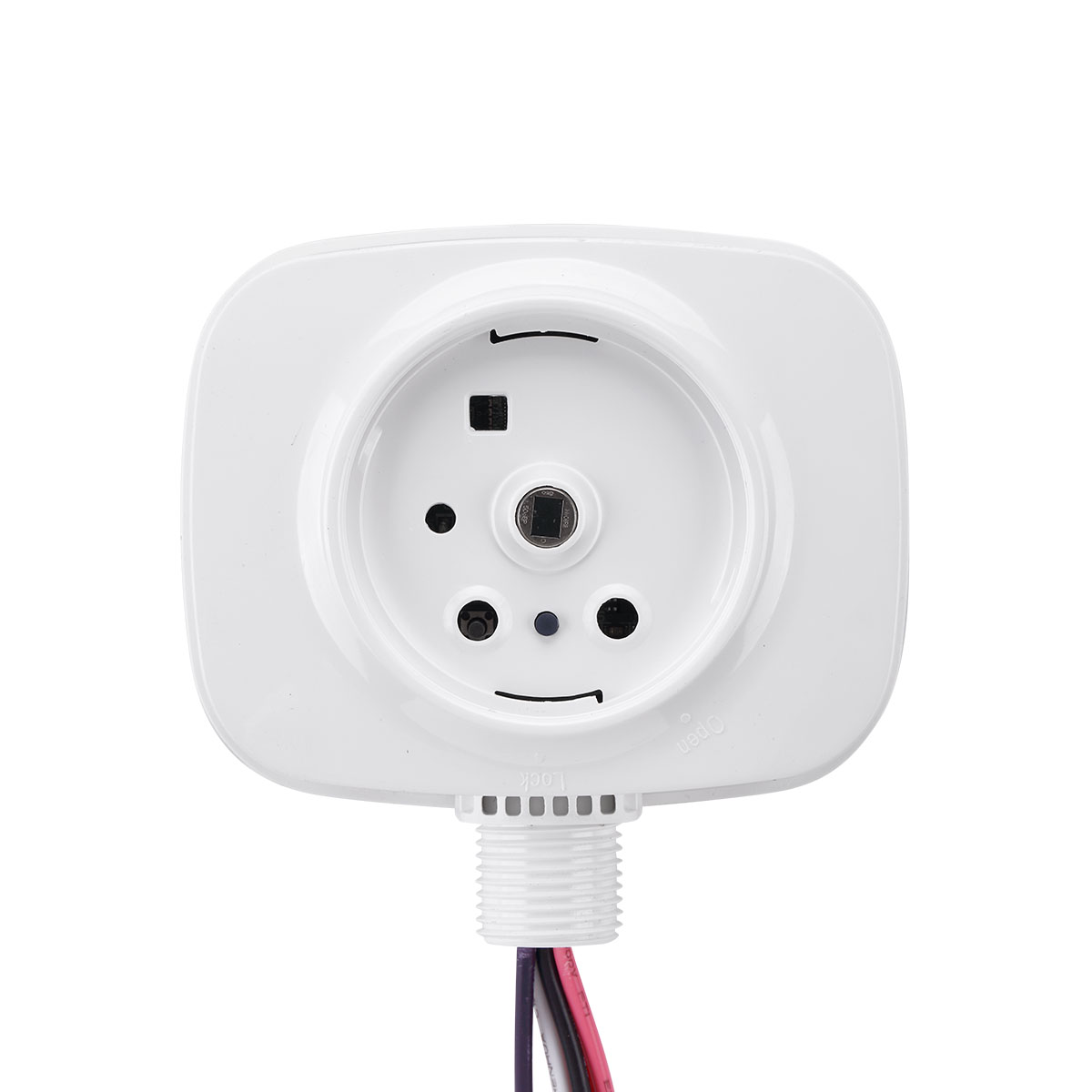

The Keilton AC High Bay PIR Sensor and Controller EFS104 is compatible to other Keilton Devices which utilizes Bluetooth technology for reliable and secure wireless communication. EFS104 has been equipped AlgoH™ algorithm to maximum the detection range up to 40ft high without false trigger.

  • 120-277VAC input
  • Connects with 1/2″ standard knockout
  • Daylight Harvesting
  • BT PIR analog sensor with AlgoH™ algorithm to maximize detection without false trigger
  • Replaceable lens options

Note: Lens sold separately

Specifications

Part Number

EFS104.A0

aaa

aaa

Component type

Sensor

bbb

bbb

Operating Temp

'-30 to 55°C (-22°F to 185°F)

Technology

Bluetooth v4.2

Radio Frequency

2.4G Hz

Range

200ft

Input voltage

120-277V, 120V

Aux voltage

N/A

Control

Relay, Single 0-10V

Dimmability

0-10V

Ip rating

IP40

Color offering

White

Mounting options

Fixture KO

Mouting height

40ft

Sensor type

Daylight Harvesting, PIR

Warranty

5 year limited warranty

Certification

CE compliant, cULus Listed, DLC listed, FCC, RoHs, UL1376 Gold
