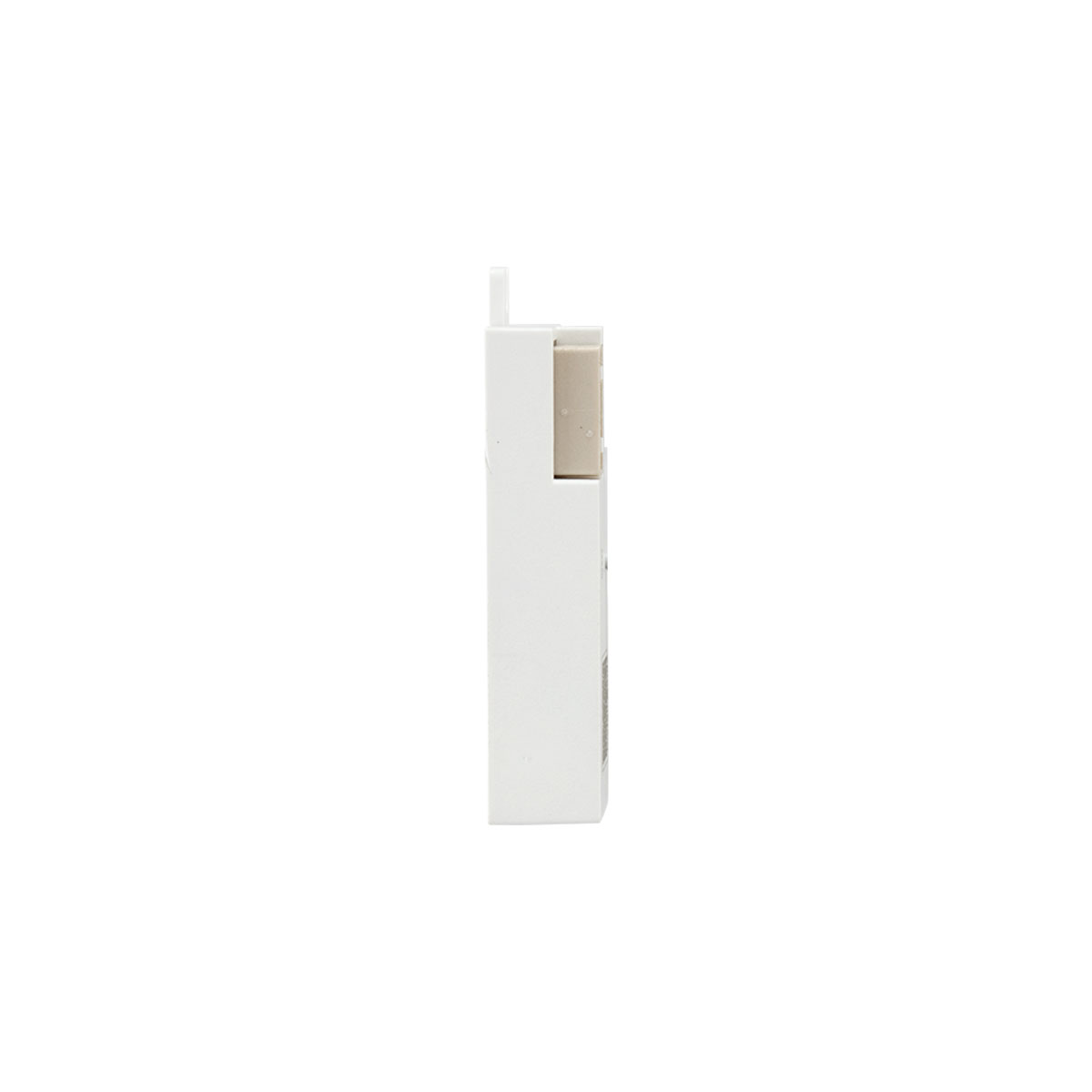

FA102-W.B2

Fixture Adapter & Signal Booster

Product Documents

Features & Benefits

  • 12VDC input
  • Integral Bluetooth module

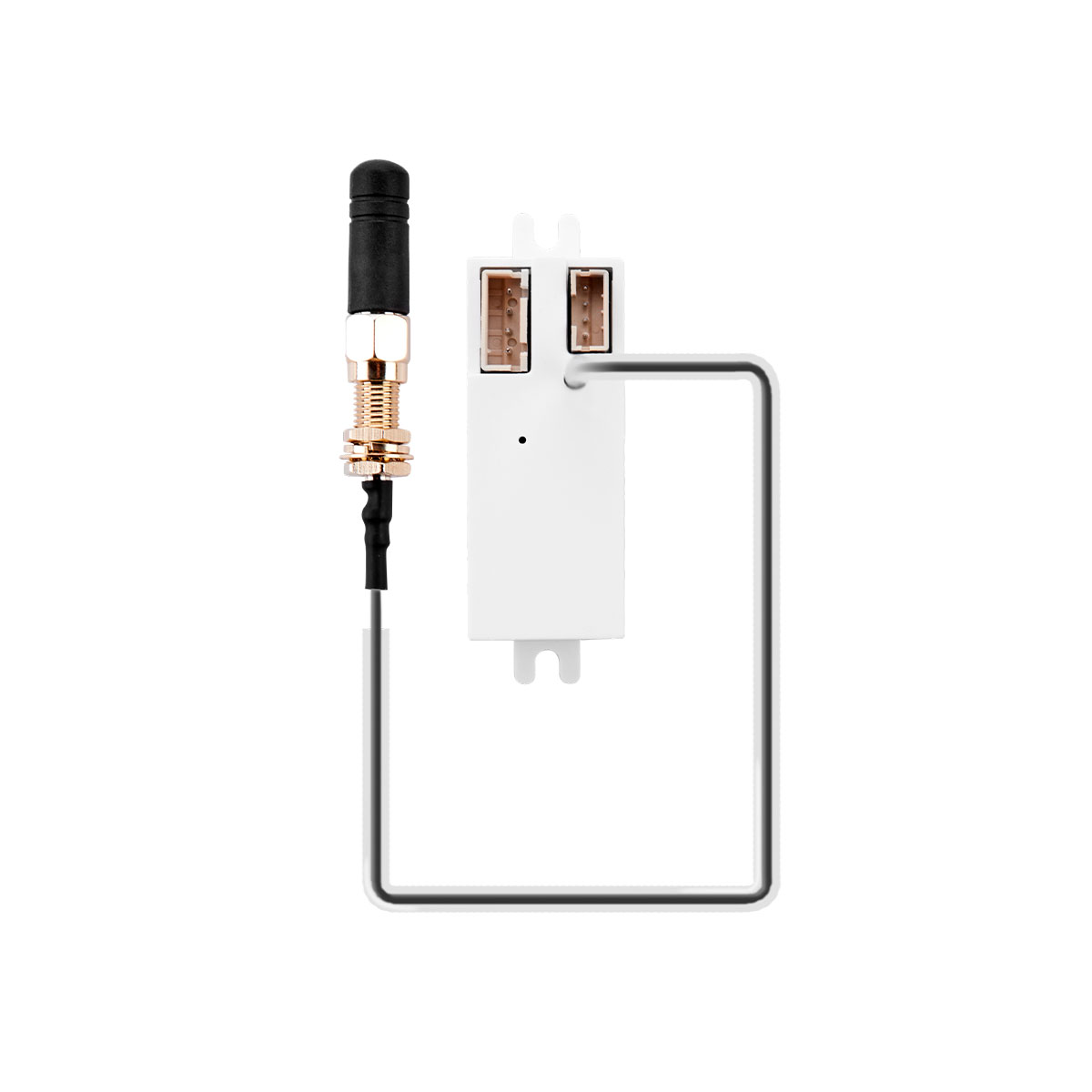

  • Includes connection port for long-range antenna with up to 1640 ft Bluetooth transmission range (antenna NOT included)
  • Designed for integration into luminaires to provide luminaire level lighting control (LLLC)
  • Sensor-ready attachment port for Keilton+autani Eco Sensors
  • 0-10V output

Specifications

Part Number

FA102-W.B2

aaa

aaa

Component type

Controller

bbb

bbb

Operating Temp

'-30 to 65°C (-22°F to 149°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

800ft

Input voltage

12V

Aux voltage

N/A

Control

Dual 0-10V

Dimmability

0-10V

Ip rating

IP66

Color offering

White

Mounting options

Fixture Integrated

Mouting height

N/A

Sensor type

N/A

Warranty

5 years limited warranty

Certification

CE compliant, cULus Recognized, DLC listed, FCC, RoHs, UL1376 Gold
