Integrated 12V BT Long-Range Fixture Adapter
Features & Benefits

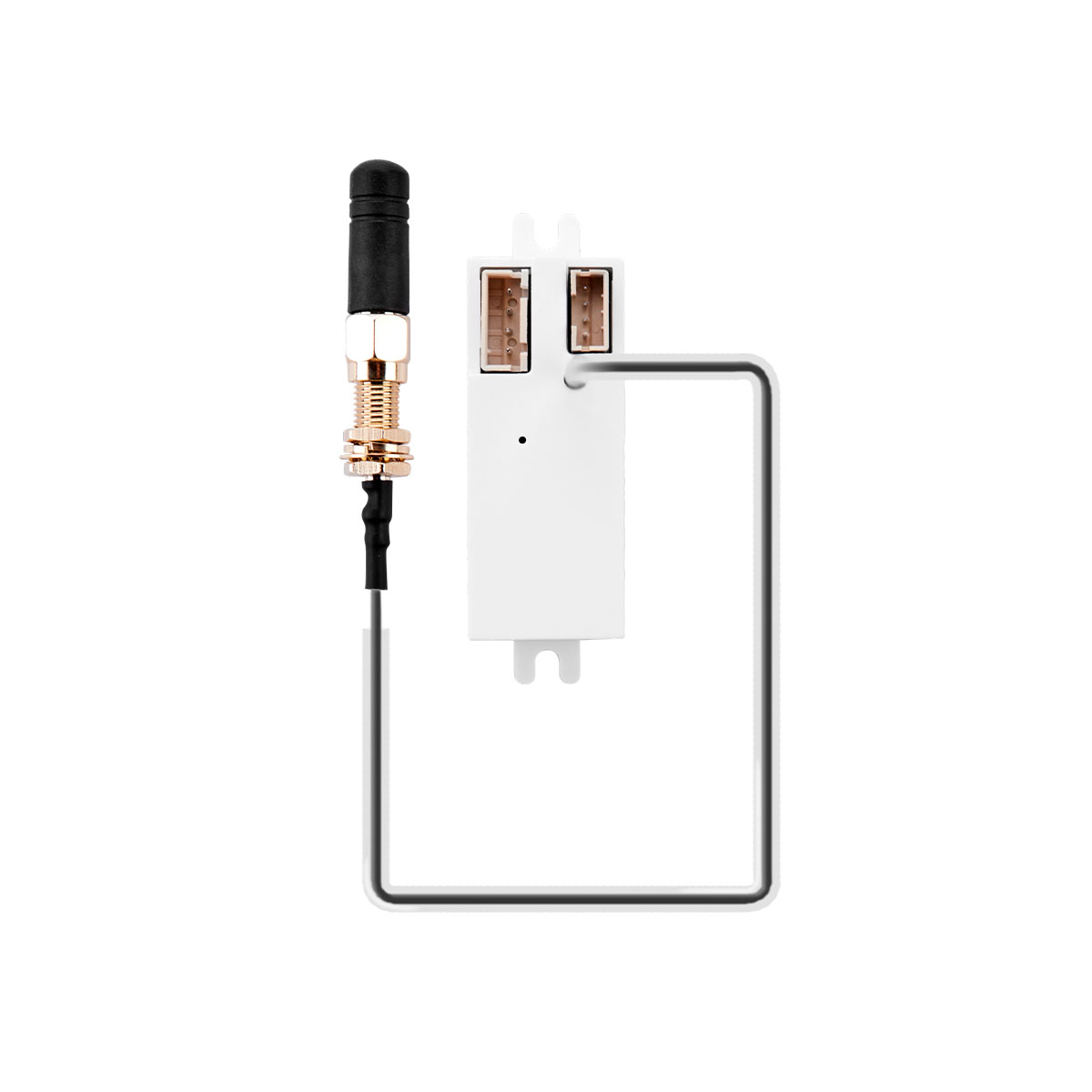

Keilton FA102-W fixture adapters are designed to increase the Bluetooth signal in a networked lighting control system, especially for outdoor applications. They feature an external long-range antenna that extends wireless coverage for outdoor motion detection linkage.
- 12VDC input
- Integral Bluetooth module
- Includes connection port for long-range antenna with up to 1640 ft Bluetooth transmission range (antenna NOT included)
- Designed for integration into luminaires to provide luminaire level lighting control (LLLC)
- Sensor-ready attachment port for Keilton+autani Eco Sensors
- 0-10V output
* Note: Not all application environments will necessarily be able to achieve max signal range due to factors such as signal obstructions, interference, and luminaire/housing design. Testing is recommended to ensure performance for the applications.
Specifications
Part Number
FA102-W.C1
aaa
photosensitive
Component Type
controller
bbb
bbb
Technology
bluetooth-v5-0
Radio Frequency
2.4G Hz
Transmission Range
800ft
Input Voltage
12v
Aux Voltage
n-a
Control Output
single-0-10v
Dimmability
0-10v
Color Offering
white
Mounting Height
n-a
Sensor Type
n-a
Warranty
5 year limited warranty
Certification
fcc, ce-compliant, culus-recognized, dlc-listed, rohs, ul1376-gold
