IFS101.A0

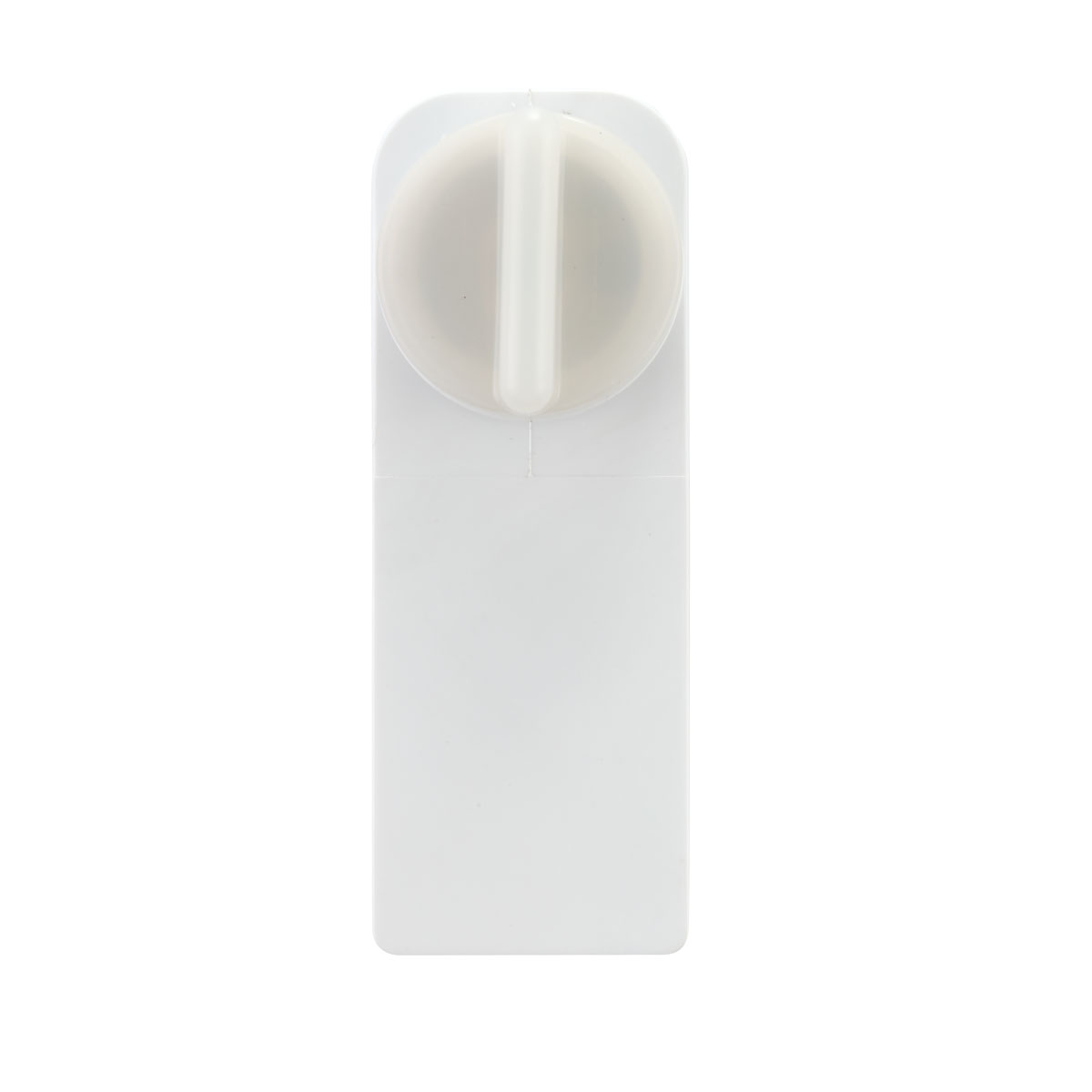

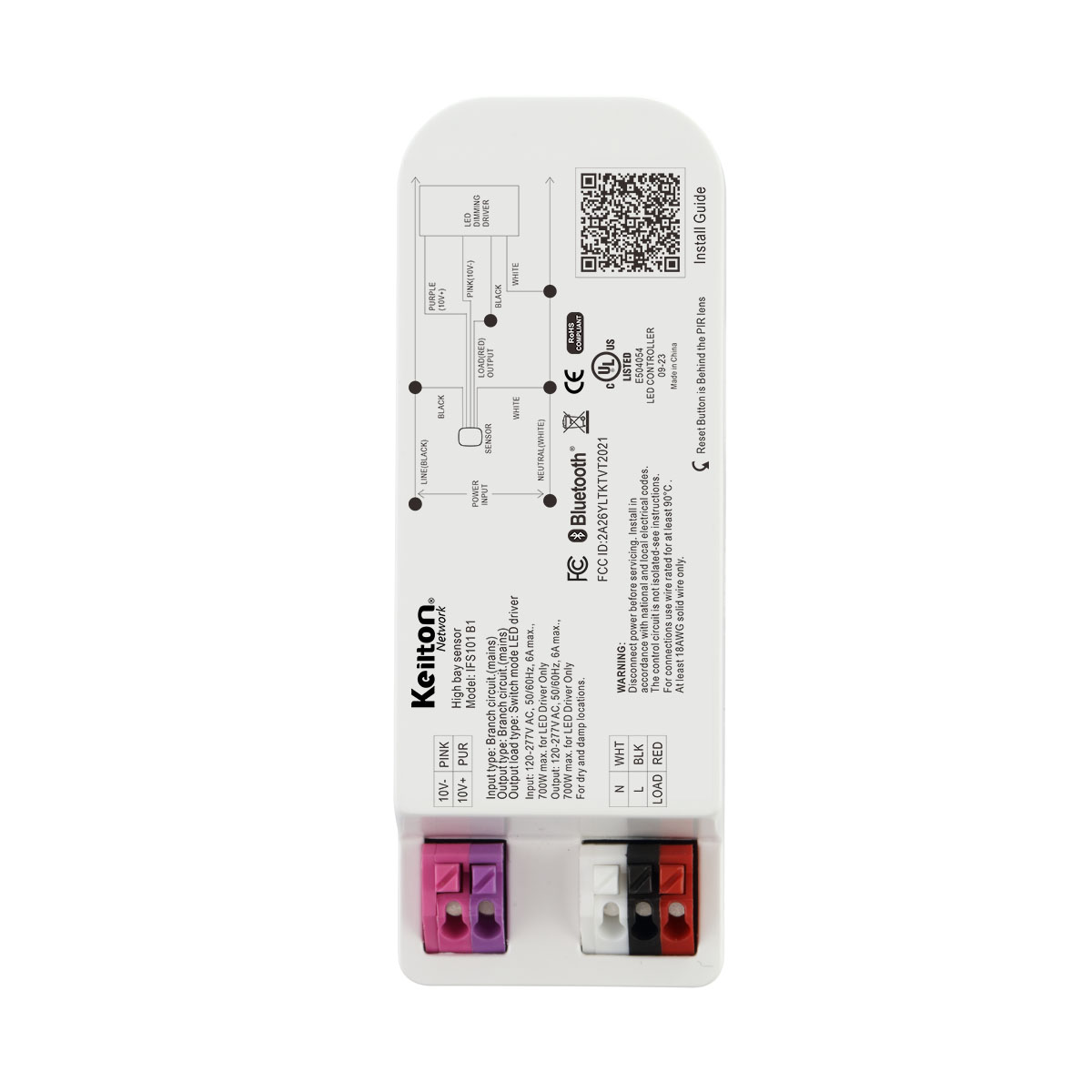

Internal Line Voltage High Bay Sensor

Product Documents

Features & Benefits

The IFS101 is AC powered integrated High Bay sensor, can be widely used for HighBay or other outdoor luminaires. IFS101 Equipped AlgoH™ algorithm to maximize the detection in High Bay application. IFS101 suits very common 1.30″ knock out hole for OEM manufacturer pre-installation.

  • 120-277VAC Input
  • Daylight Harvesting
  • Analog PIR BT sensor with AlgoH™ algorithm to prevent false triggers

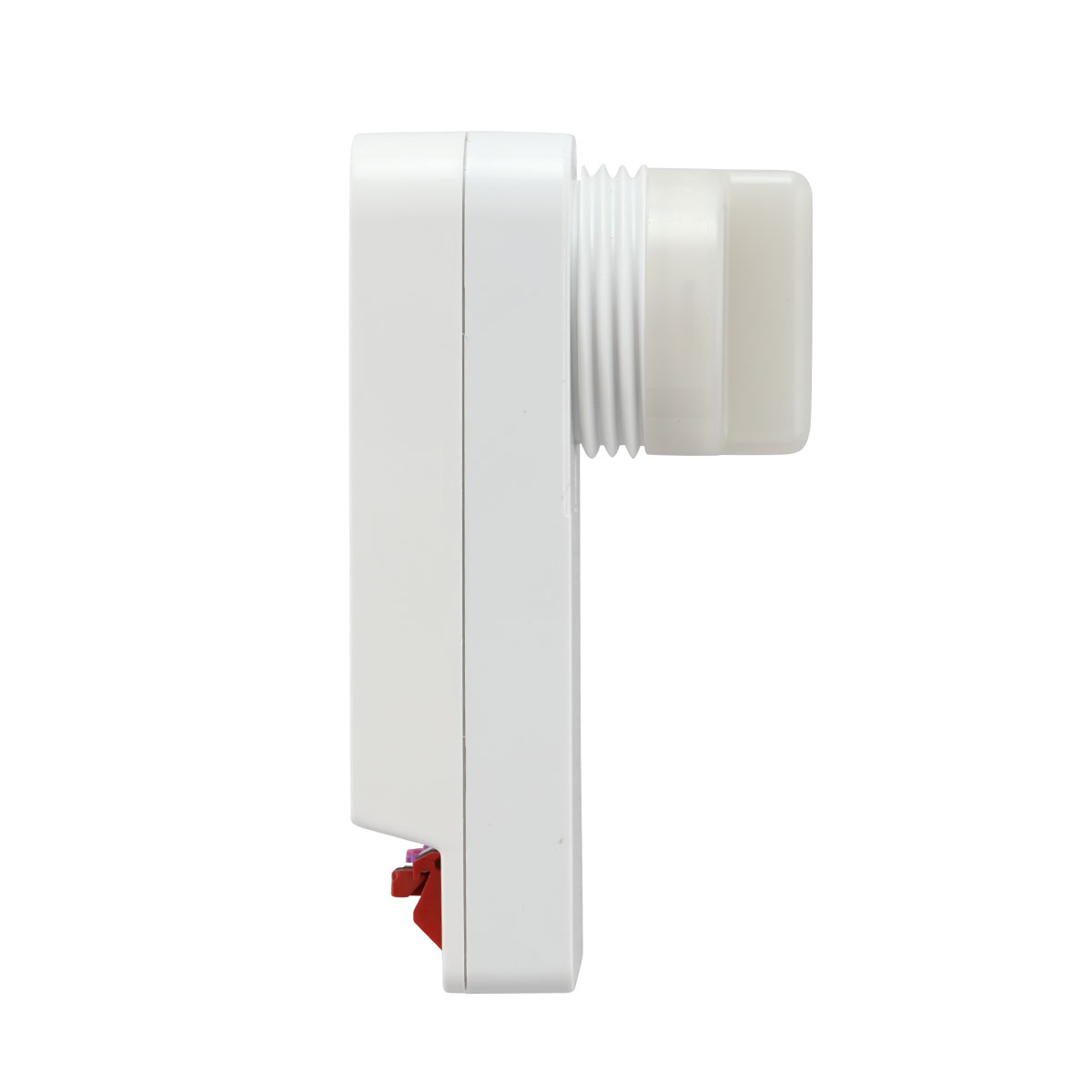

  • Designed for OEM luminaire manufacturing applications with 1.3″ knockout

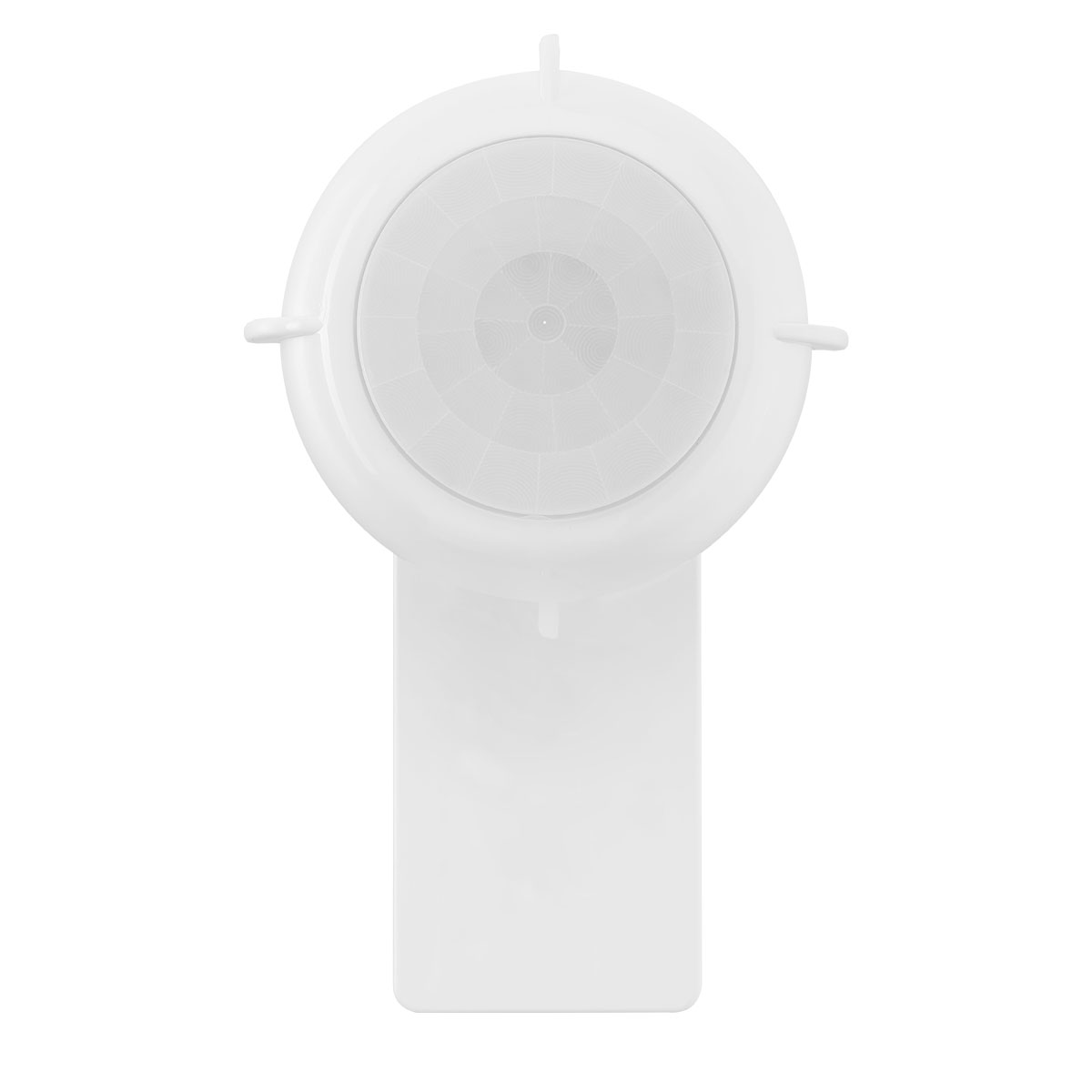

Note: Lens sold separately

Specifications

Part Number

IFS101.A0

aaa

aaa

Component type

Sensor

bbb

bbb

Operating Temp

-30 to 55°C (-22°F to 131°F)

Technology

Bluetooth v4.2

Radio Frequency

2.4G Hz

Range

200ft

Input voltage

120-277V, 120V

Aux voltage

N/A

Control

Relay, Single 0-10V

Dimmability

0-10V

Ip rating

IP40

Color offering

White

Mounting options

Fixture Integrated

Mouting height

40ft

Sensor type

Daylight Harvesting, PIR

Warranty

5 year limited warranty

Certification

CE compliant, cULus Listed, DLC listed, FCC, RoHs, UL1376 Gold
