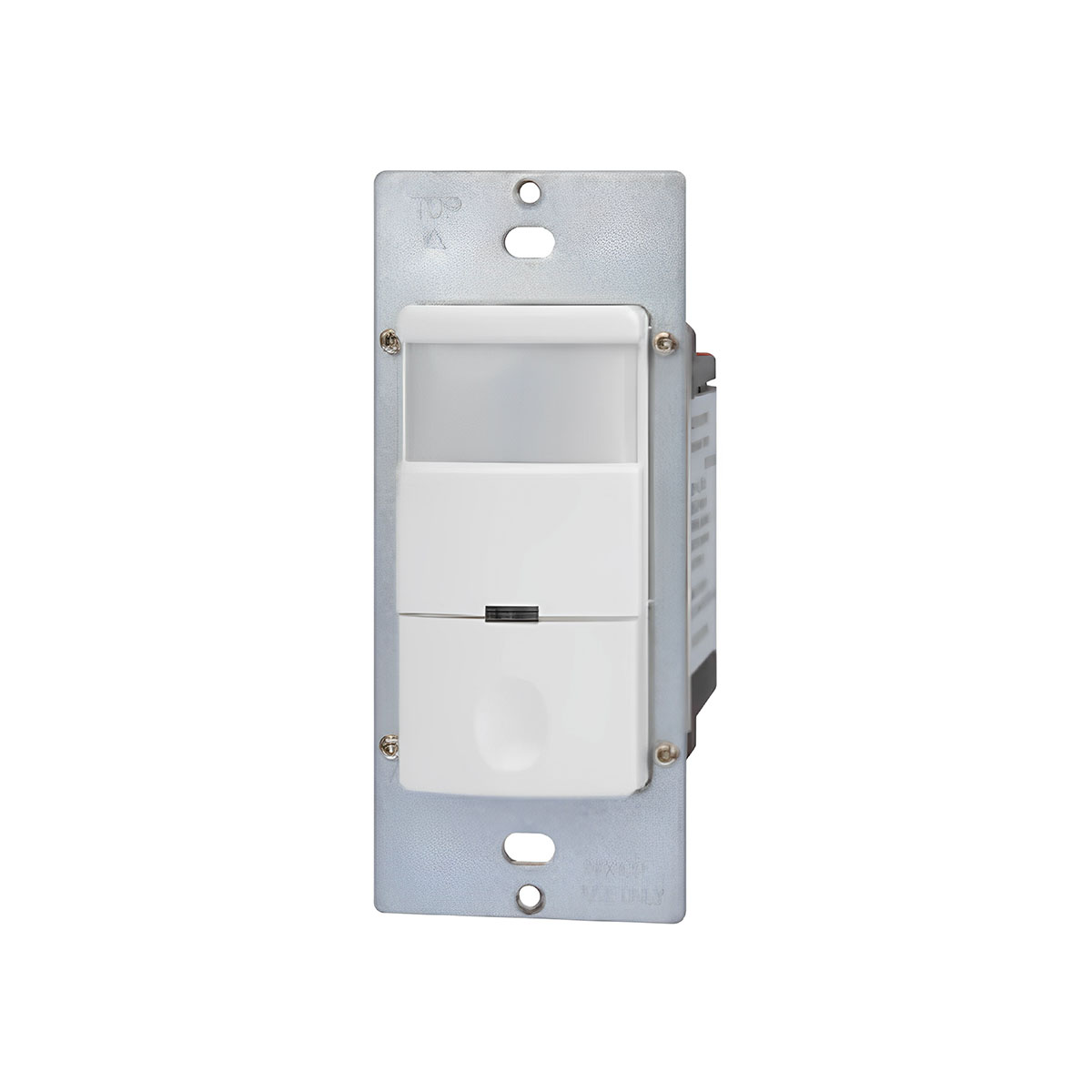

IWS102 Series

Features & Benefits

The IWS102 Series utilizes Passive Infrared (PIR) technology to reliably detect human motion by sensing changes in heat signatures relative to the background. Upon detecting motion, the sensor switch automatically turns the load ON. The load remains active during occupancy and automatically turns OFF after a configurable time delay when no further motion is detected. The unit features an integrated relay and an ambient light level sensor for daylight hold-off functionality, ensuring the lighting load remains OFF if the ambient light level exceeds the configured threshold. A 4-button Bluetooth® control interface provides intuitive manual control with Dim Up, Dim Down, ON, and OFF functions.

• 120–277 V universal voltage
• Occupancy/Vacancy operation (2-in-1)
• Integrated PIR sensor
• Integrated photo sensor with daylight hold-off function
• Single relay output
• Bluetooth® 5.0 connectivity

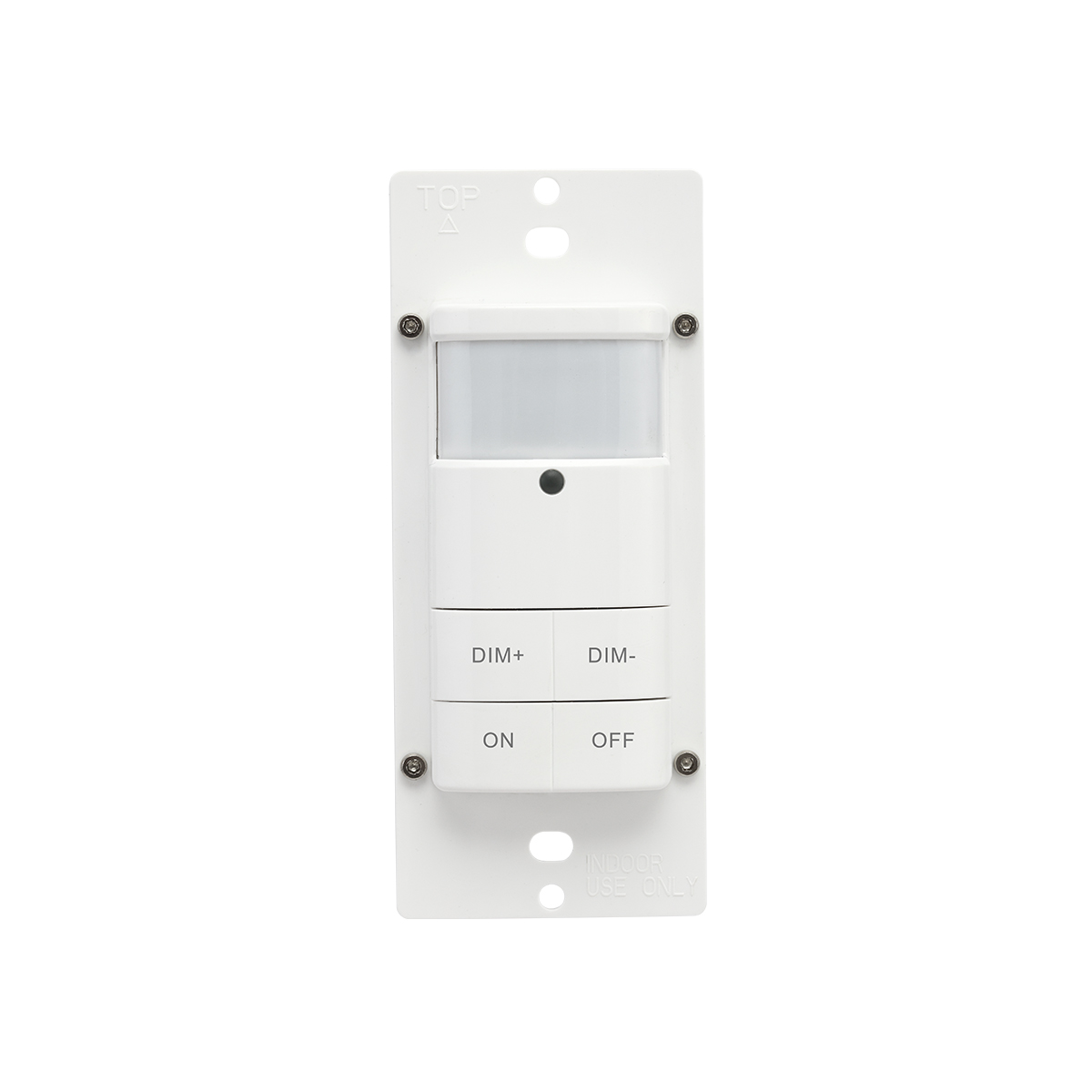

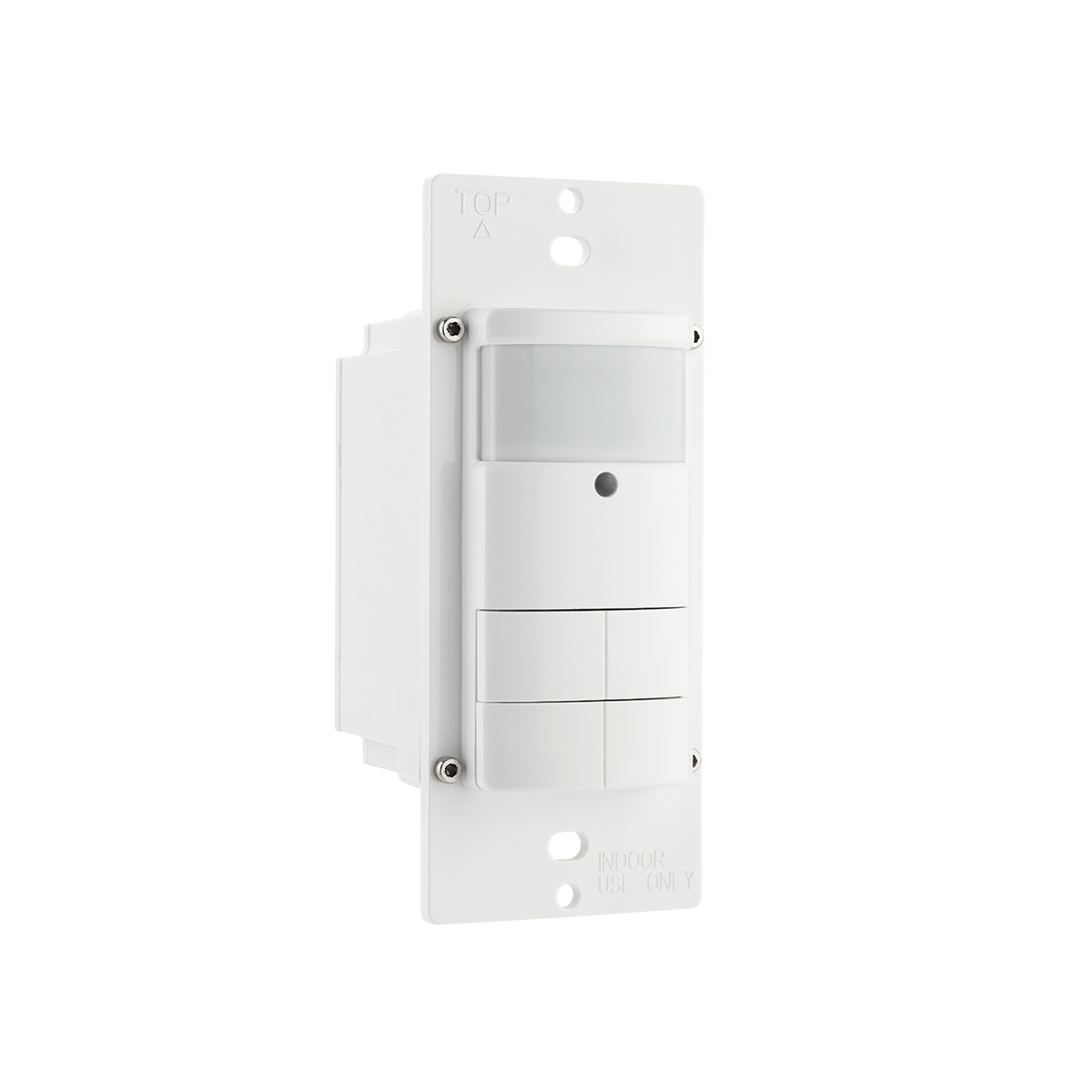

IWS102.B1 Only:

• 4-button physical control interface (Dim Up, Dim Down, ON, OFF)
• Dimming buttons control associated lights within the same Bluetooth group

Note: The IWS102.B1 does not provide 0-10V dimming connections.
