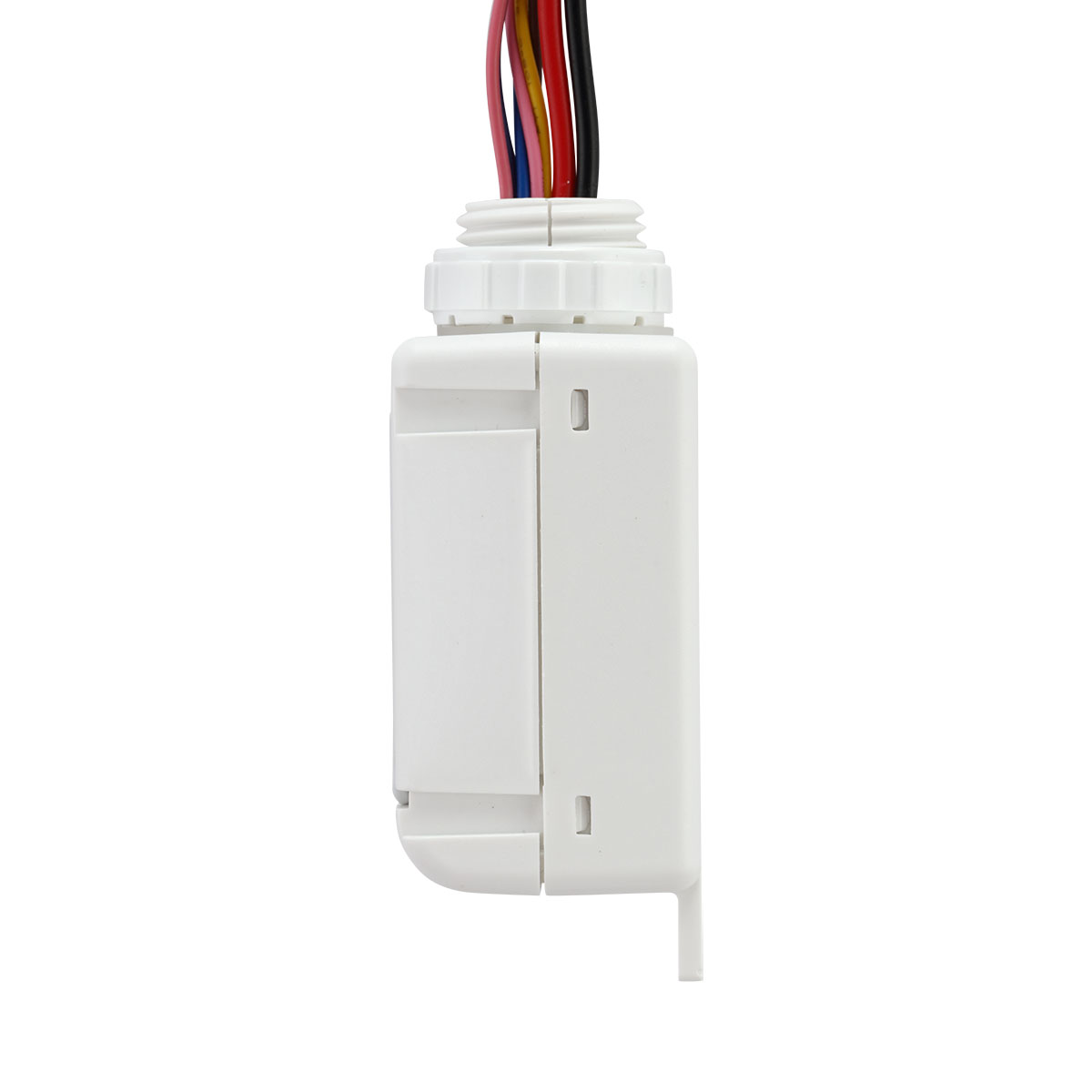

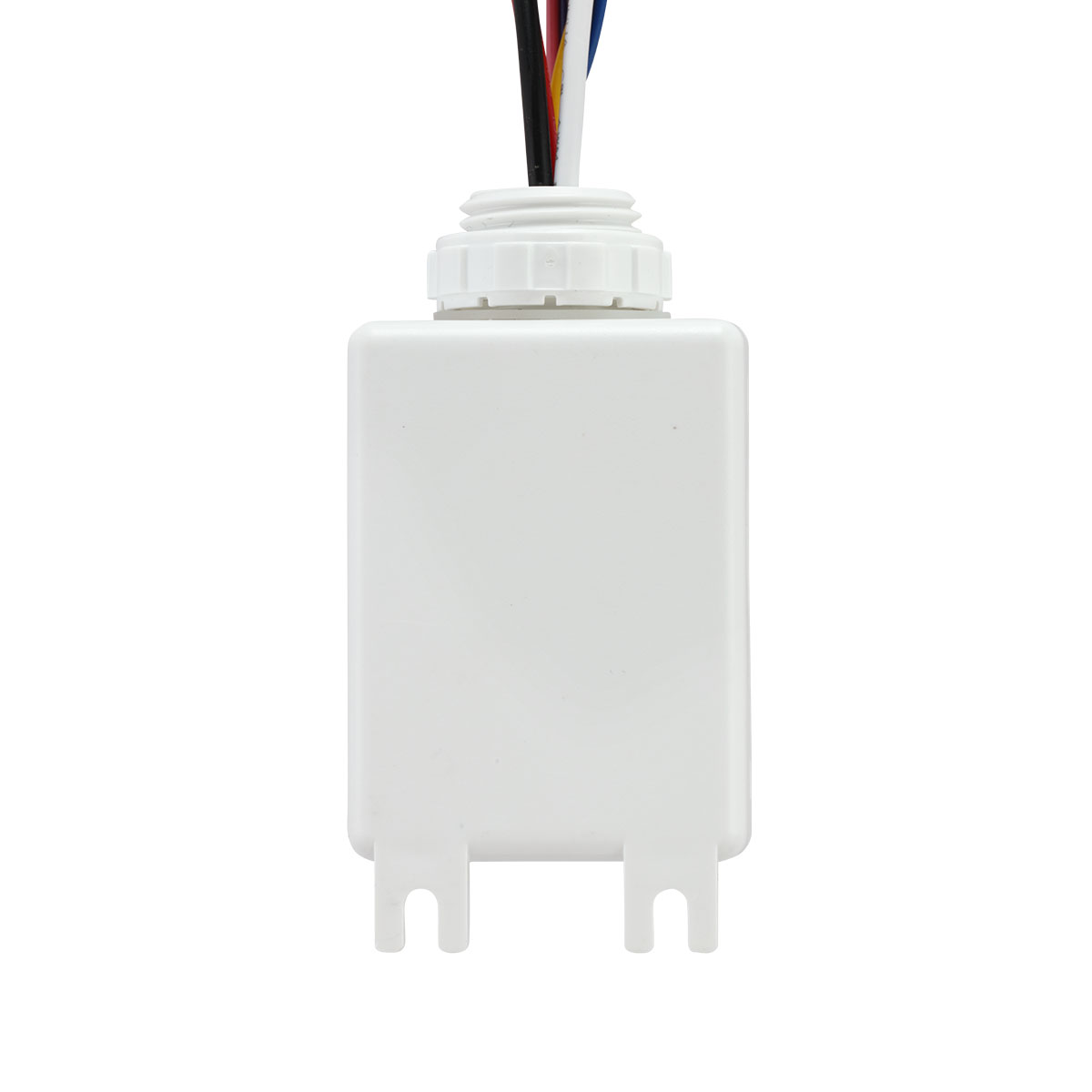

Line Voltage 6A BT Fixture Controller
Features & Benefits
PPA102S Bluetooth Fixture Controller is network based device of Keilton lighting system, enables to manage and operate the luminaires through smartphone app. It provides 0-10V Single/Dual output and 10A relay control for luminaires. It could be also equipped Keilton Eco-Sensor family product by plugging the sensor wire connector and activating the sensor ready function.
- 120-277VAC Input
- Integrated 6A relay
- Offers 12V, 200mA output power to sensors
- Attaches with standard 1/2″ knockout
- Provides 0-10VDC single channel output
Applications
- Retrofit of one or more commercial luminaires for Bluetooth control
- Low voltage power to Eco-Sensors
Specifications
Part Number
PPA102S.B1
Component Type
controller
Technology
bluetooth-v5-0
Radio Frequency
2.4G Hz
Transmission Range
200ft
Input Voltage
120-277v
Aux Voltage
12v
Control Output
relay, single-0-10v
Dimmability
0-10v
Color Offering
white
Application
indoor
Warranty
5 year limited warranty
Certification
fcc, ce-compliant, culus-listed, dlc-listed, plenum-rated, rohs, ul1376-gold
