Line Voltage 6A BLE Fixture Controller
Features & Benefits

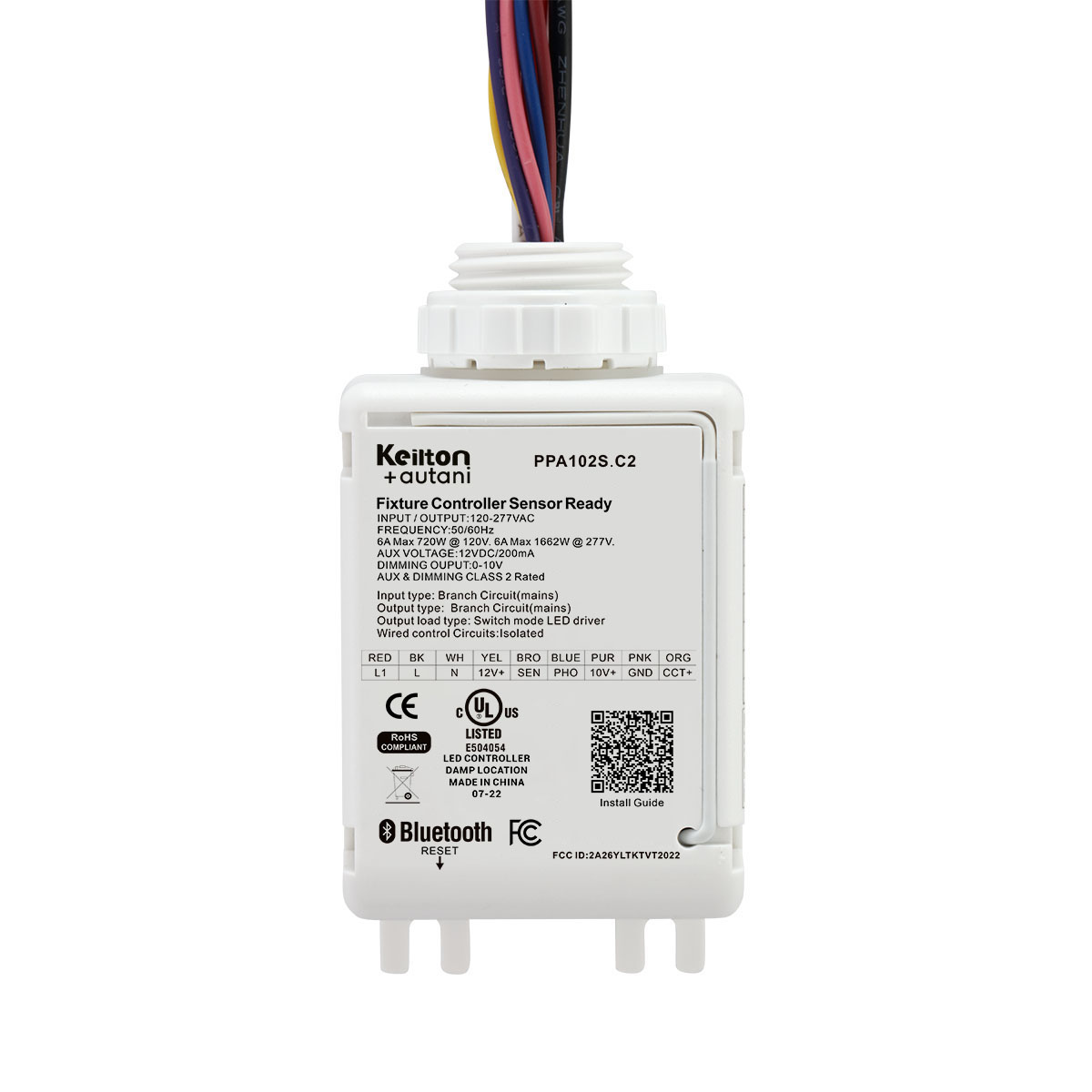

PPA102S Bluetooth Fixture Controller is network based device of Keilton lighting system, enables to manage and operate the luminaires through smartphone app. It provides 0-10V Single/Dual output and 10A relay control for luminaires. It could be also equipped Keilton Eco-Sensor family product by plugging the sensor wire connector and activating the sensor ready function.
- 120-277VAC Input
- Integrated 6A relay
- Offers 12V, 200mA output power to sensors
- Attaches with standard 1/2″ knockout
- Provides 0-10VDC dual channel output
Applications
- Retrofit of one or more commercial luminaires for Bluetooth control
- Low voltage power to Eco-Sensors
Specifications
Part Number
PPA102S.C2
Component Type
Controller
Technology
Bluetooth v5.0
Radio Frequency
2.4G Hz
Transmission Range
200FT
Input Voltage
120–277V
Aux Voltage
12V
Control Output
Dual 0–10V, Relay
Dimmability
0–10V
Color Offering
White
Application
Indoor
Warranty
5 year limited warranty
Certification
FCC Compliant, CE Compliant, cULus Listed, DLC Listed, Plenum Rated, RoHS Compliant, UL 1376 Gold
