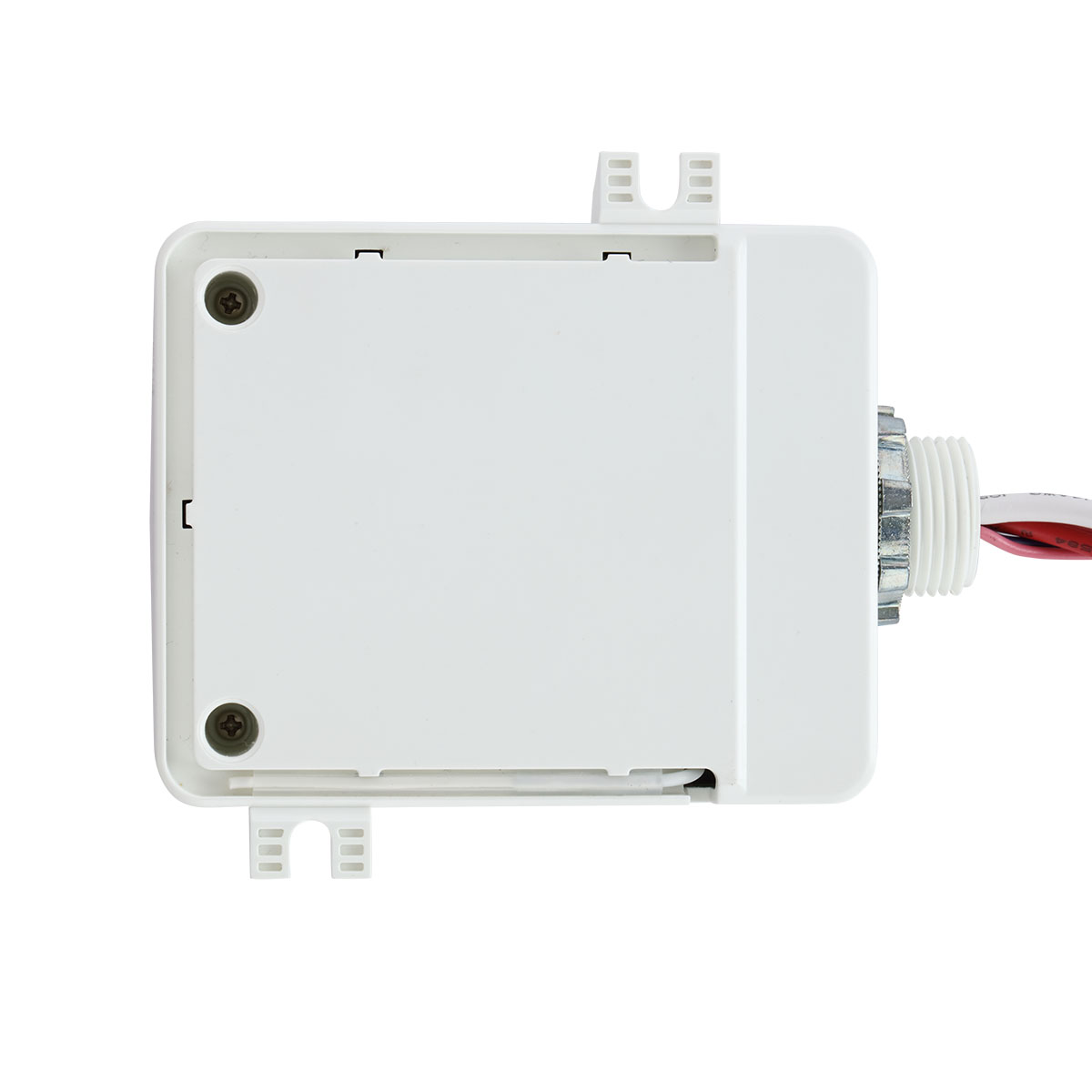

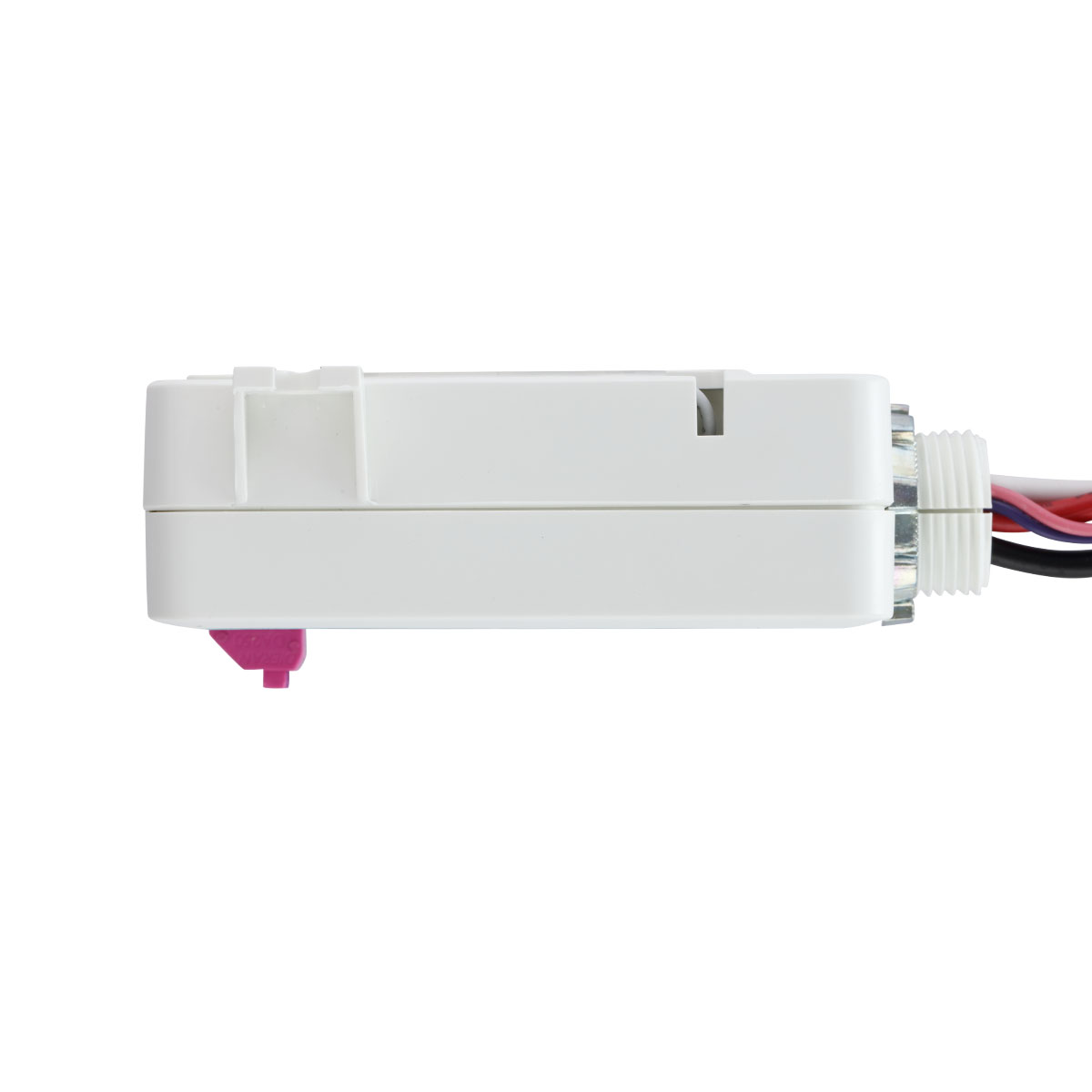

PPA104S.B1

Line Voltage 20A BT Zone Controller

Product Documents

Features & Benefits

  • 120-277VAC Input
  • Integrated 20A relay
  • Output power up to 2,400W(120VAC), 5,540W(277VAC)
  • UL Plenum Rated
  • 1 HP motor load rated

Specifications

Part Number

PPA104S.B1

aaa

aaa

Component type

Controller

bbb

bbb

Operating Temp

'-30 to 55°C (-22°F to 131°F)

Technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

Range

200ft

Input voltage

120-277V, 120V

Aux voltage

12V

Control

Relay, Single 0-10V

Dimmability

0-10V

Ip rating

IP20

Color offering

White

Mounting options

Fixture KO, Junction Box

Mouting height

N/A

Sensor type

Eco Sensor Port

Warranty

5 year limited warranty

Certification

TAA-Compliant, CE compliant, cULus Listed, DLC listed, FCC, Plenum Rated, RoHs, UL1376 Gold
